Pixar SuperV Electric Bike 500W | Long Range Fat Tire E-Bike with Dual Battery Options

Pixar SuperV Electric Bike is built for power, endurance, and comfort. With a 48V500W high-speed motor, dual battery choices (15.6Ah or 30Ah), and rugged 20×4” fat tires, this e-bike is your ultimate companion for city commutes, outdoor adventures, and daily errands.

$1,383

Leave us a short message for more details, and we’ll get back to you within 1 business day. We provide OEM & ODM services for this bike.

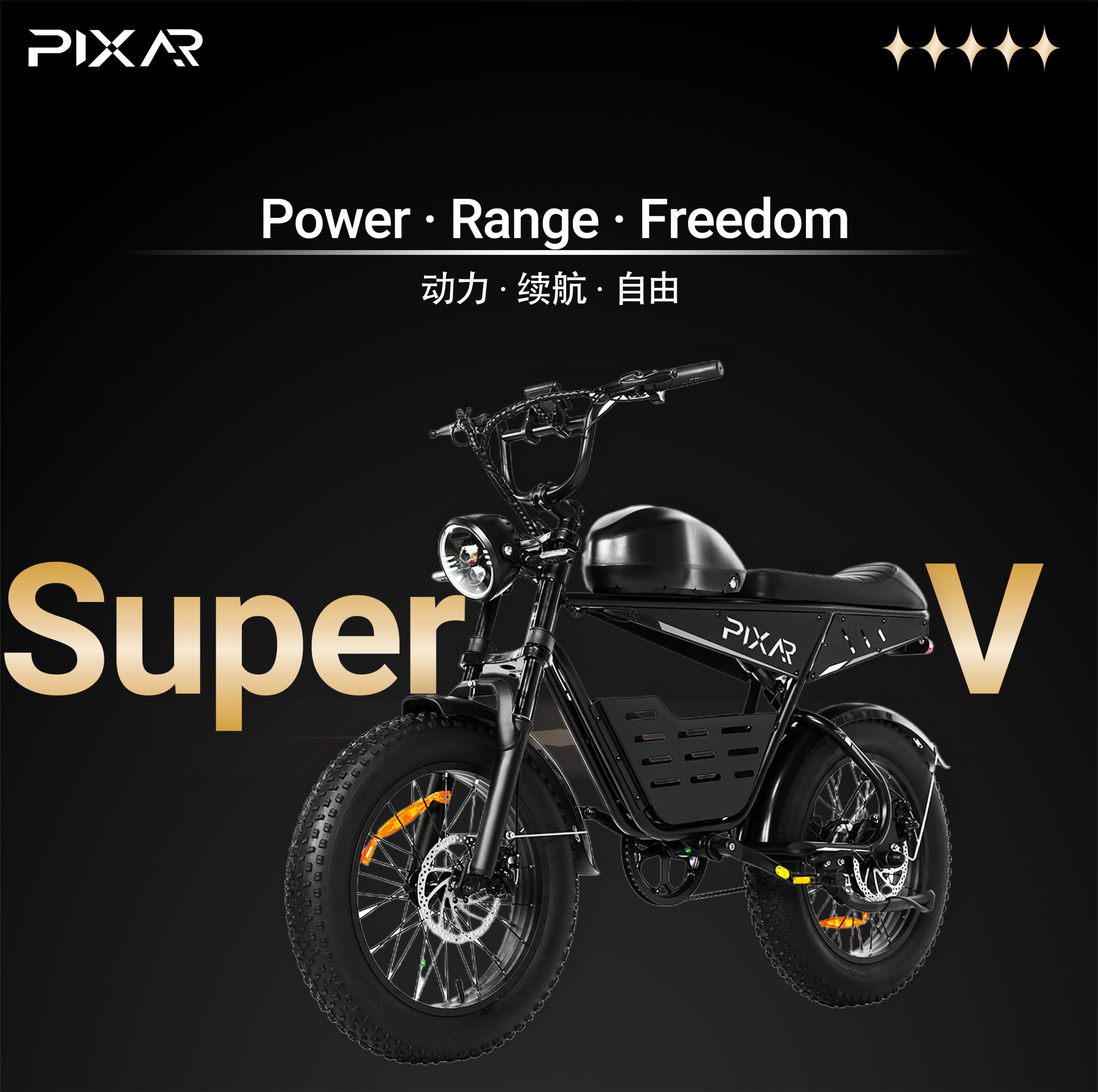

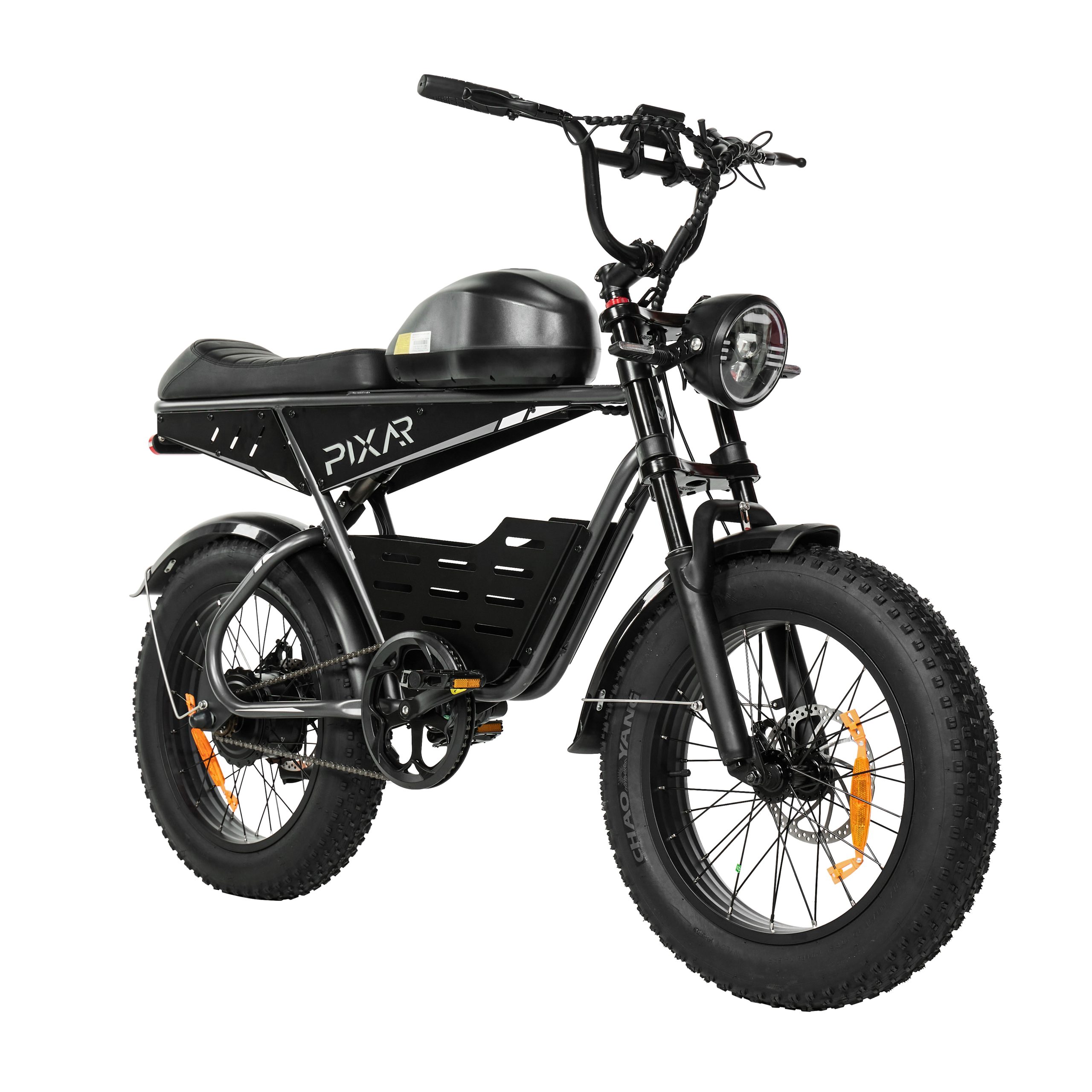

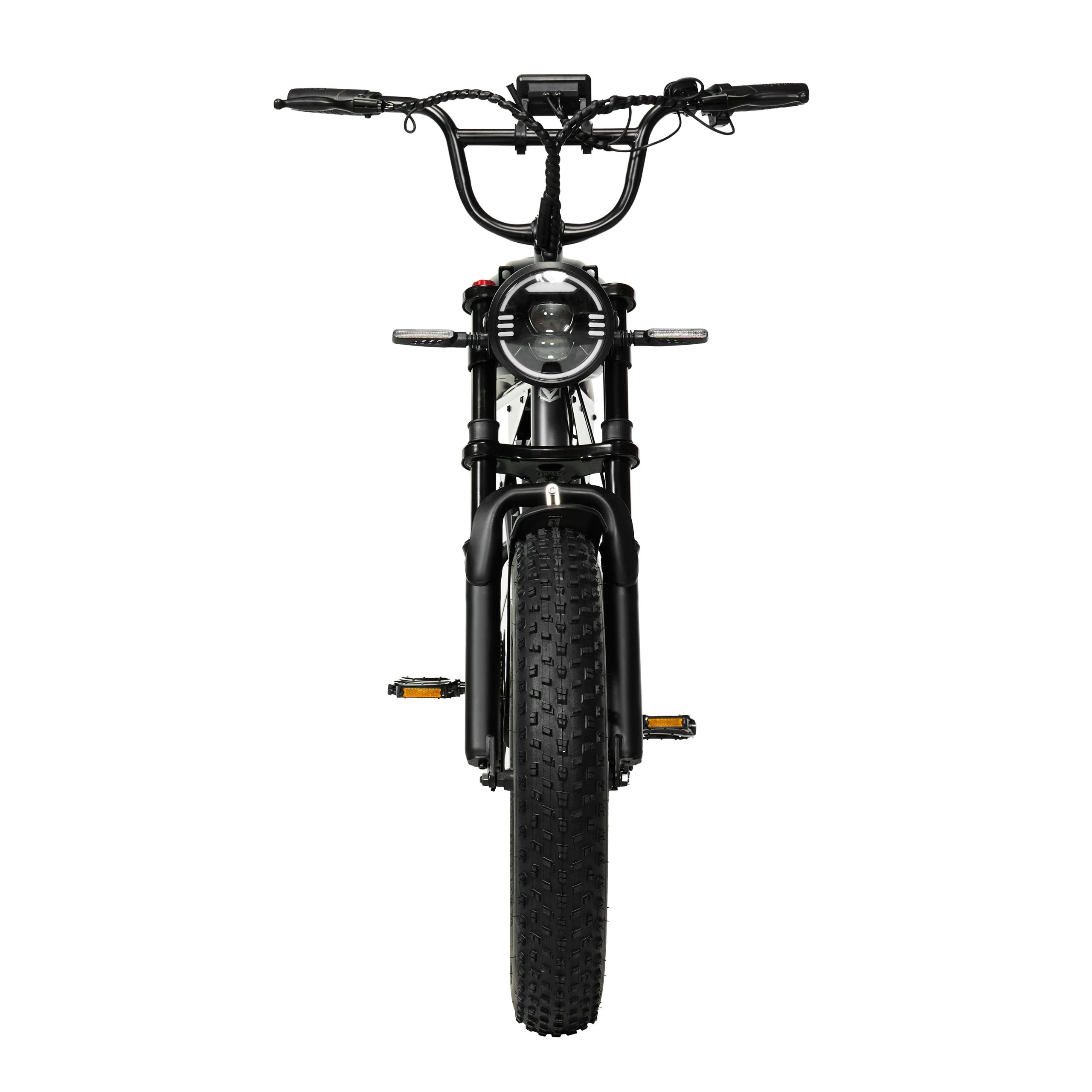

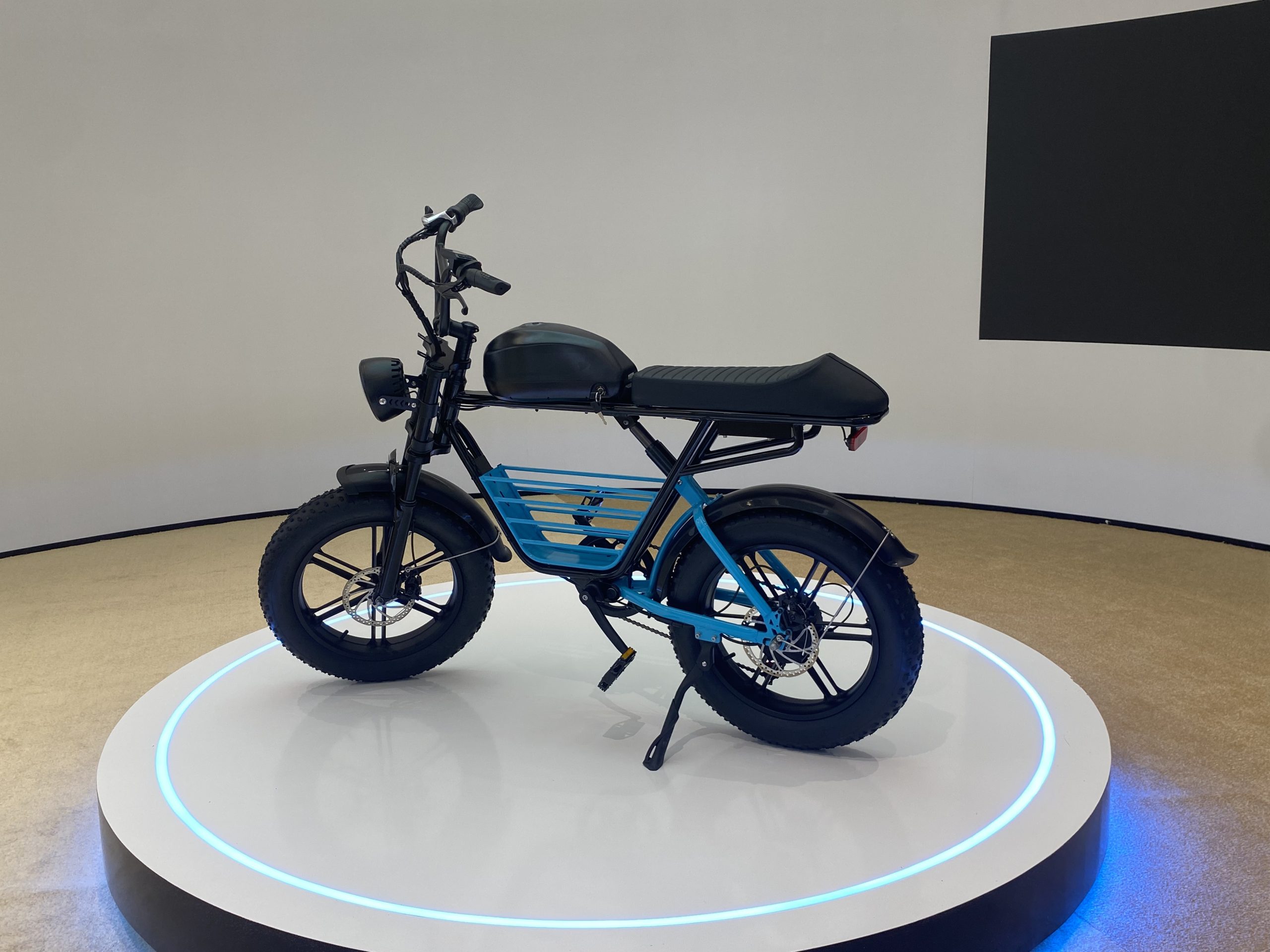

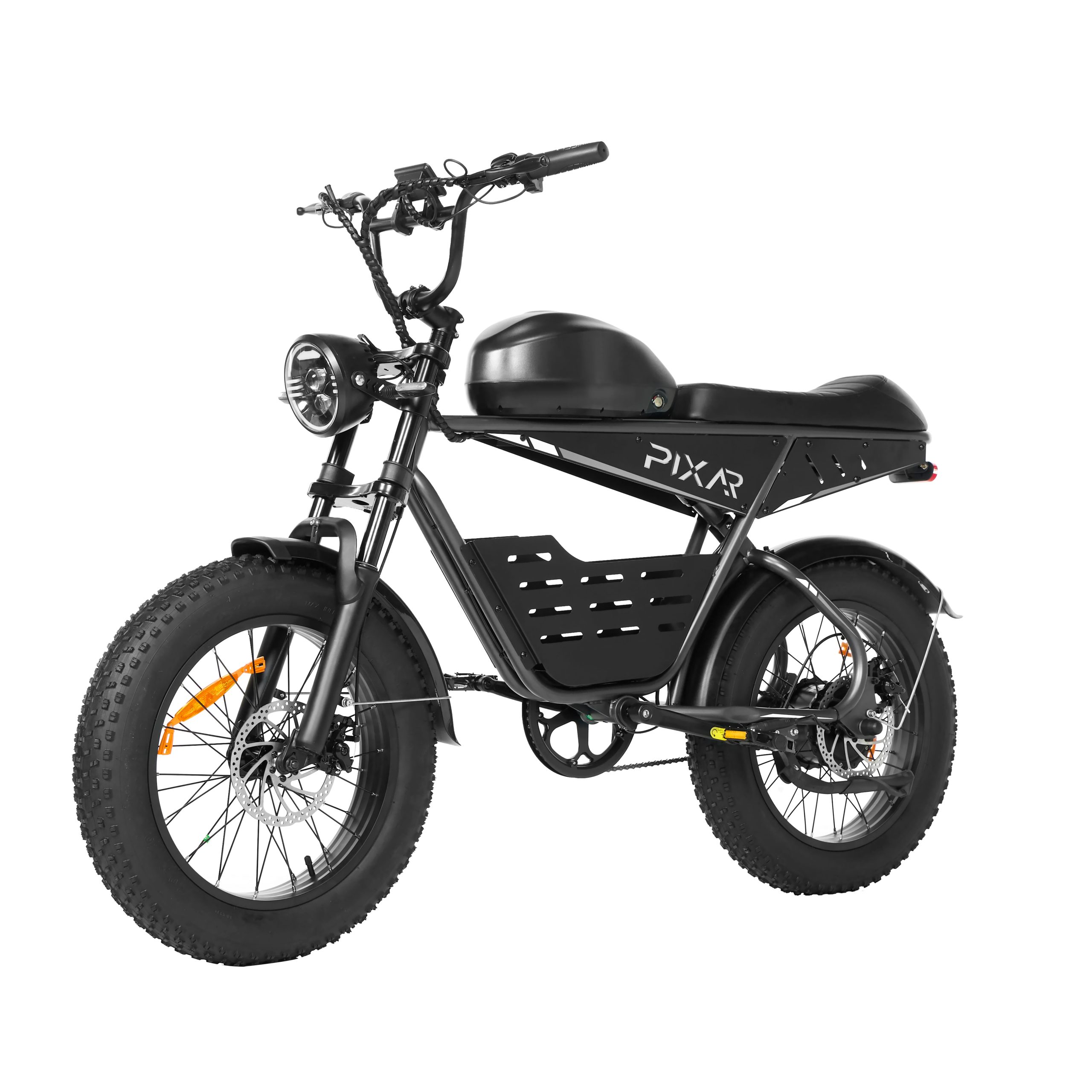

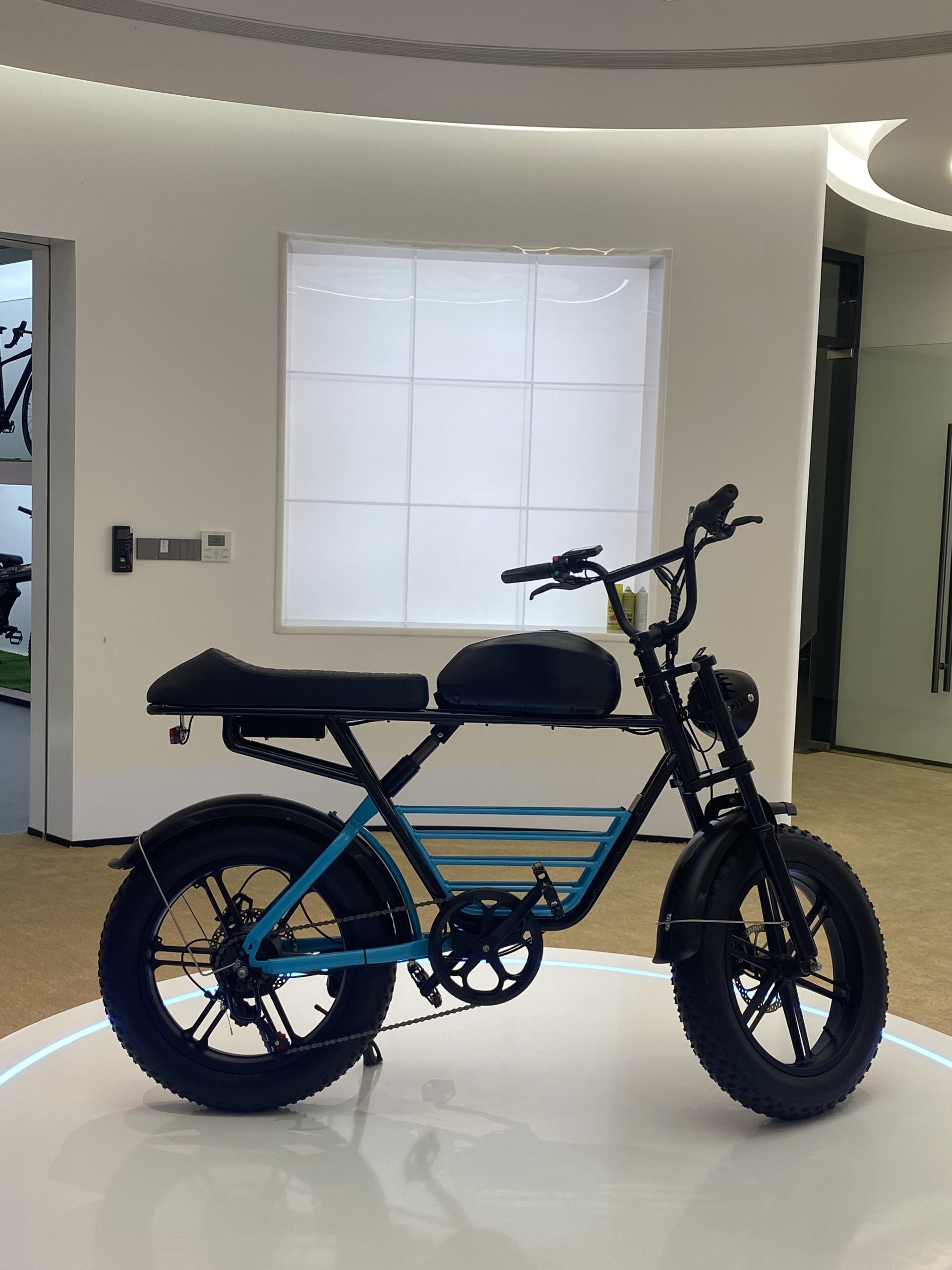

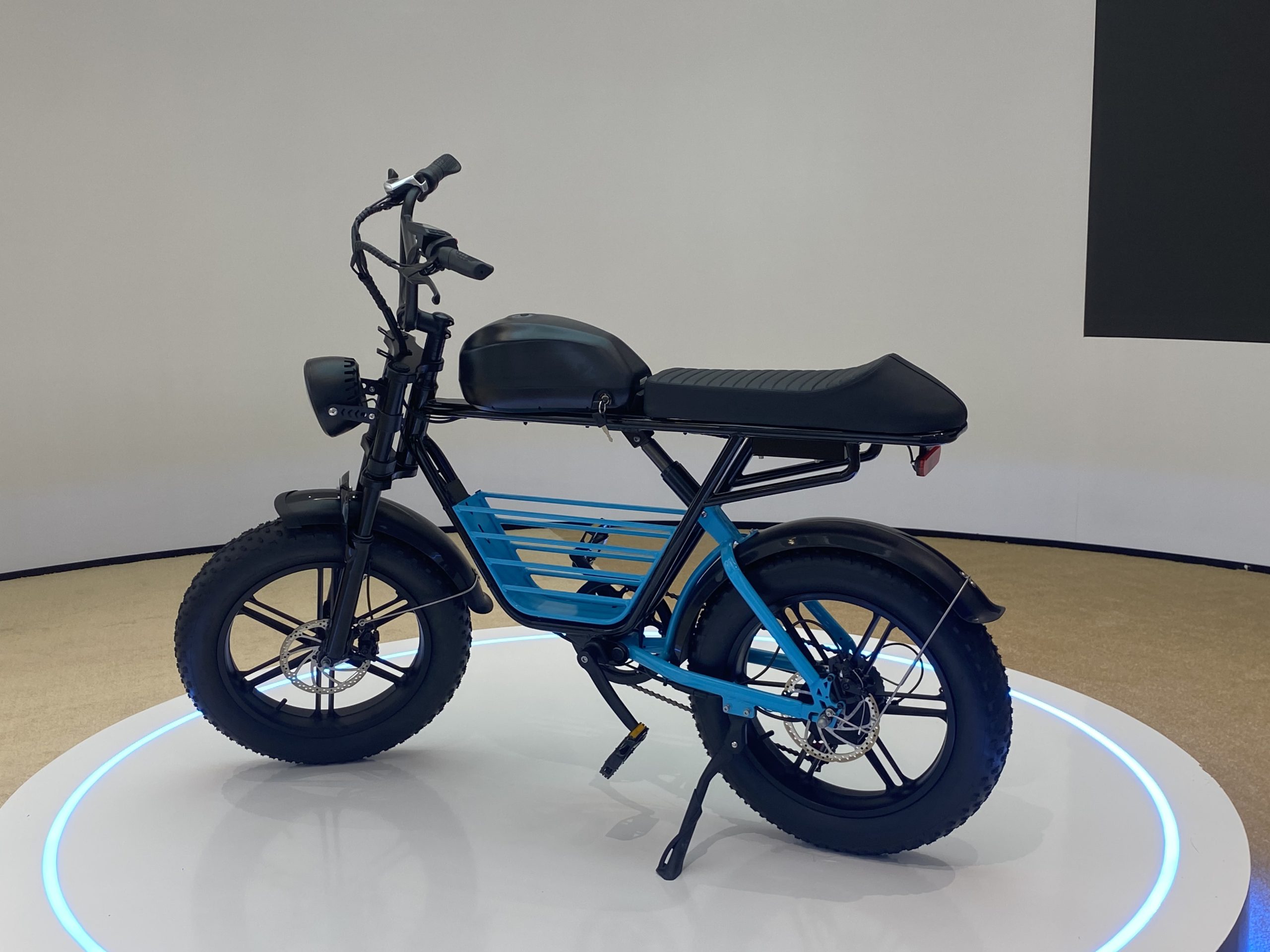

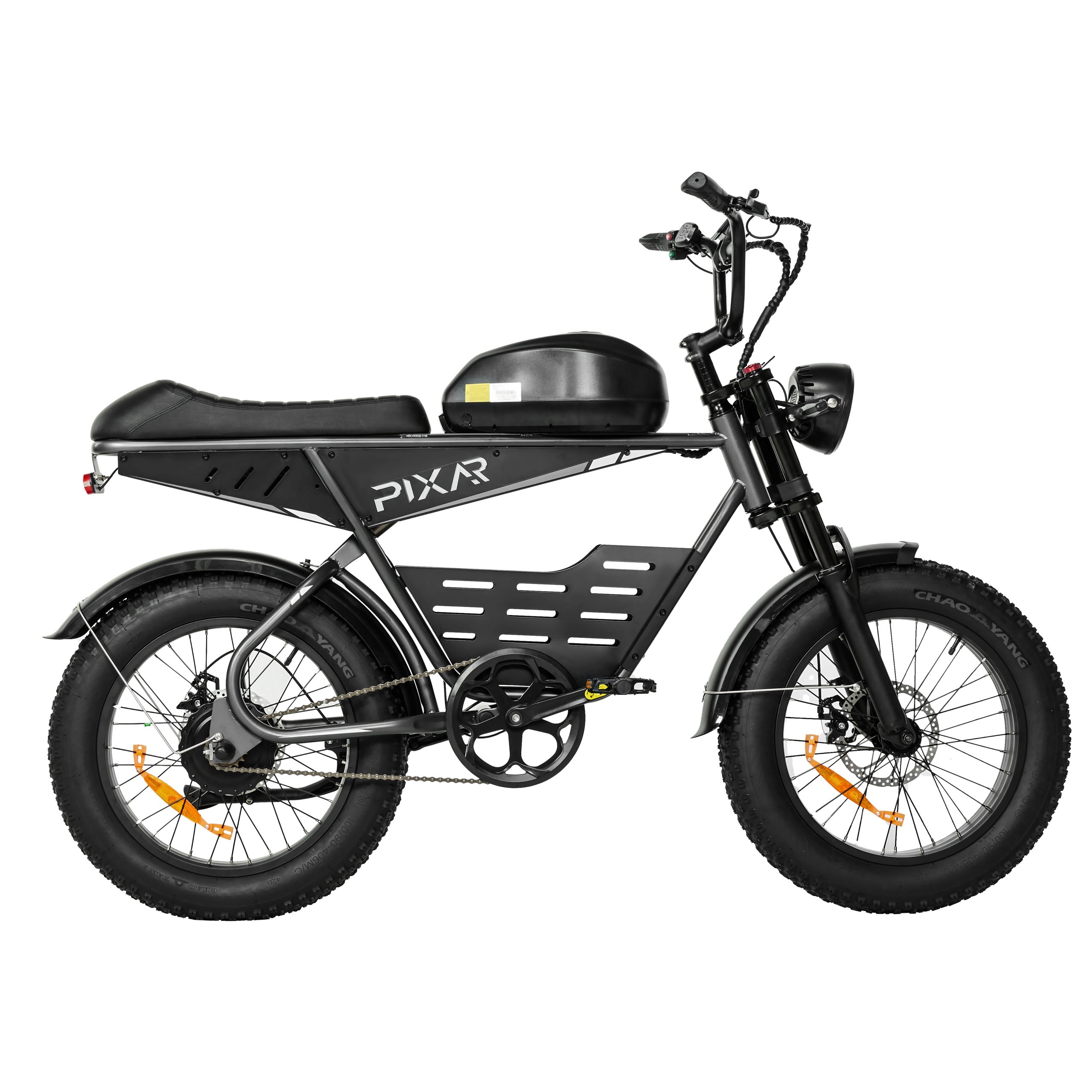

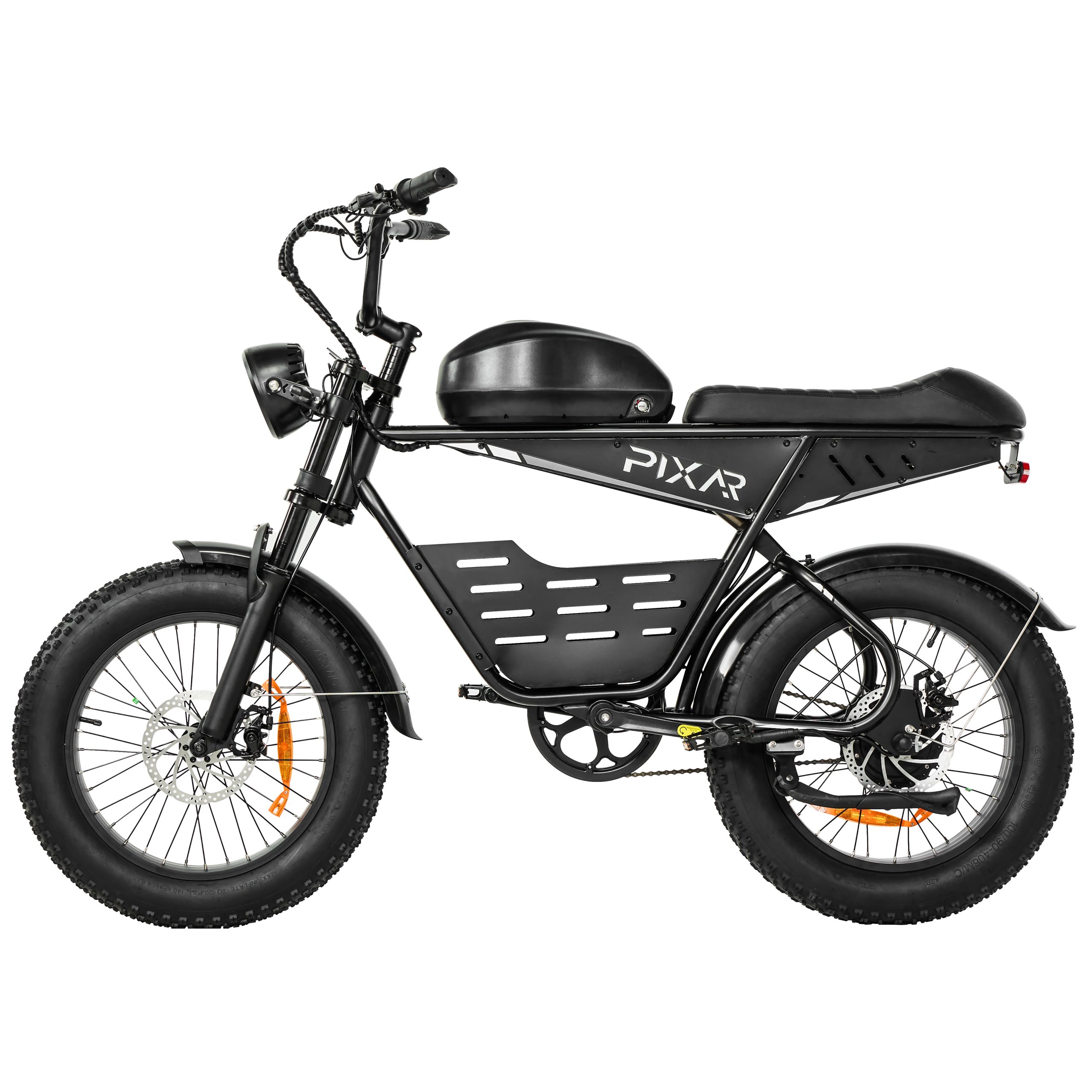

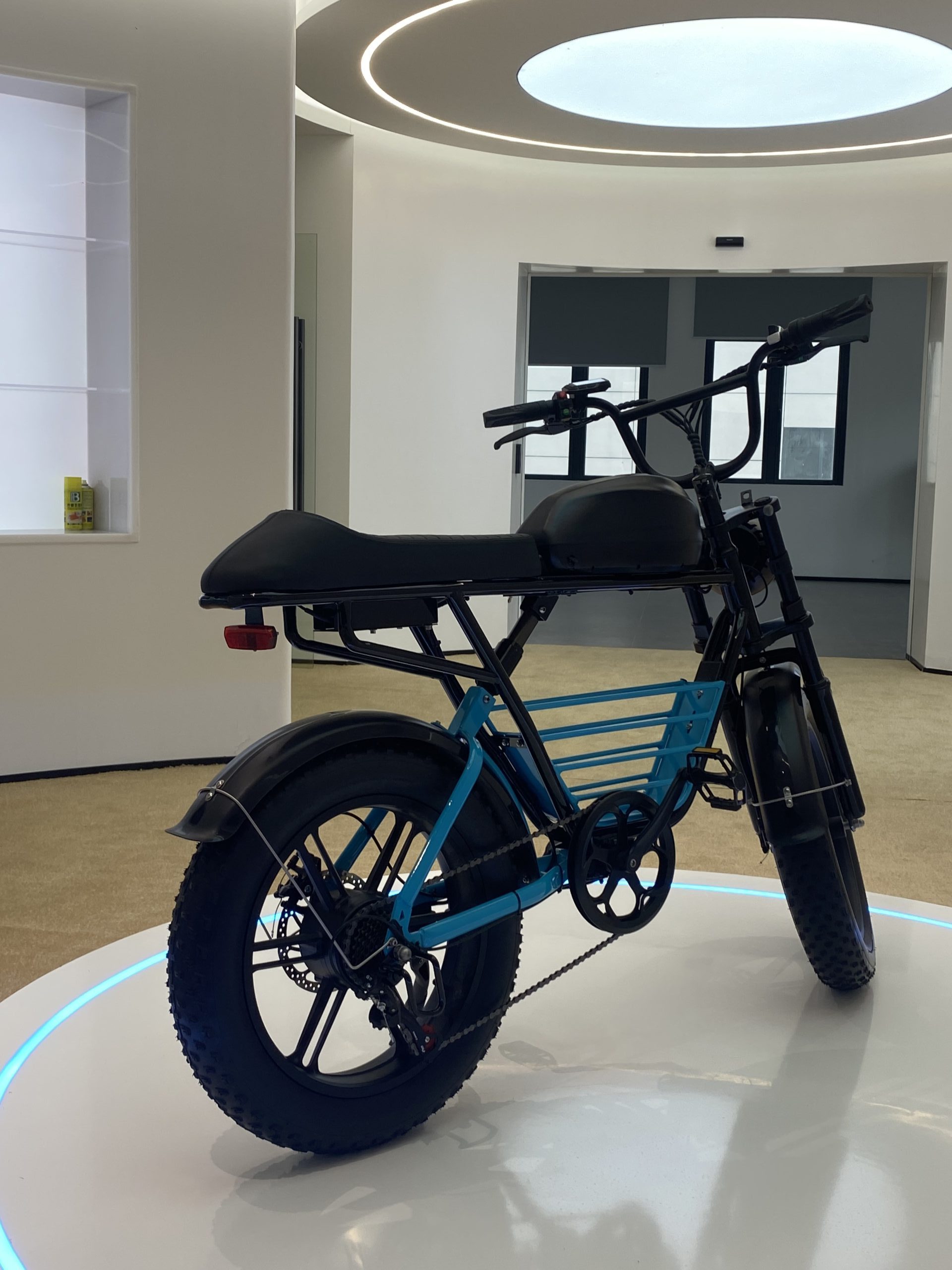

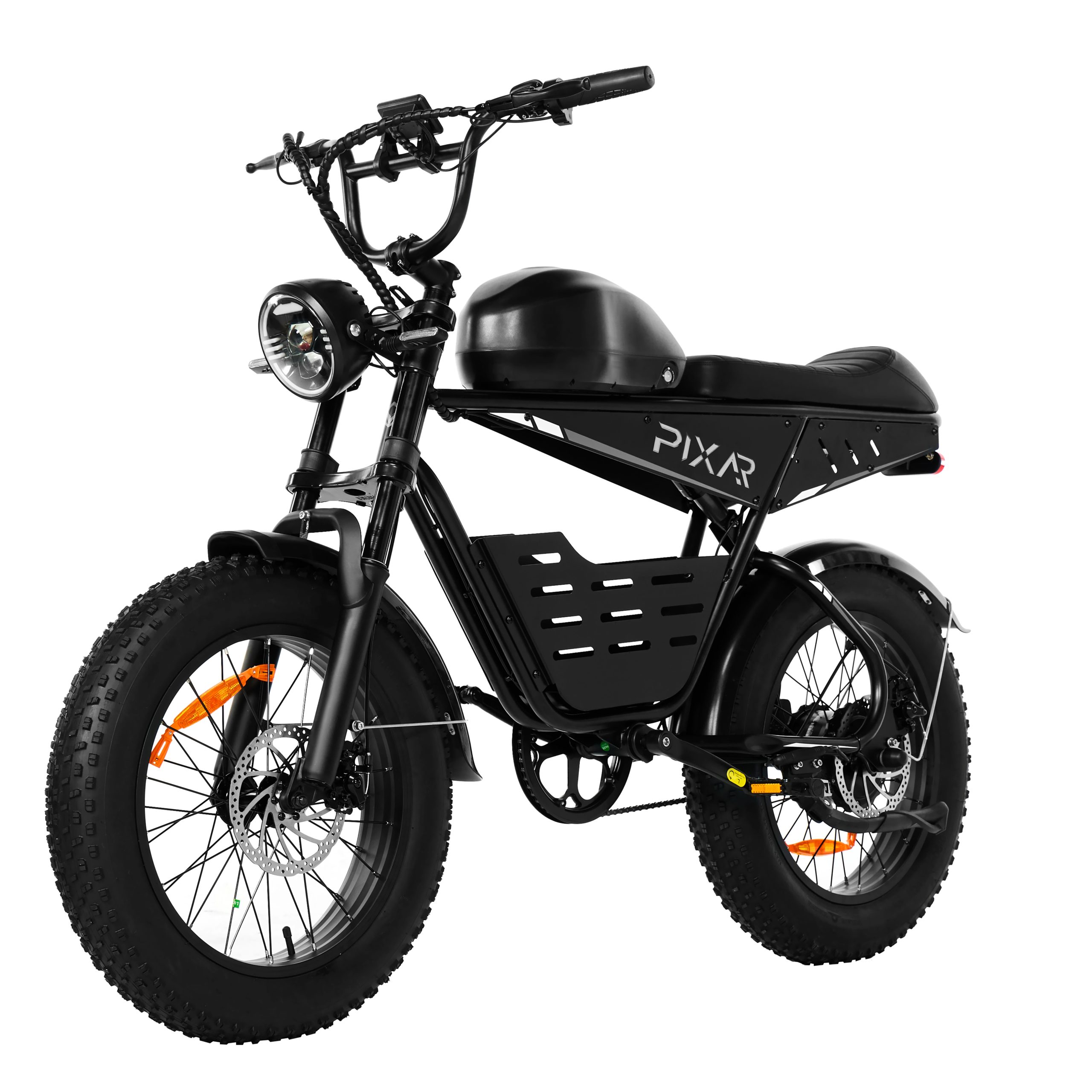

    Pixar SuperV Electric Bike is a premium moped-style e-bike that blends power, comfort, and practicality for both city commuting and long-distance adventures. Built with a strong steel alloy frame and equipped with a 48V 500W rear hub motor, it delivers reliable acceleration and smooth performance across various terrains. Whether you’re riding through busy streets or exploring light trails, the SuperV ensures a stable, comfortable, and confident experience.

    Choose between two battery options to suit your lifestyle — a 15.6Ah battery for daily rides up to 60 km, or a 30Ah battery for extended journeys reaching 120 km. Its dual-shoulder suspension fork and 20×4” Chaoyang fat tires provide excellent shock absorption and grip, ensuring stability even on rough roads. Designed for convenience, it includes a built-in middle basket, electronic horn, front and rear fenders, and bright LED lighting for enhanced visibility and safety.

    With a payload capacity of 120 kg and an IP54 waterproof rating, the SuperV is ready for all-weather conditions. Assembly is simple with the included toolkit and multilingual manual, making it easy to get started right away.

    Why Choose the Pixar SuperV?

    • Powerful 500W Motor – Delivers smooth acceleration and confident hill-climbing up to 15°.
    • Dual Battery Options – 15.6Ah for shorter rides or 30Ah for up to 120 km range.
    • Comfort & Stability – Dual-shoulder suspension fork and 20×4” fat tires absorb bumps with ease.
    • Safety First – Mechanical disc brakes, LED headlight and taillight, and IP54 protection for wet conditions.
    • Durable Steel Frame – Supports up to 120 kg while maintaining balance and strength.

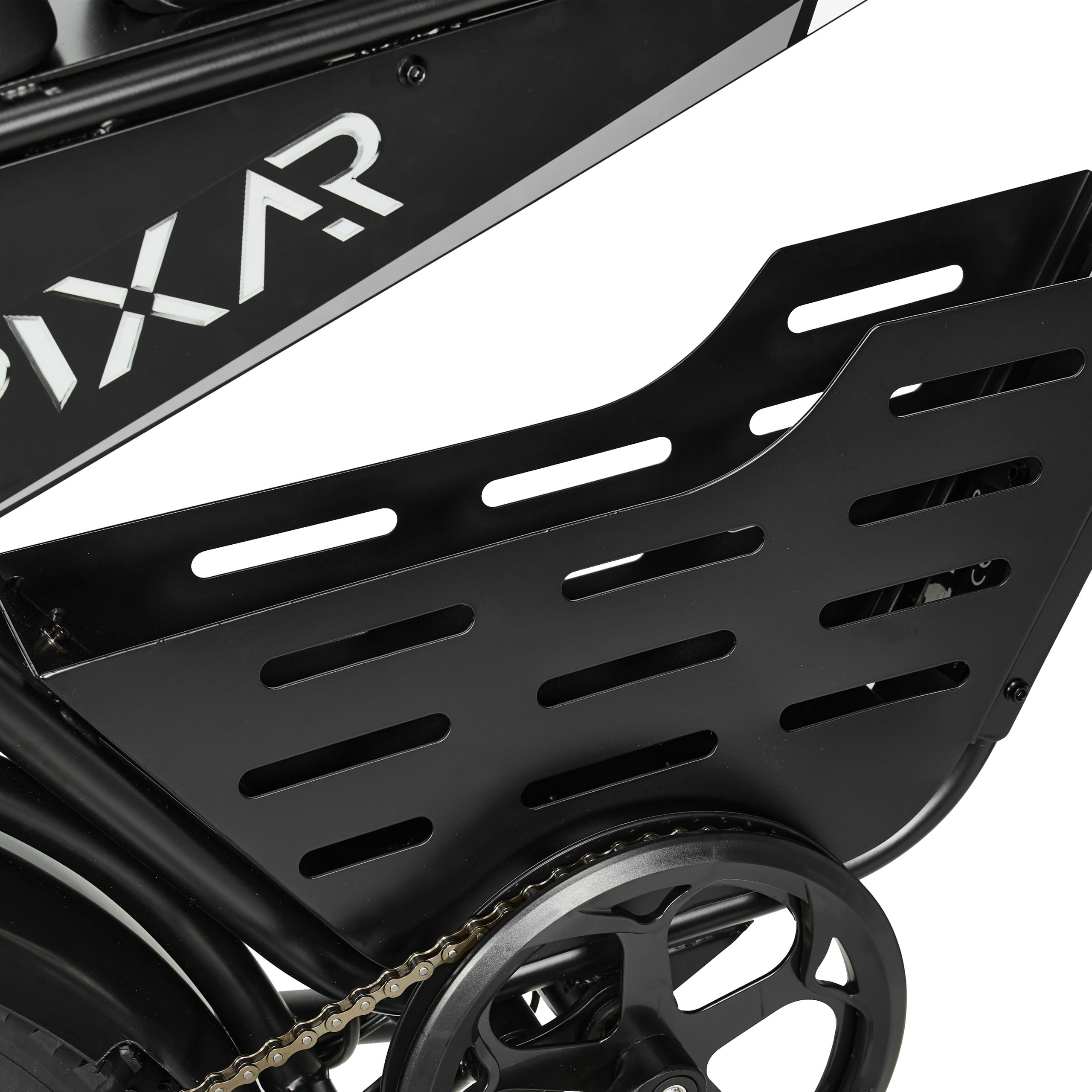

    • Practical Add-ons – Includes middle basket, fenders, horn, and toolkit for everyday convenience.

    Specifications

    Pixar Super E-bike – Product Parameters (European Market)
    / Parameter Value
    General Specifications Range 45–60 km (15.6Ah); 90–120 km (30Ah)
    Top Speed 25 km/h (Pedelec limit, adjustable to 32 km/h)
    Dimensions 175 × 69 × 120 cm (L × W × H)
    Max Load Capacity 120 kg
    Net Weight 46 kg
    Gross Weight 57 kg
    Packing Dimensions 145 × 30 × 94 cm
    Qty for 1×40HQ Container 146 pcs
    Recommended Rider Height 155–190 cm
    Colour Options Black & Grey
    Foldable No
    IP Rating IP54
    Operating Temperature –10°C to +45°C
    Bike Category Moped-Style / Retro Cruiser

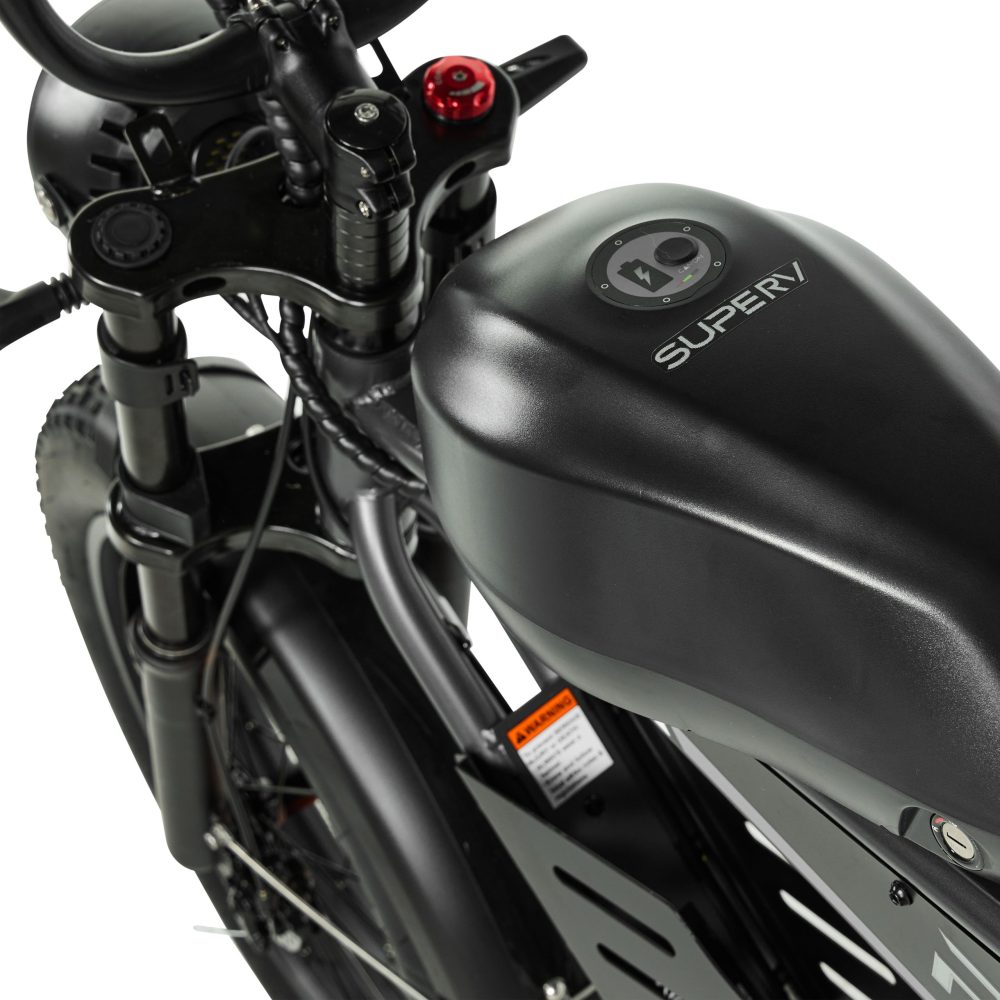

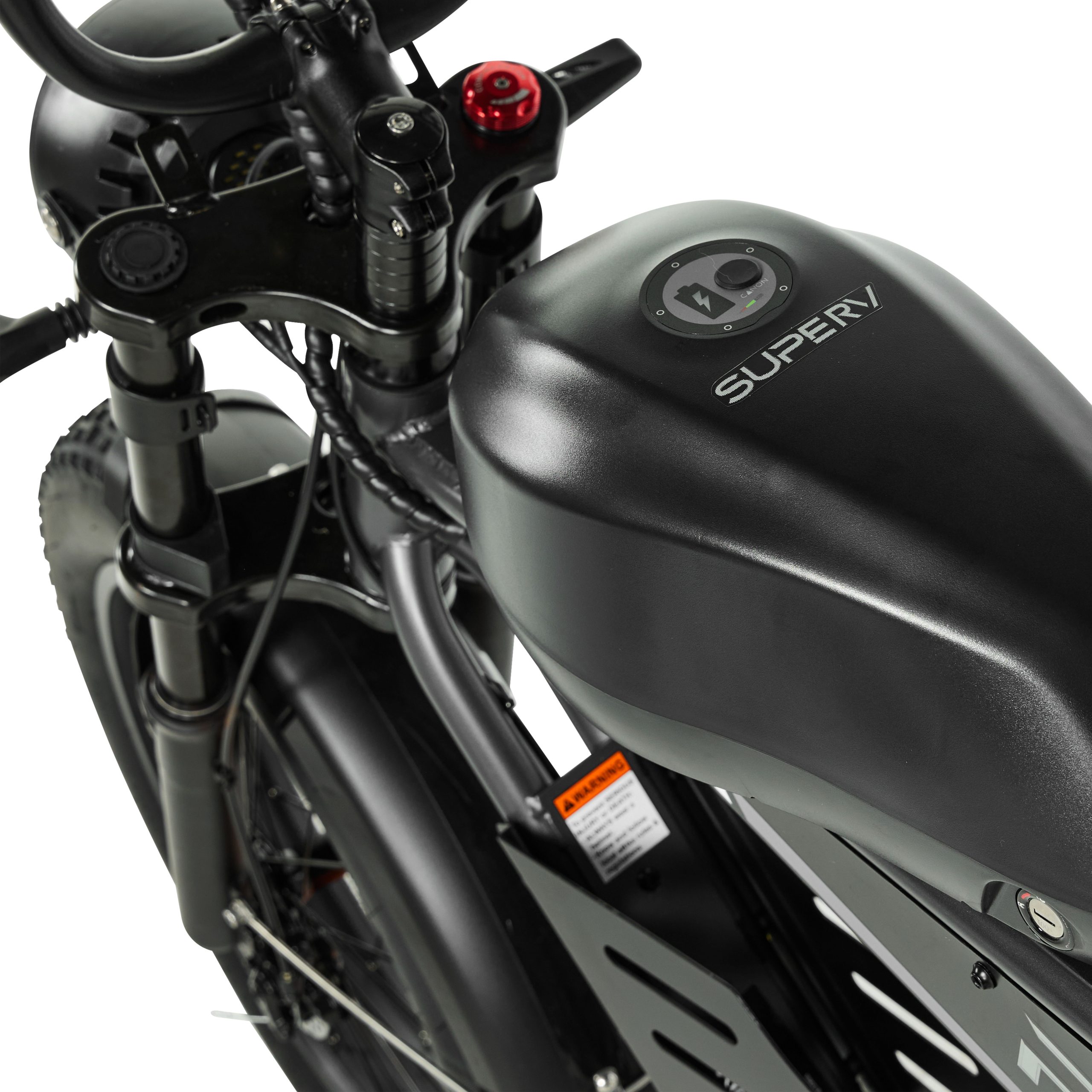

    Battery System Battery Capacity & Type 48V15.6Ah & 48V30Ah Lithium-ion (EVE cells)
    Battery Weight 3 kg

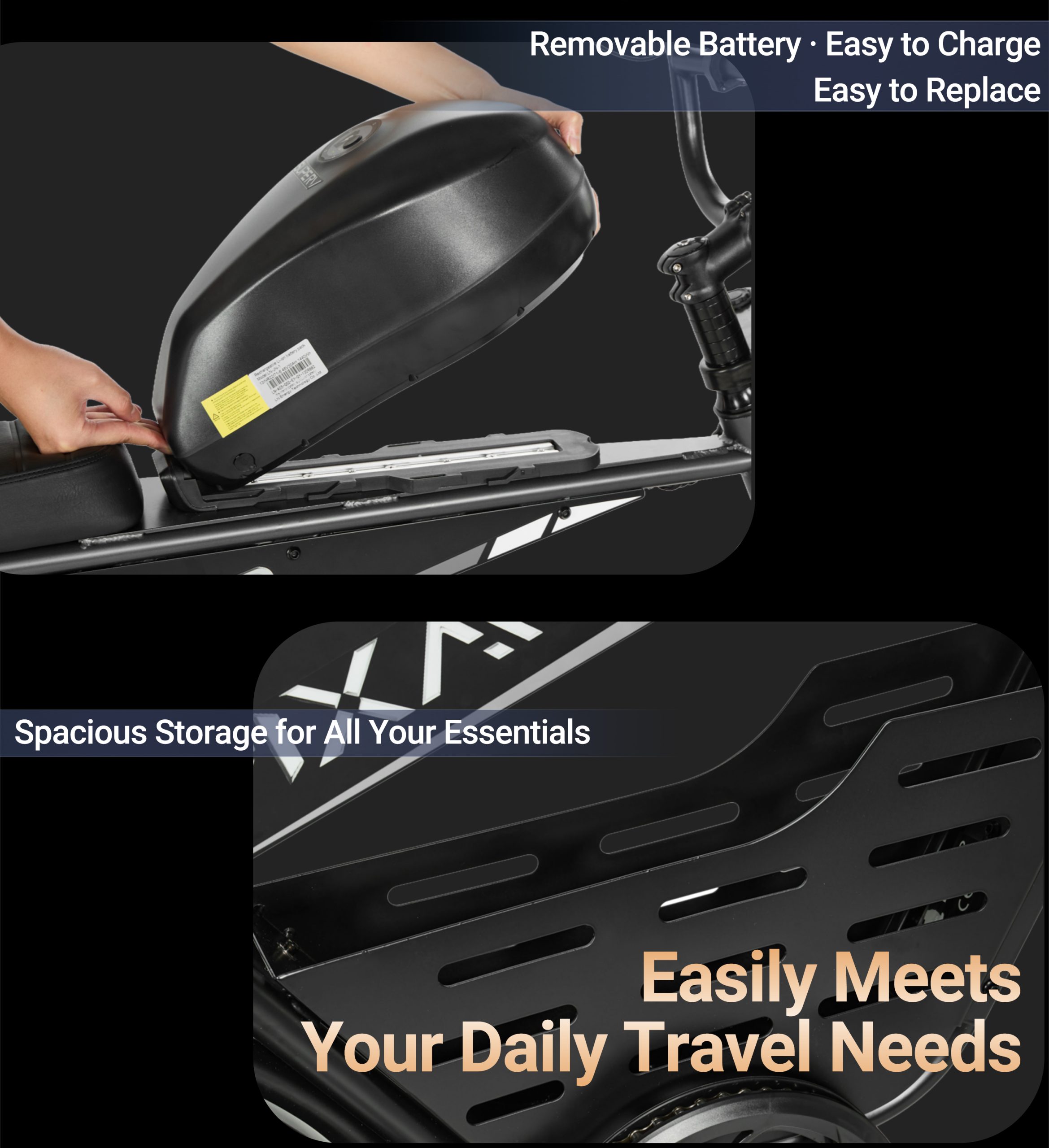

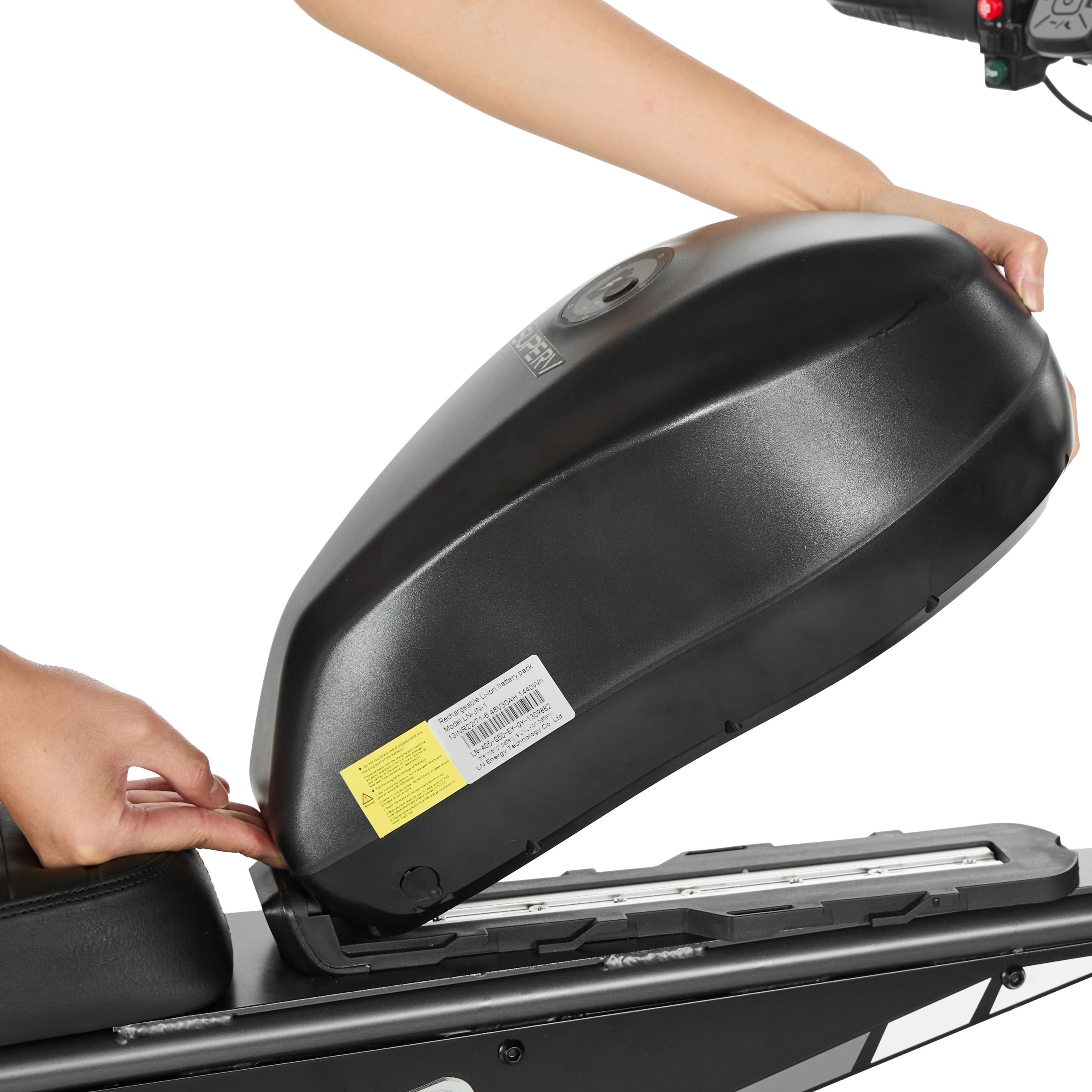

    Removable Battery Yes
    Battery IP Rating IP65
    Battery Certification EN 62133 compliant
    Charging Time 7.8–15.6 h
    Charger 54.6V 2A smart charger

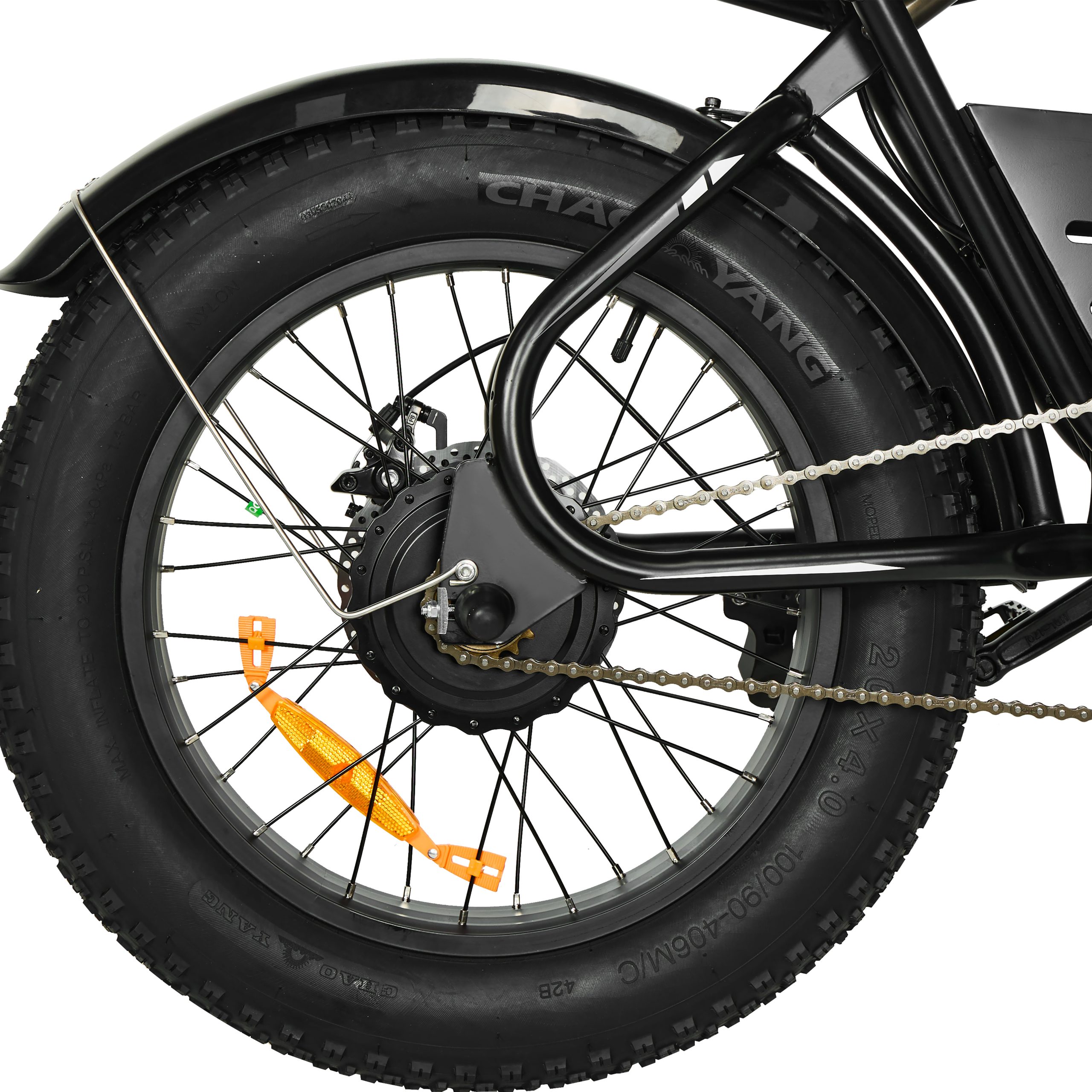

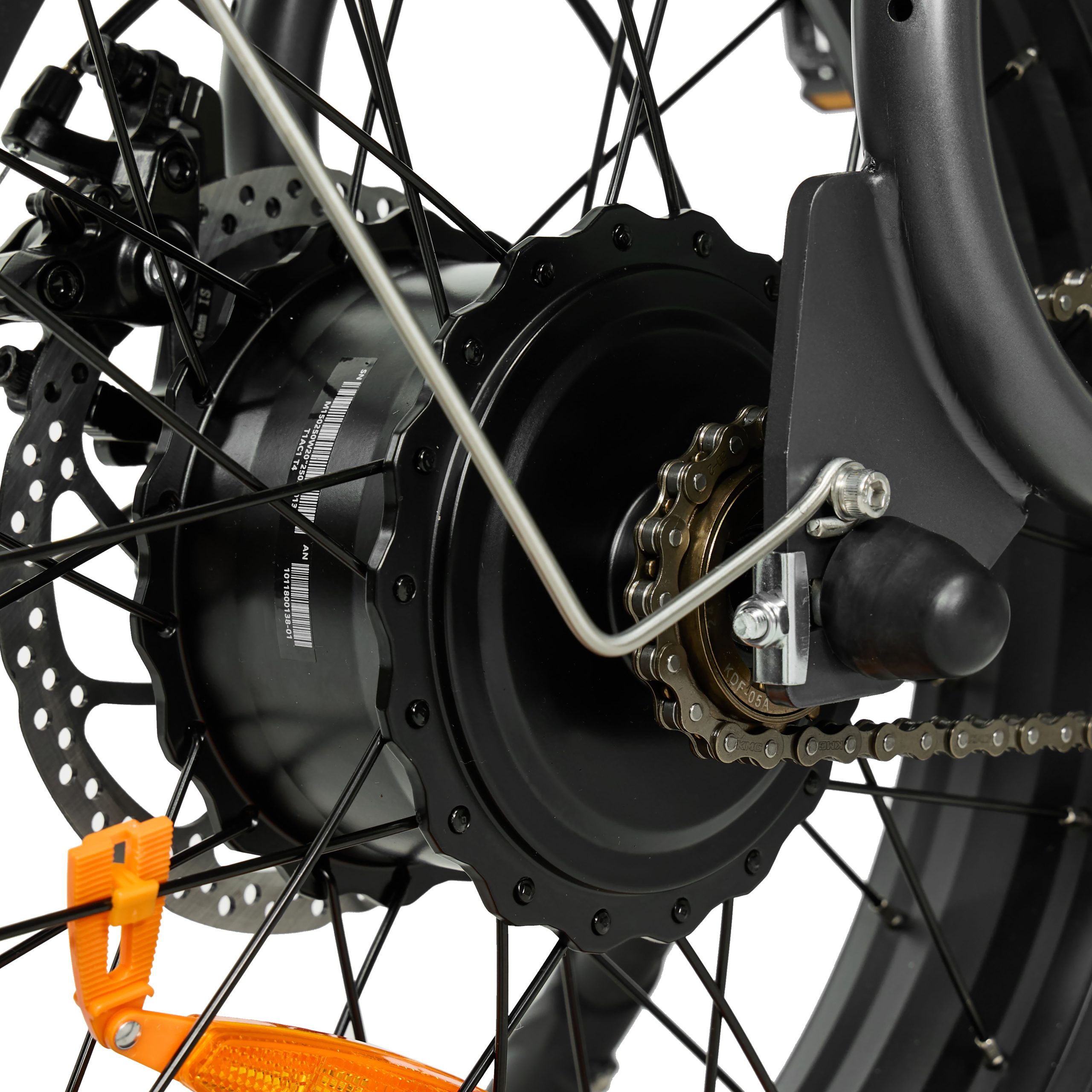

    Motor & Drive System Motor Type Rear hub brushless motor
    Motor Brand CZJB

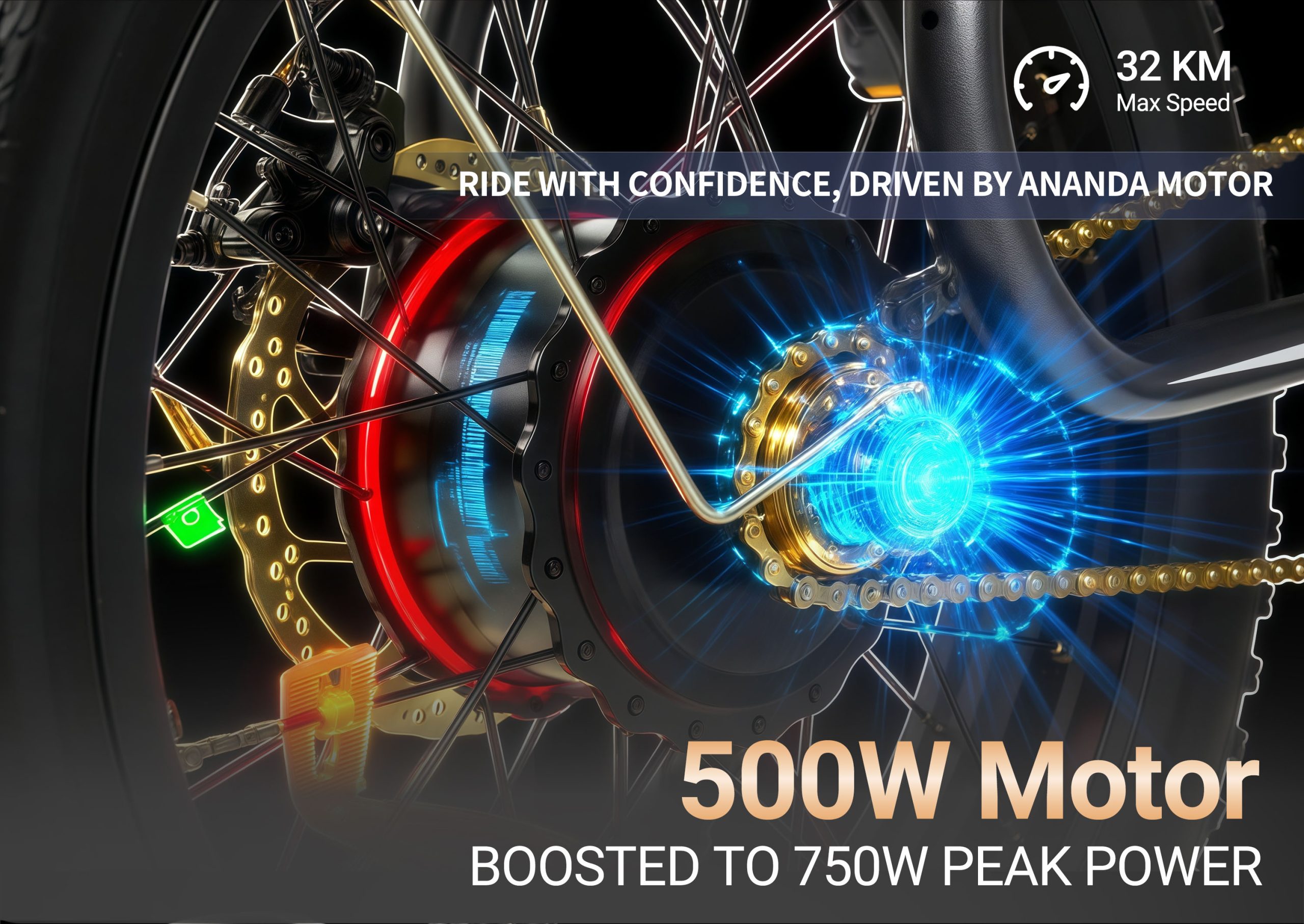

    Motor 48V 500W high-speed rear hub motor
    Maximum Climbing Gradient 15° (approx. 27% grade)

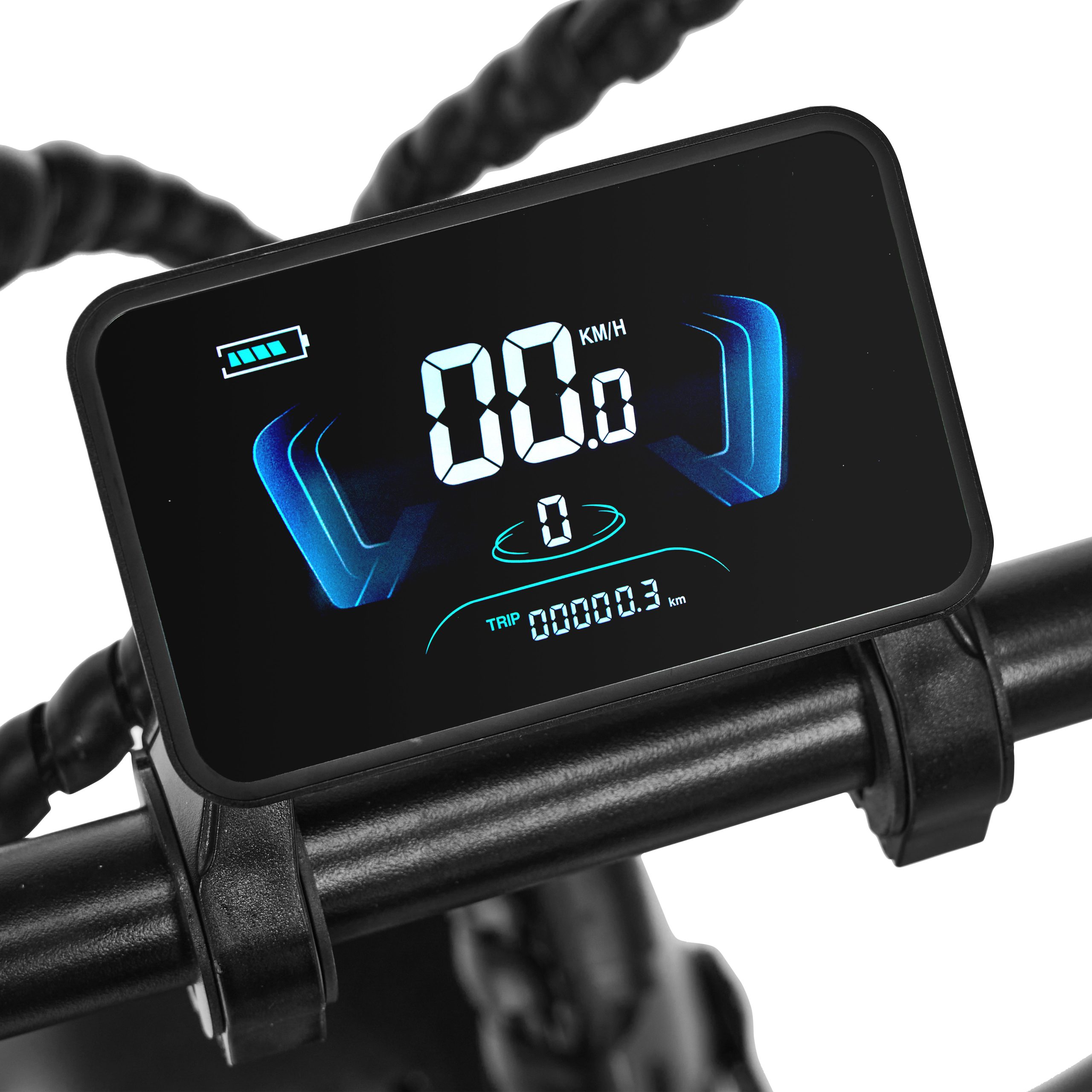

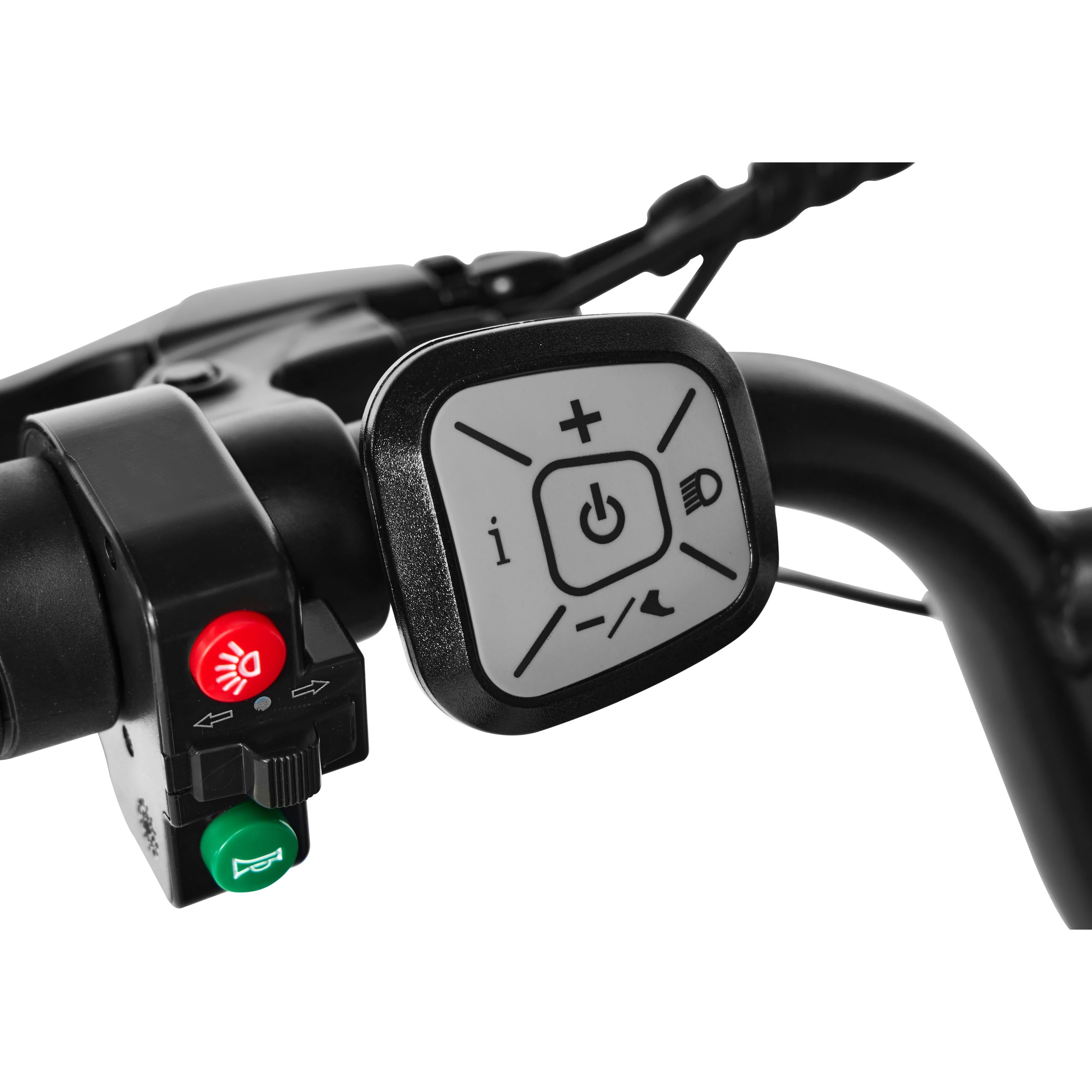

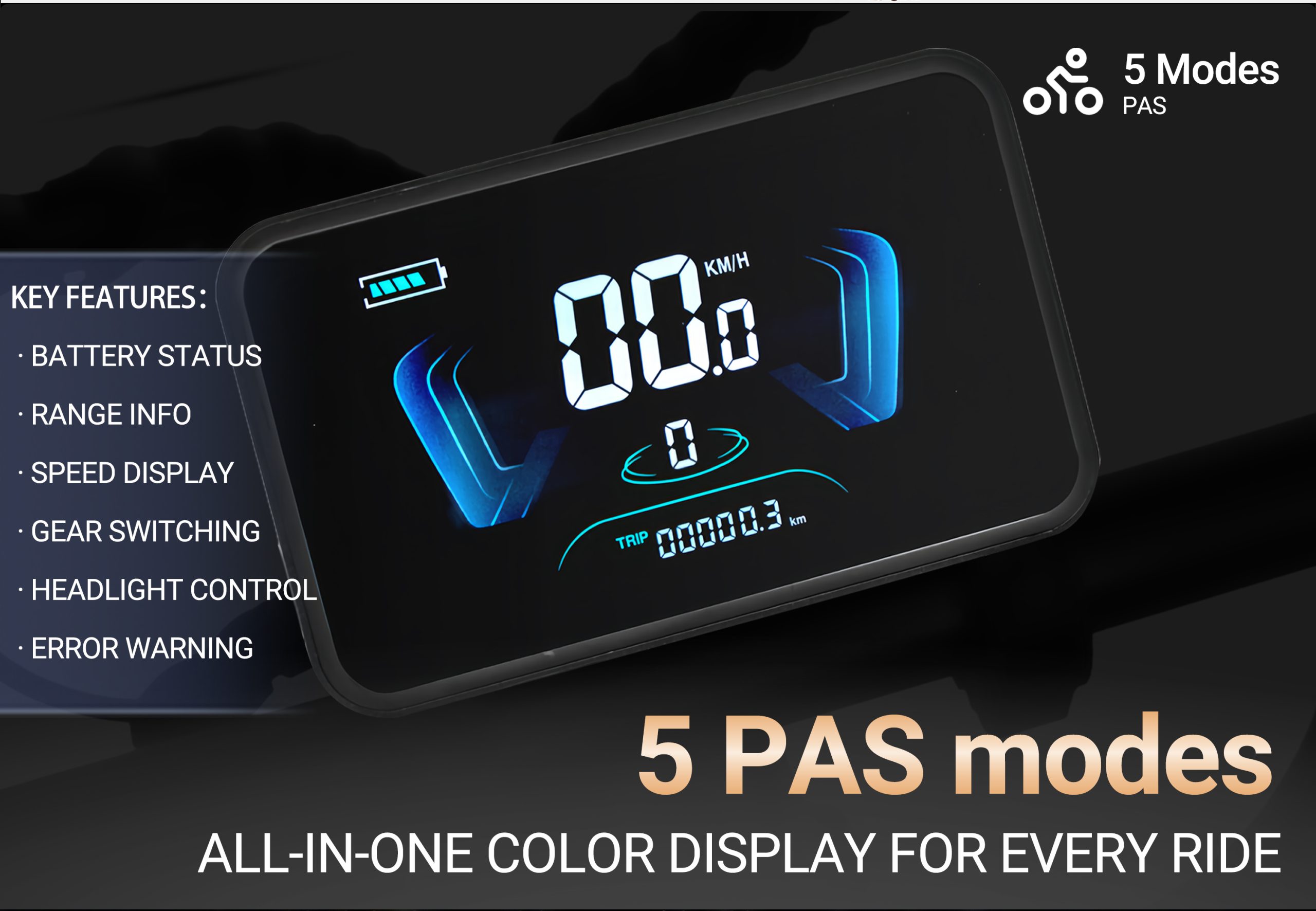

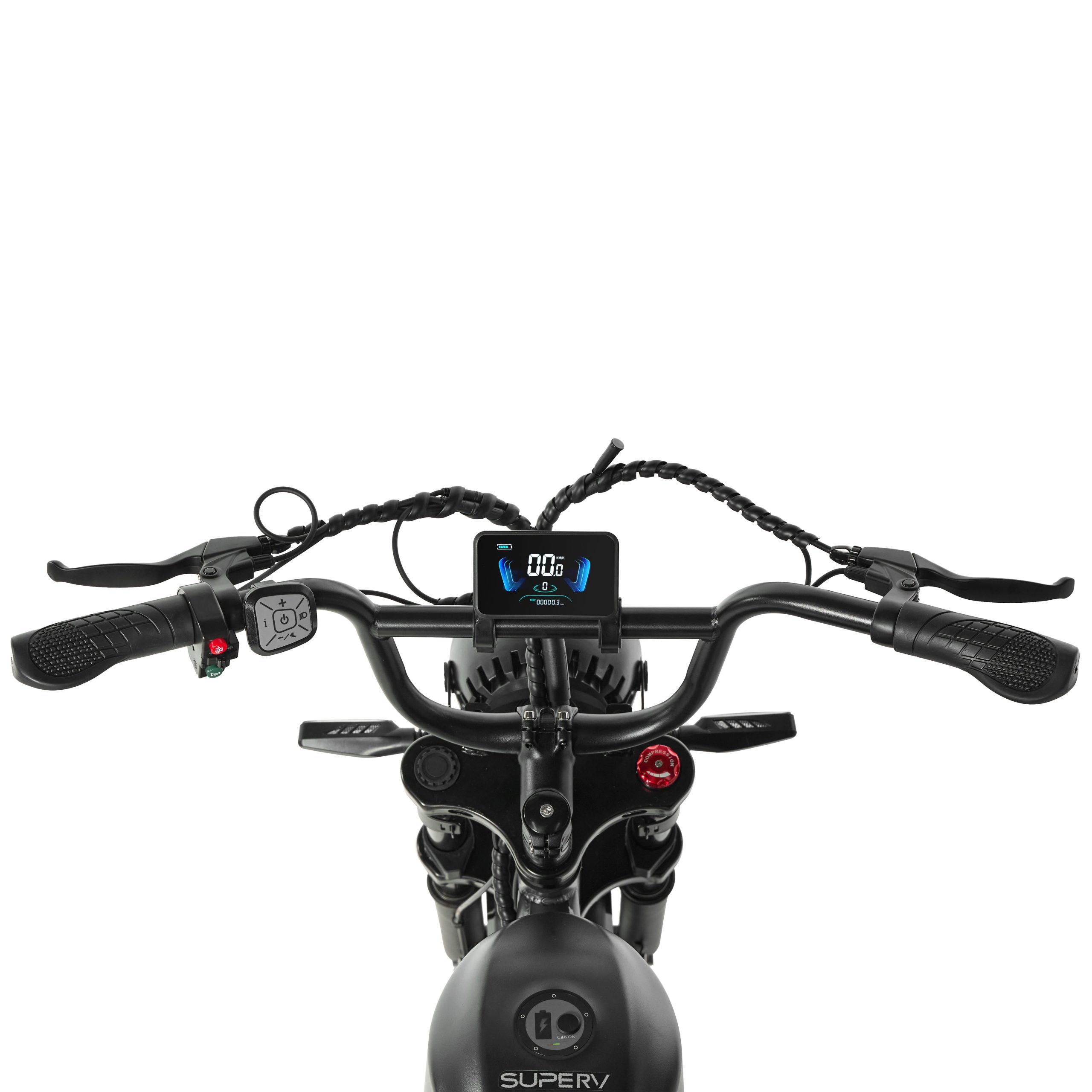

    Control System Display YL-81F-H + USB
    Assist Levels 5 levels (0–5)
    Throttle Twist Throttle (spare part in small box)
    Sensors Speed sensor (12-magnet)
    USB Charging Port Yes
    Walk Assist Mode 6 km/h (hold “–” button)
    Backlight Yes
    Frame & Fork Frame Material High-quality steel
    Frame Type Motorcycle-style frame
    Front Suspension Adjustable shock absorber

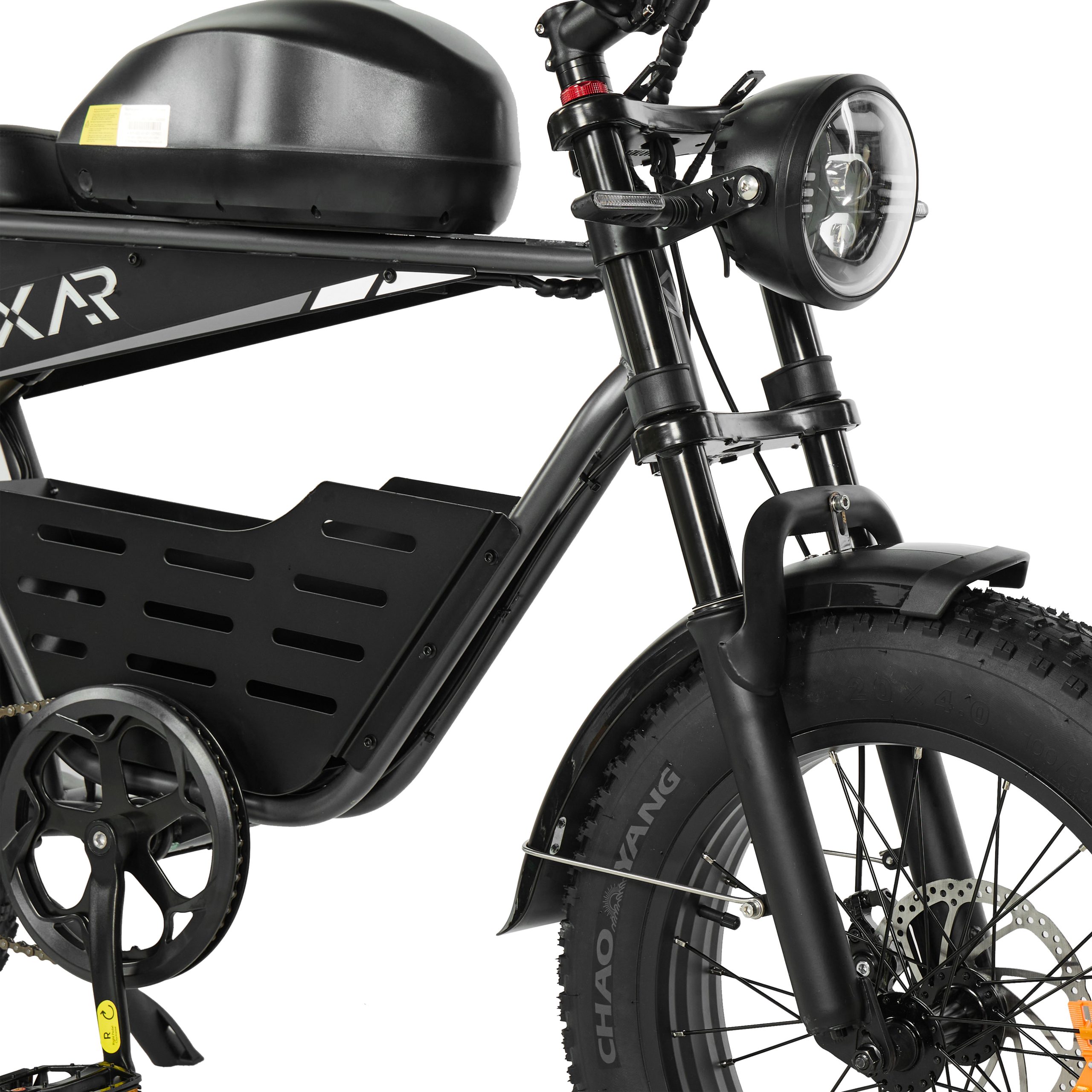

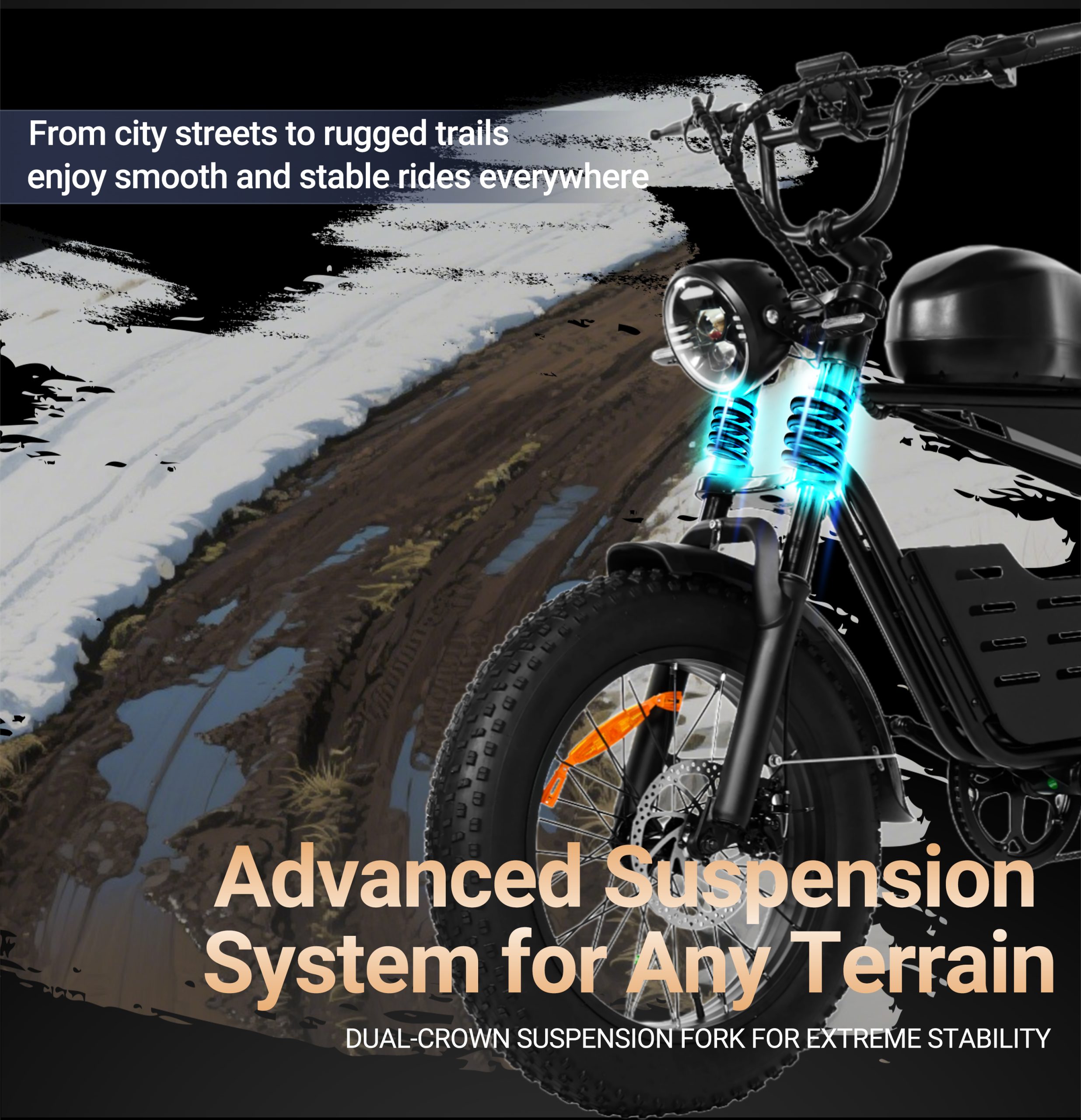

    Front Fork Dual-shoulder suspension fork
    Drivetrain Chain 1/2″ × 1/8″ × 108L
    Crankset 52T × 170L, alloy
    Freewheel 1-speed, 16T freewheel (thread-on)
    Rear Derailleur None
    Front Derailleur None (single chainring)
    Shifter Single speed

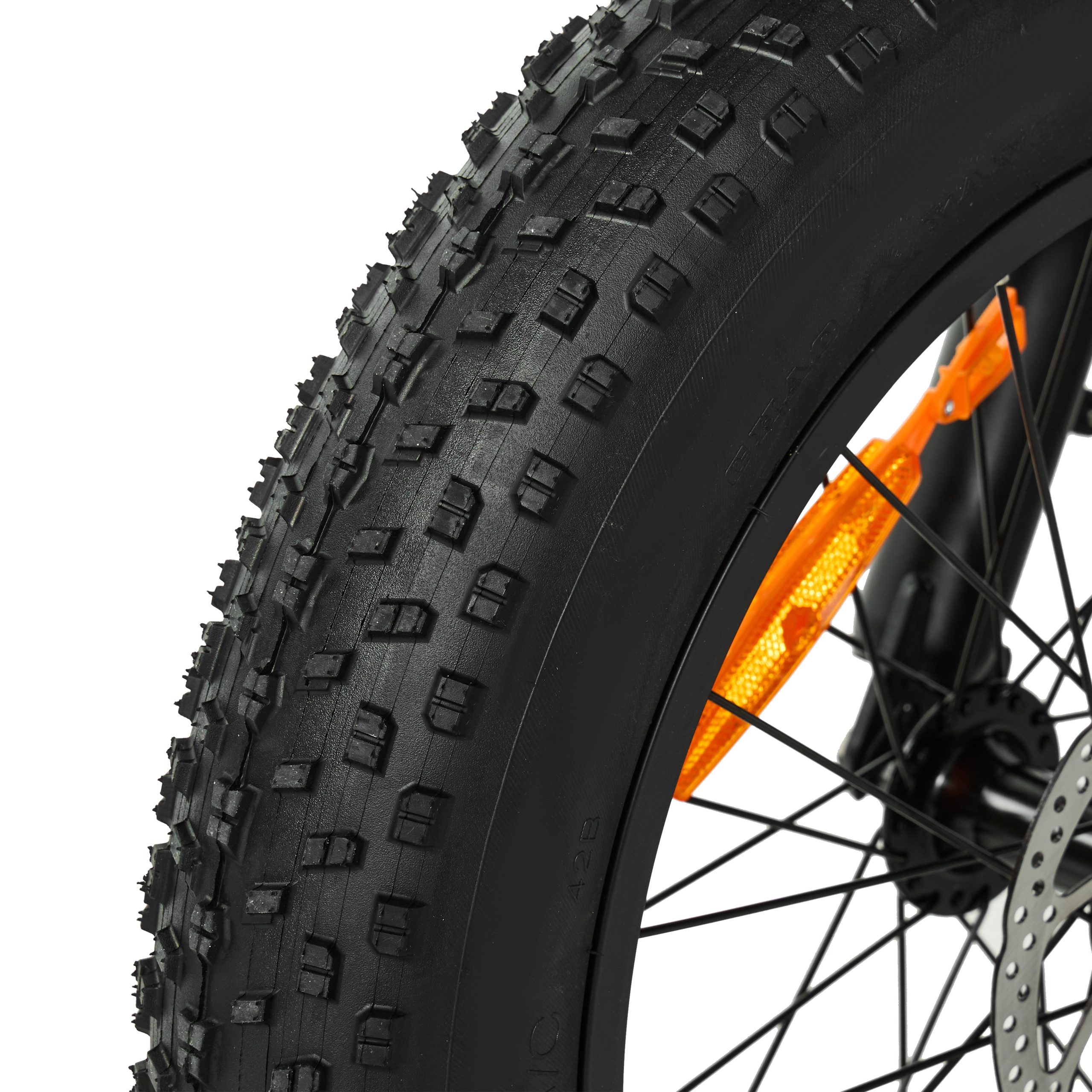

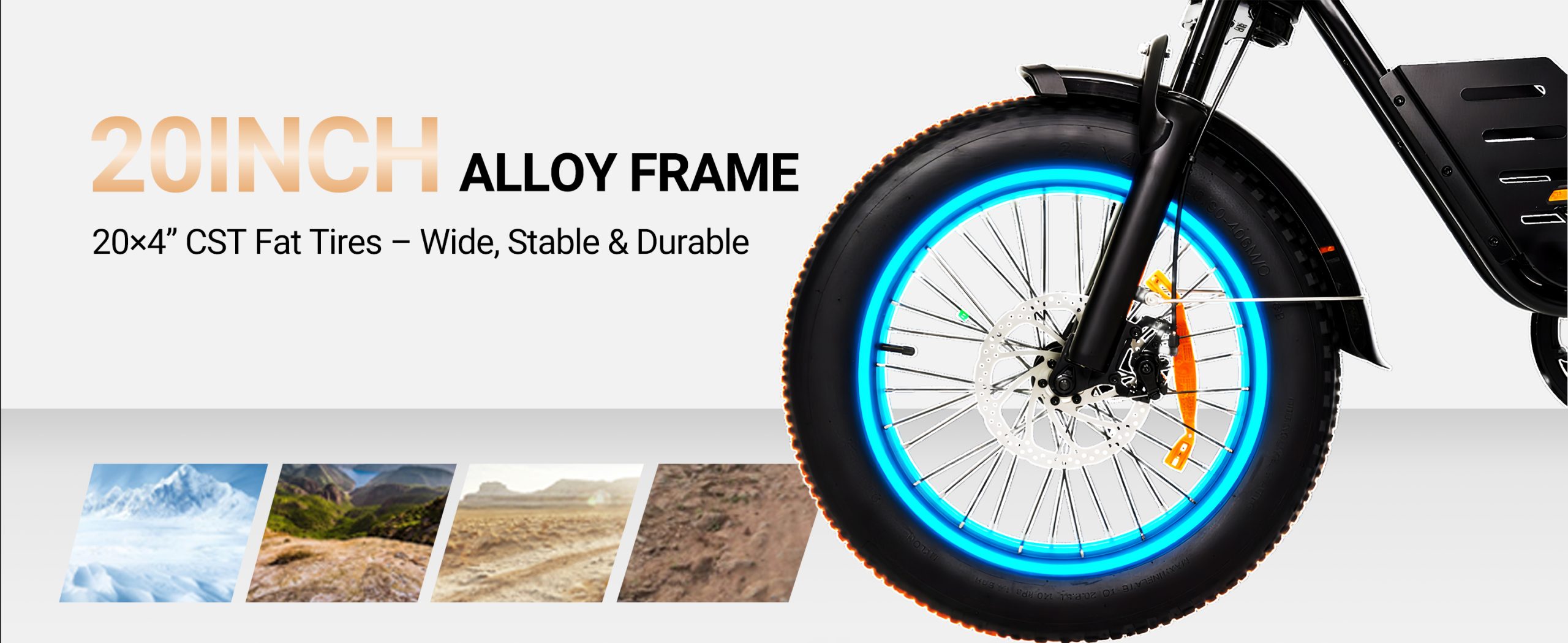

    Wheels & Tyres Wheel Size 20×4″
    Spokes 12G × 173 mm, EN 15194 compliant
    Tyre Size 700 × 40C
    Tyre Brand Chaoyang
    Puncture Protection Puncture-resistant
    Inner Tube 20″ × 4.0″, A/V valve 33 mm

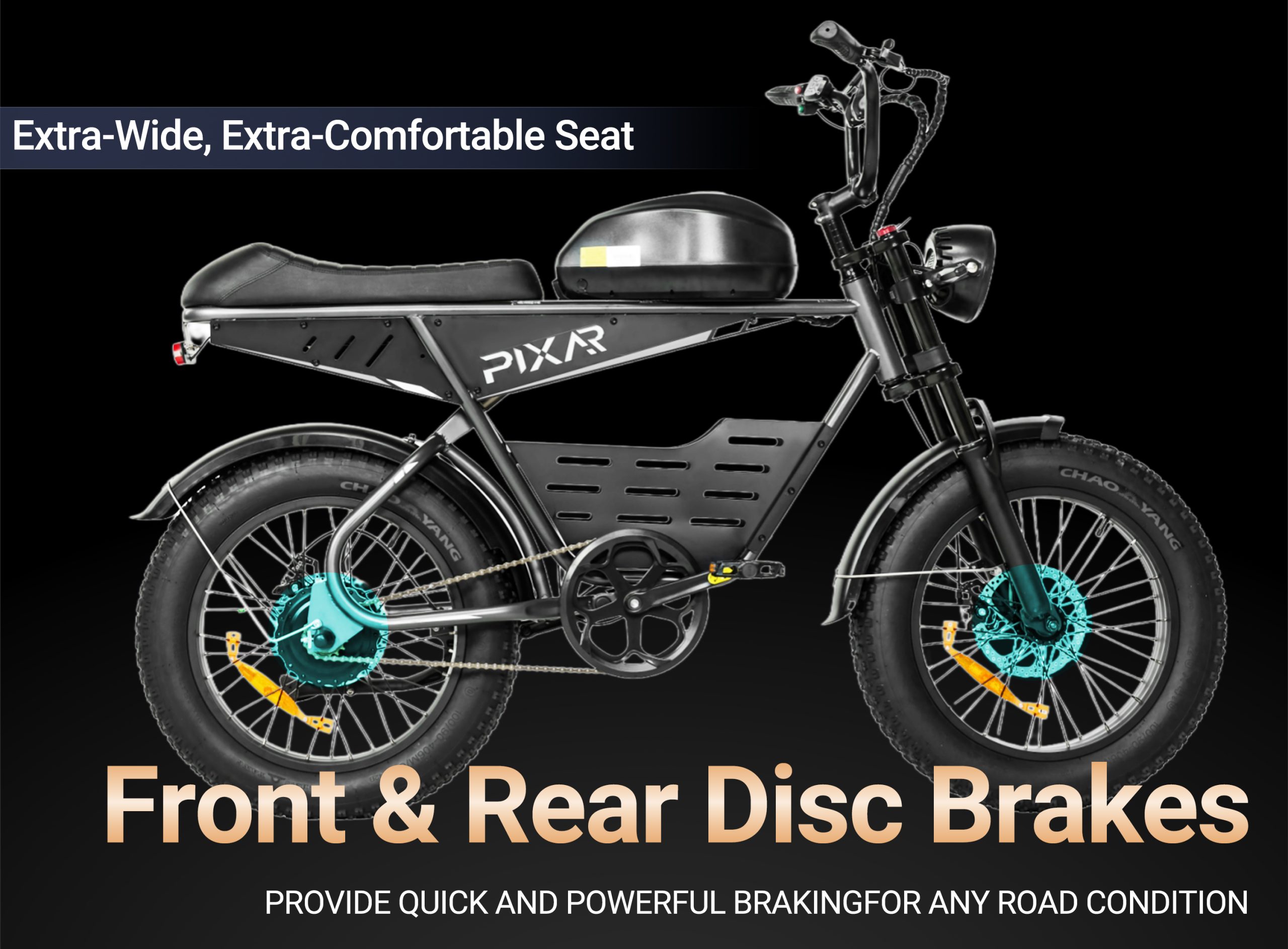

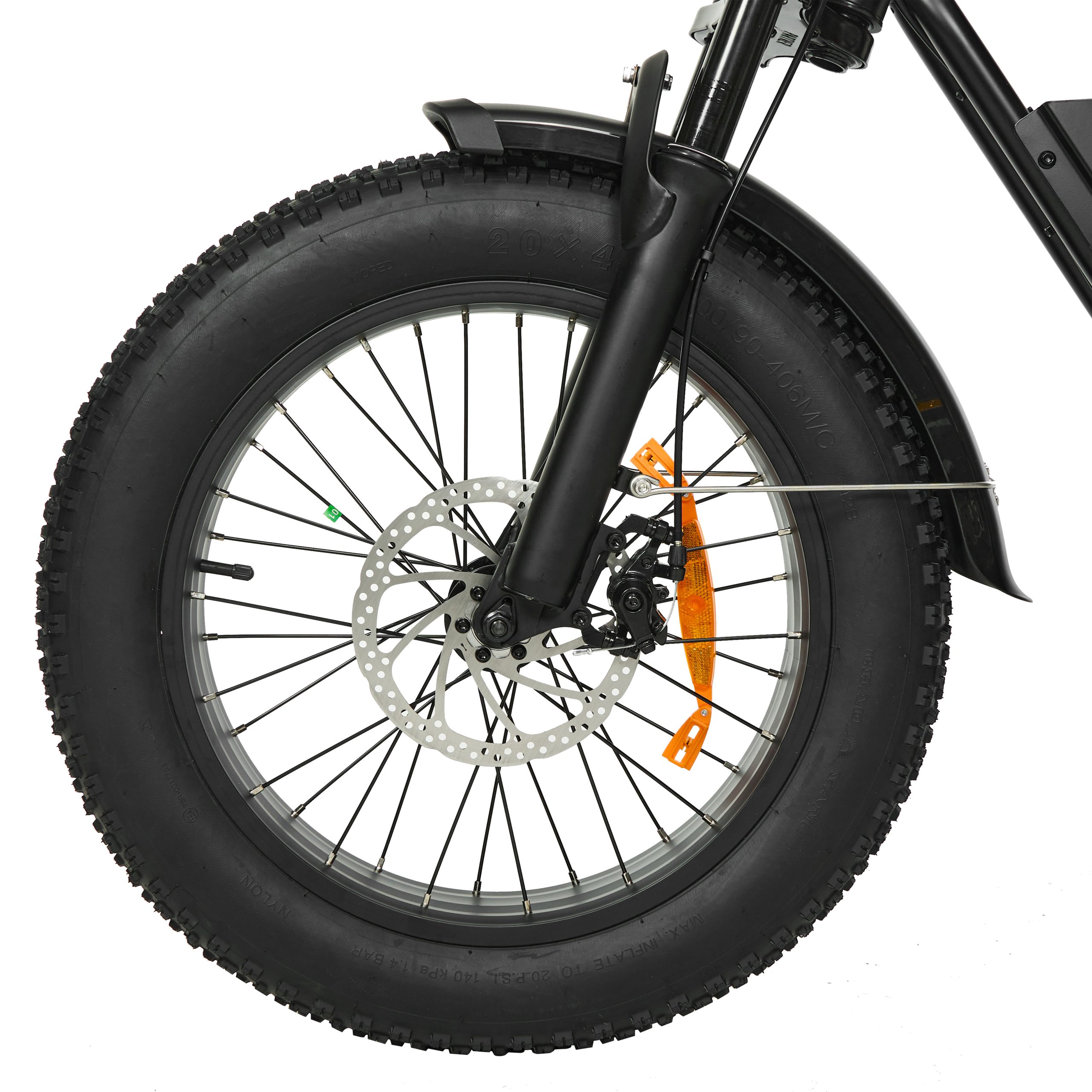

    Braking System Brake Type Mechanical disc brakes (front & rear)
    Brakes Power cut-off brakes
    Brake Rotors 180 mm (front & rear)
    Brake Levers All-aluminium, low-profile design with motor cut-off
    Cockpit & Components Handlebar Aluminium alloy riser bar, 26.2″ (665 mm) width, 31.8 mm stem clamp
    Stem Steel stem
    Saddle Comfort saddle
    Saddle Height Range 900–1000 mm
    Seatpost 33.9 mm aluminium alloy, angle-adjustable
    Quick Release Yes (front wheel & seatpost)
    Pedals Aluminium alloy platform pedals with reflectors

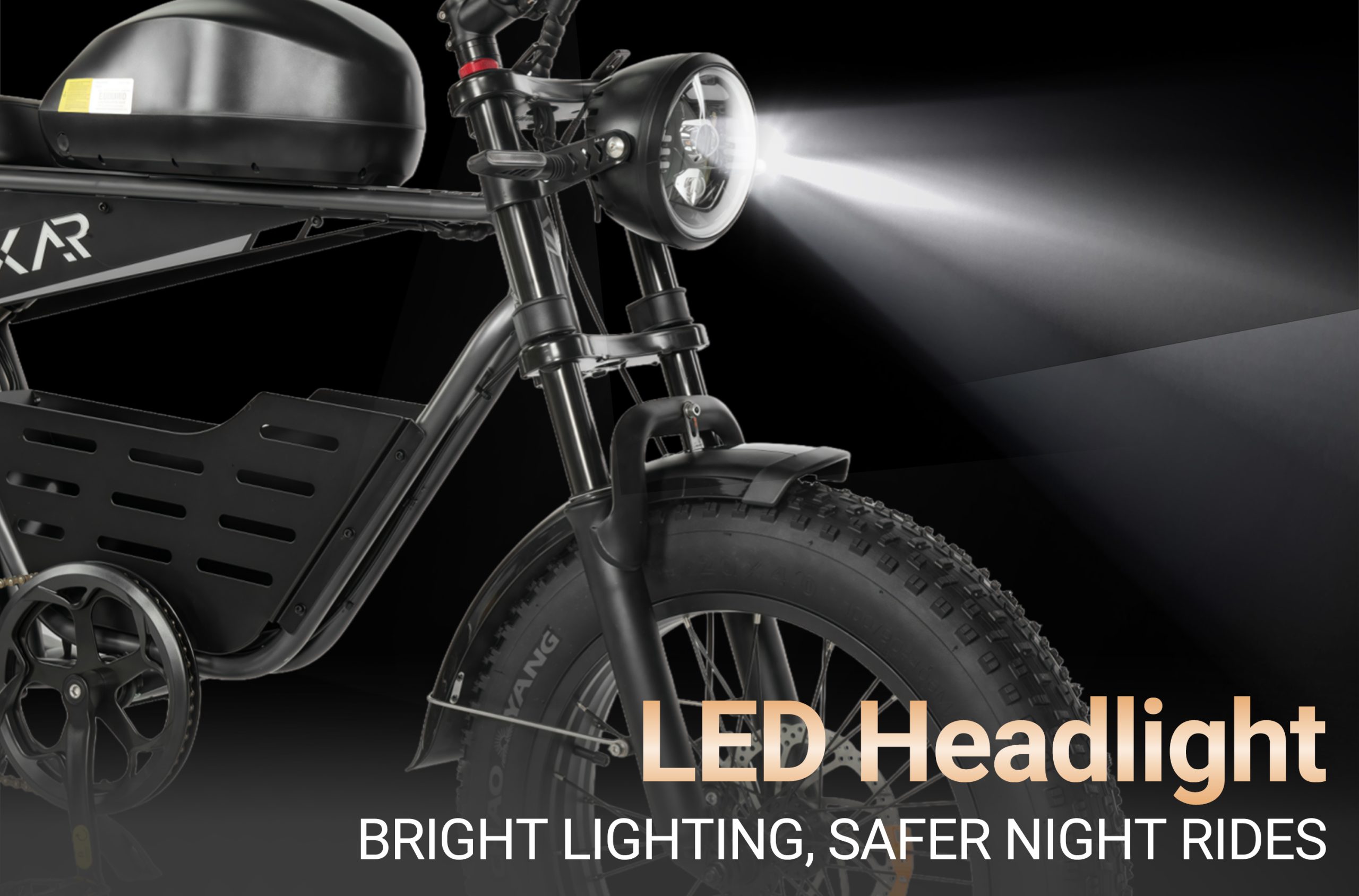

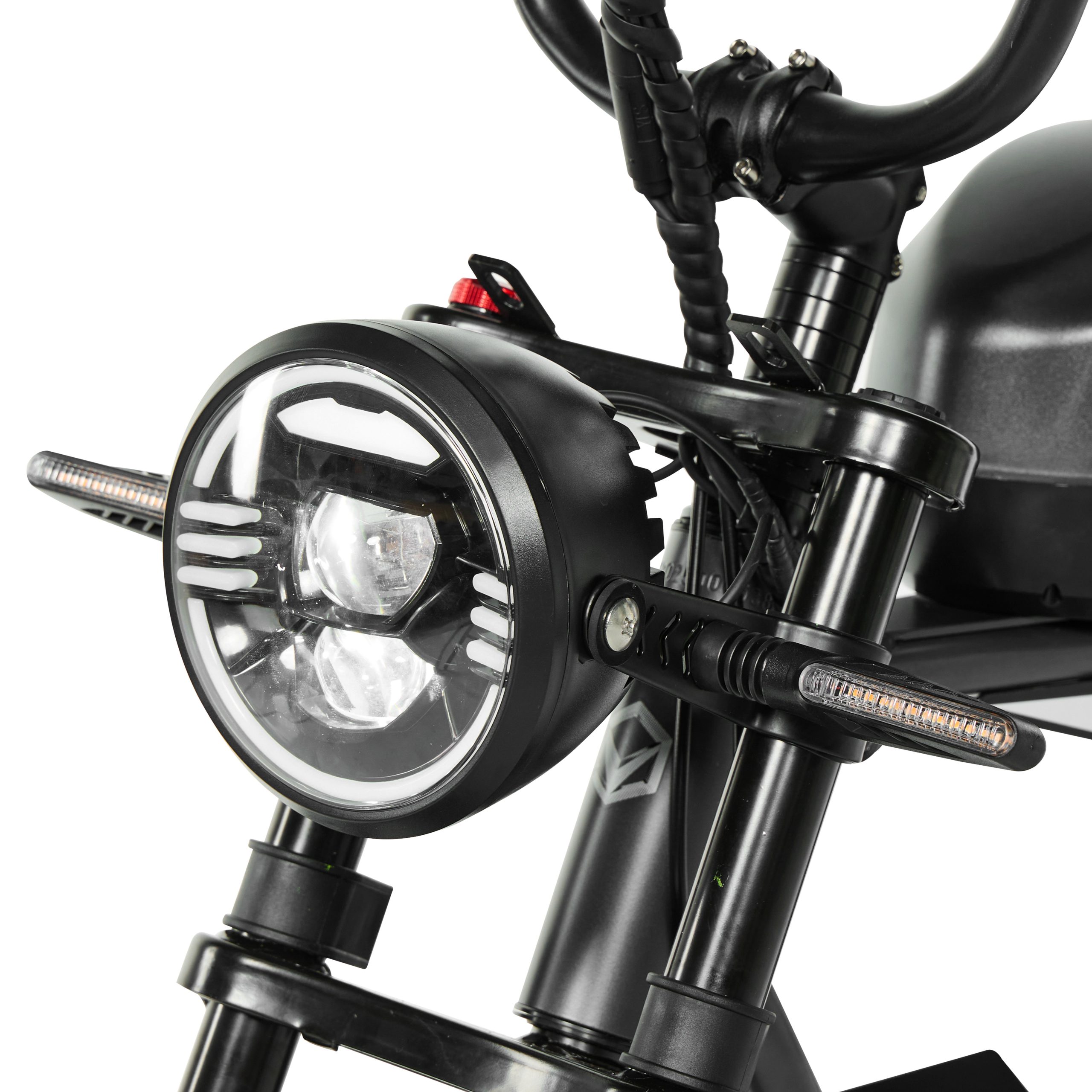

    Lighting & Safety Headlight Integrated headlight with waterproof disconnect

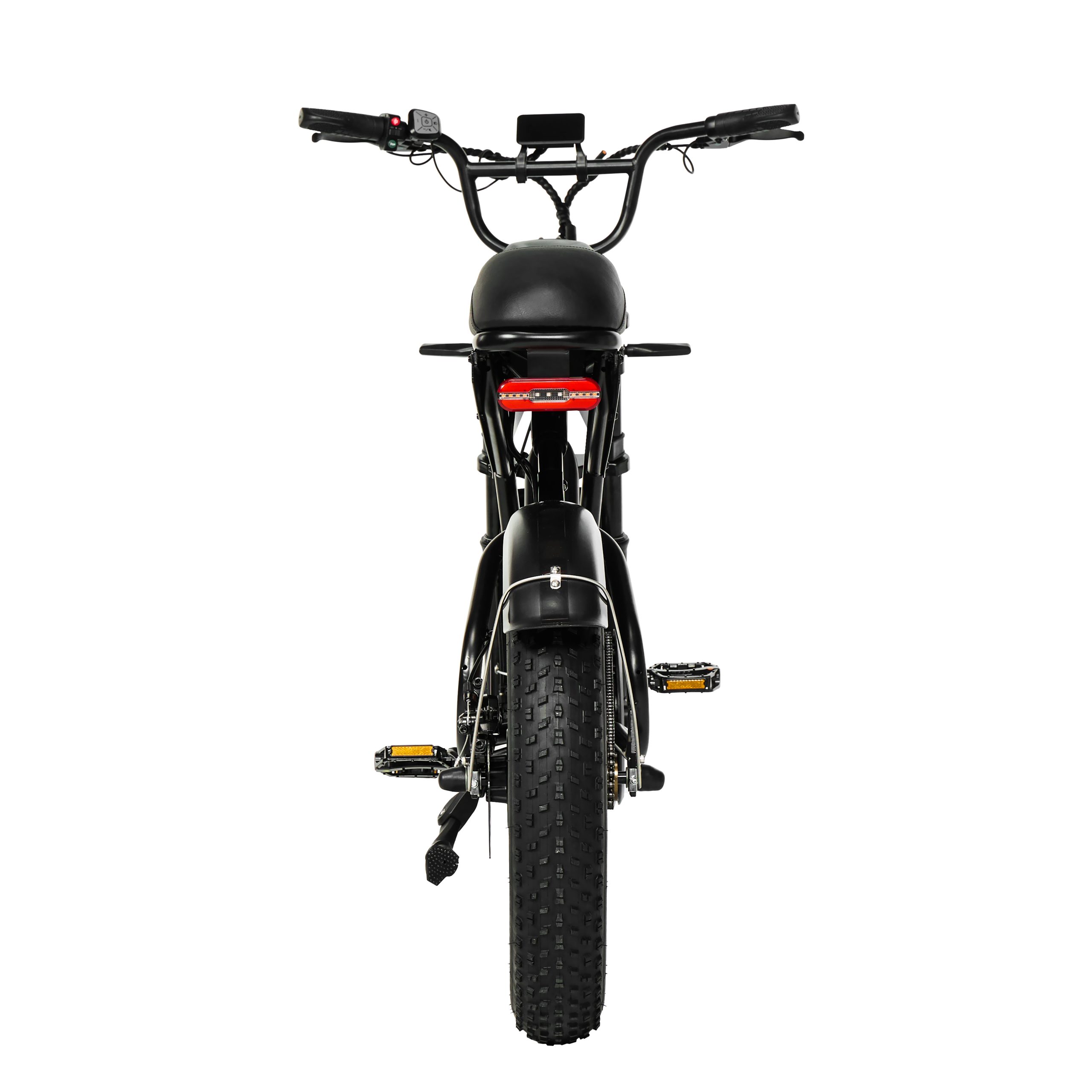

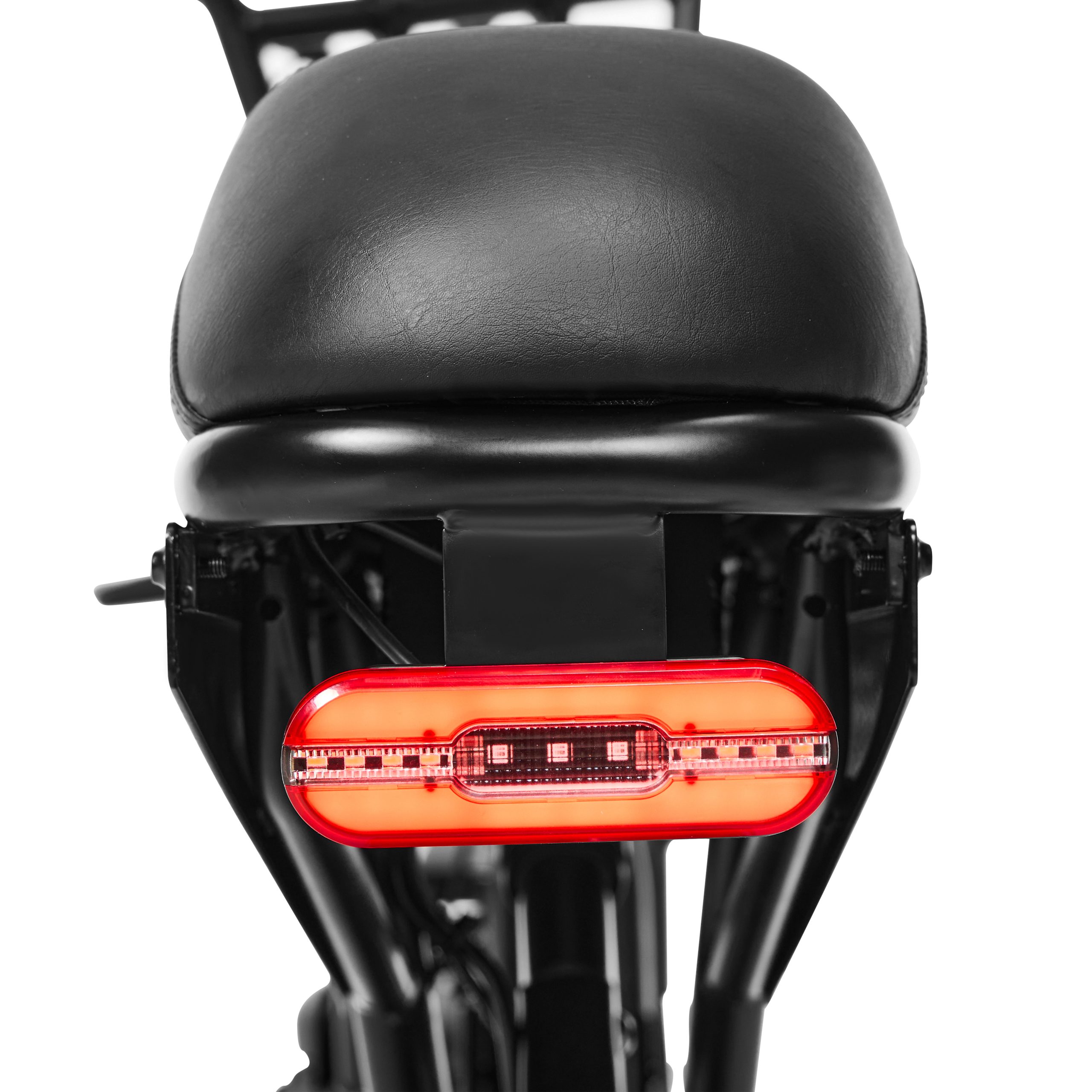

    Taillight Integrated taillight with waterproof disconnect
    Bell/Horn Electronic horn
    Additional Equipment Kickstand Heavy-duty aluminium kickstand
    Mudguards/Fenders Front & rear fenders included
    Rear Rack None
    Front Rack None
    Basket Yes
    Toolkit Included Yes (3× wrench, 1× screwdriver, 5× hex key)
    Certification & Compliance EN 15194 Certified Yes
    Certification CE, EN 15194, UL2271
    Warranty & Support Overall Warranty Period 1-year limited warranty
    Battery Warranty 1 year from original purchase date
    Frame Warranty 2 years
    Assembly & Delivery Assembly Required 90% pre-assembled (front wheel, pedals, handlebar adjustment)
    Assembly Instructions Multilingual manual included
