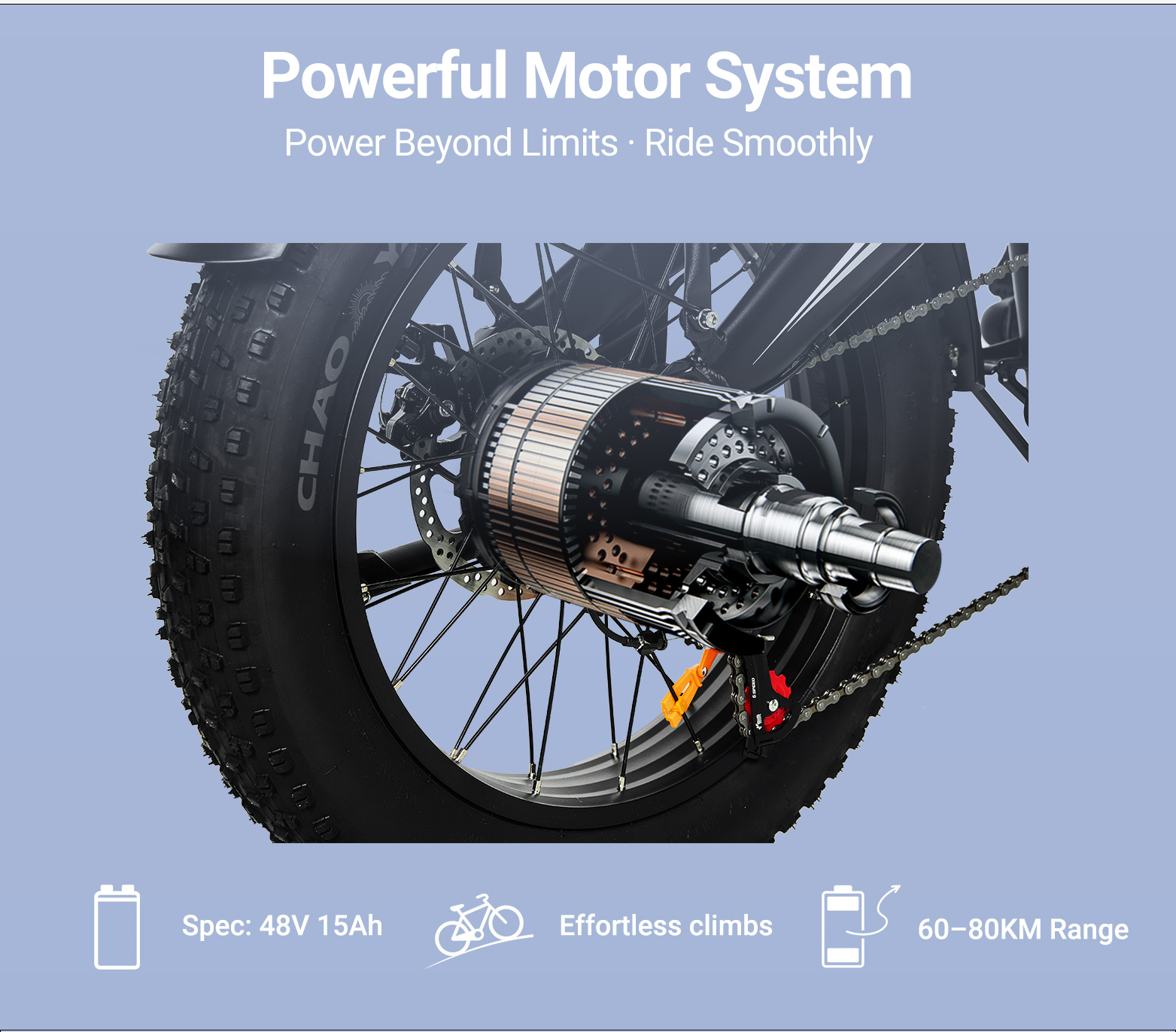

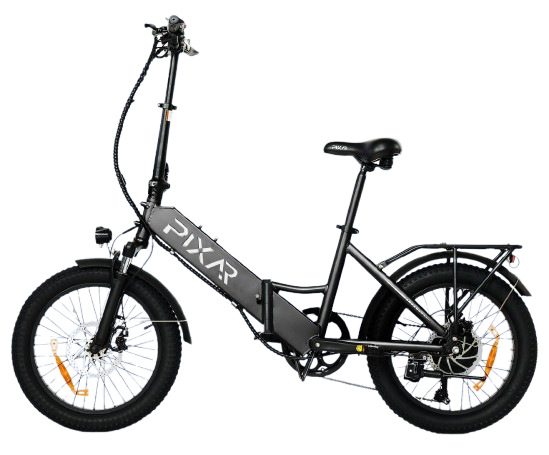

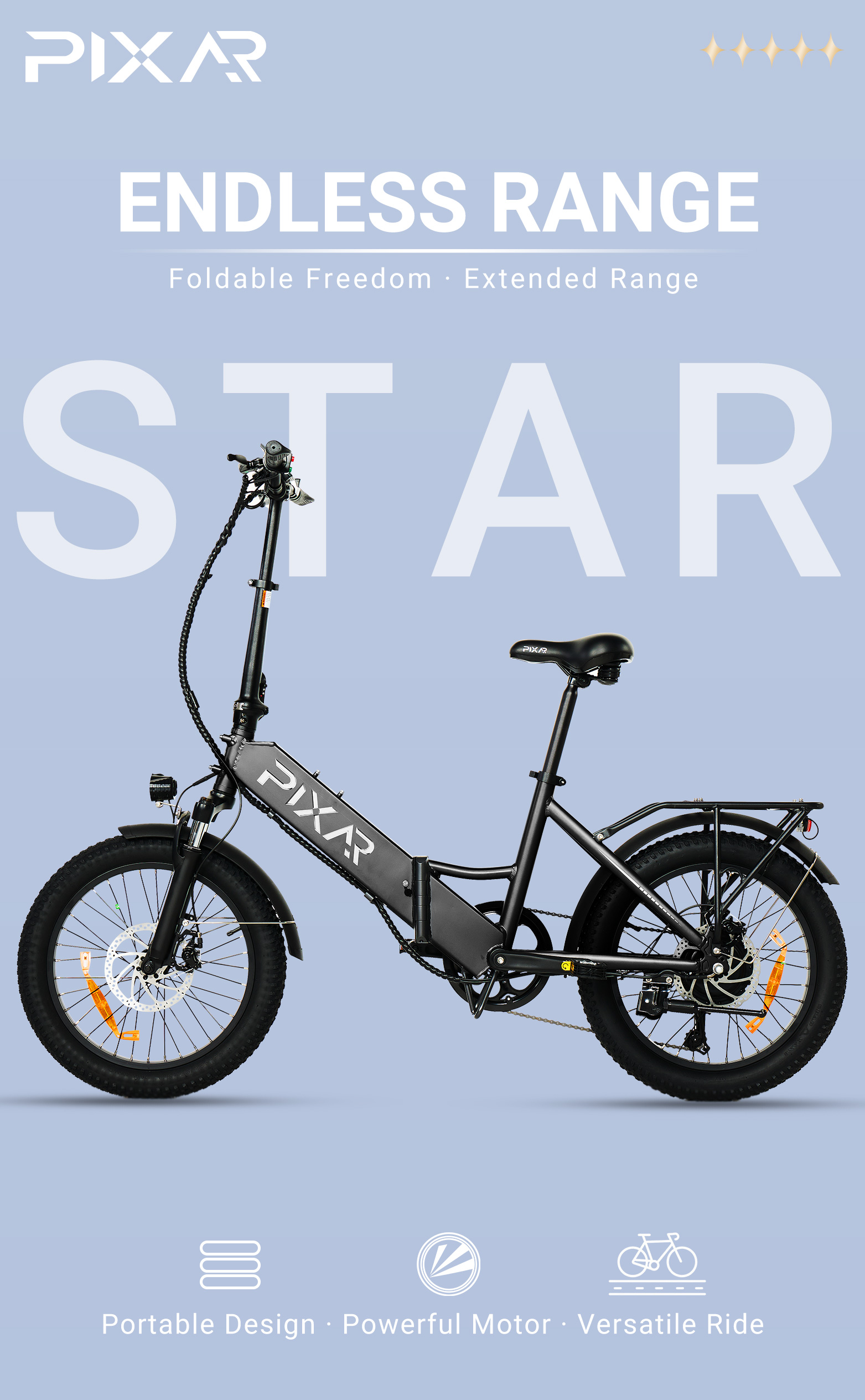

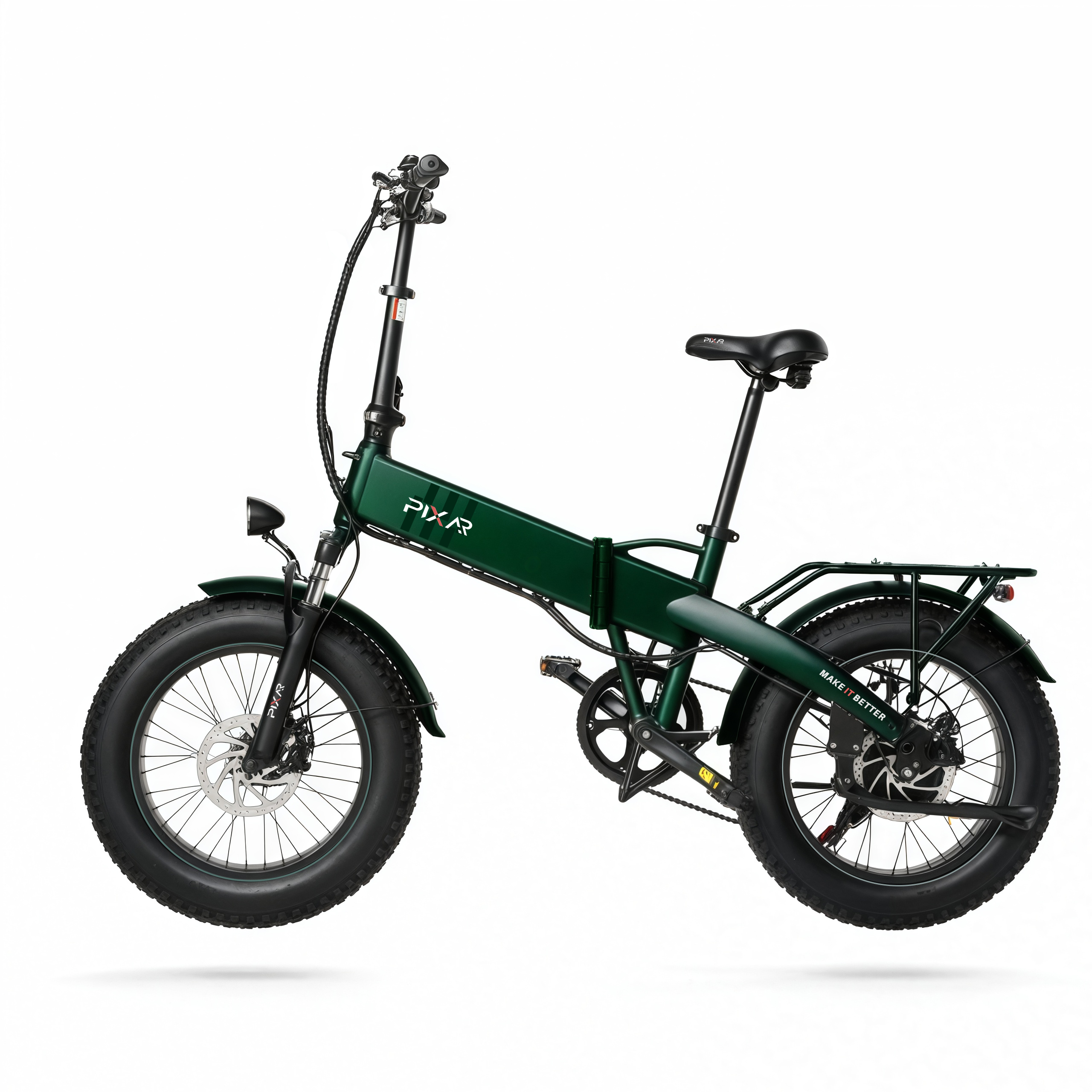

Pixar Star 1 Electric Bike blends sleek, modern design with robust performance, ideal for riders seeking style and practicality. Its durable 6061 aluminum alloy folding frame pairs with a powerful 48V 500W CZJB rear hub brushless motor, delivering strong torque and a top speed of 25 km/h (adjustable to 32 km/h in pedelec mode).
A removable 48V 15Ah lithium-ion battery (using EVE cells) offers a reliable range of 45–55 km per charge, with a full recharge in approximately 7.5 hours via the included 54.6V 2A smart charger. Navigate varied terrain effortlessly with the Shimano 7-speed drivetrain, adjustable front suspension, and 20″ × 4″ Chaoyang fat tires that provide excellent traction and stability.

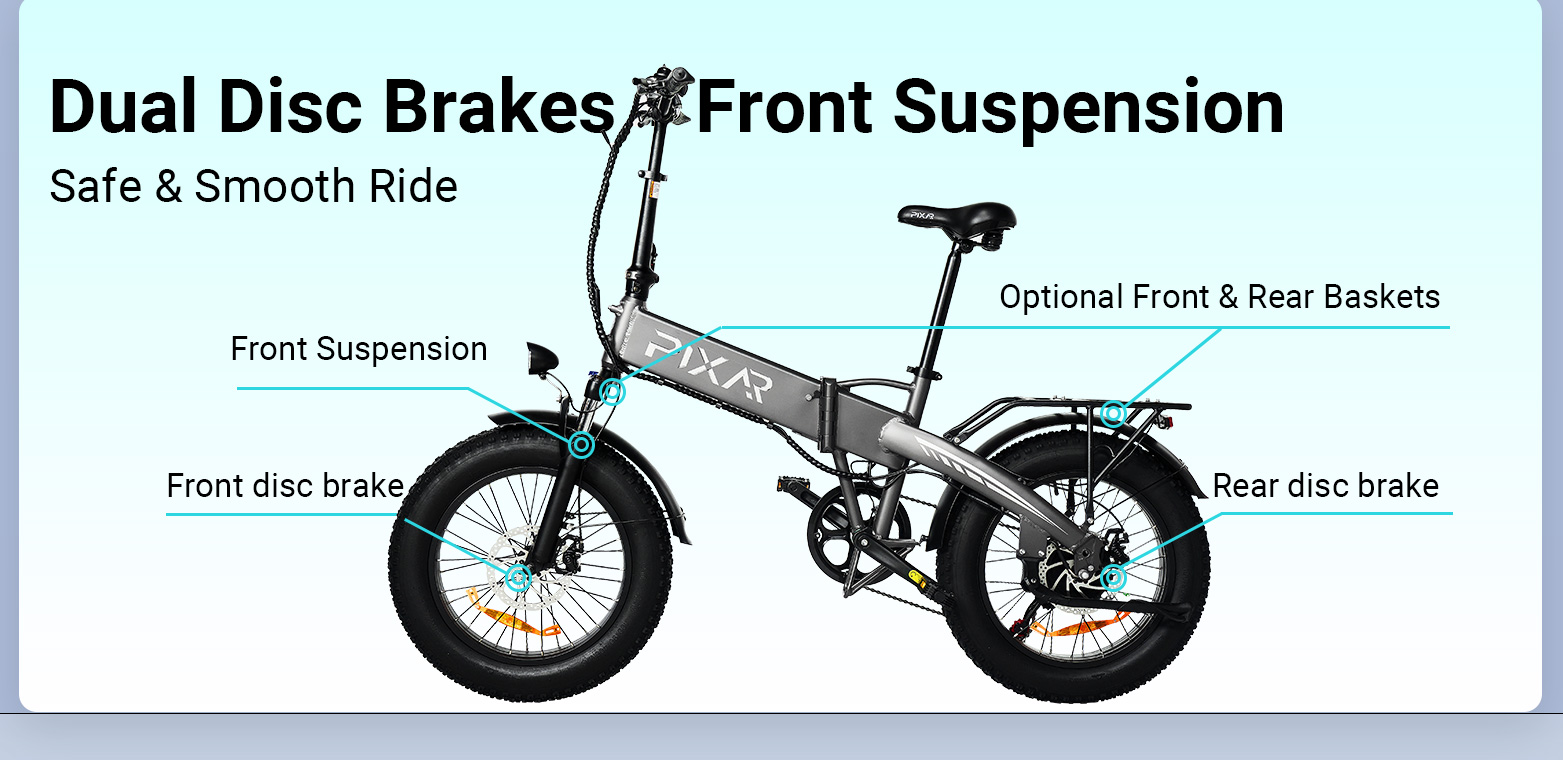

Safety is prioritized with front and rear mechanical disc brakes (180 mm rotors) featuring power cut-off levers, plus integrated LED lighting and an electronic horn. The SW-K618 smart color display (IP66-rated with Type-C charging) offers 5 assist levels, walk-assist mode, and real-time ride data.

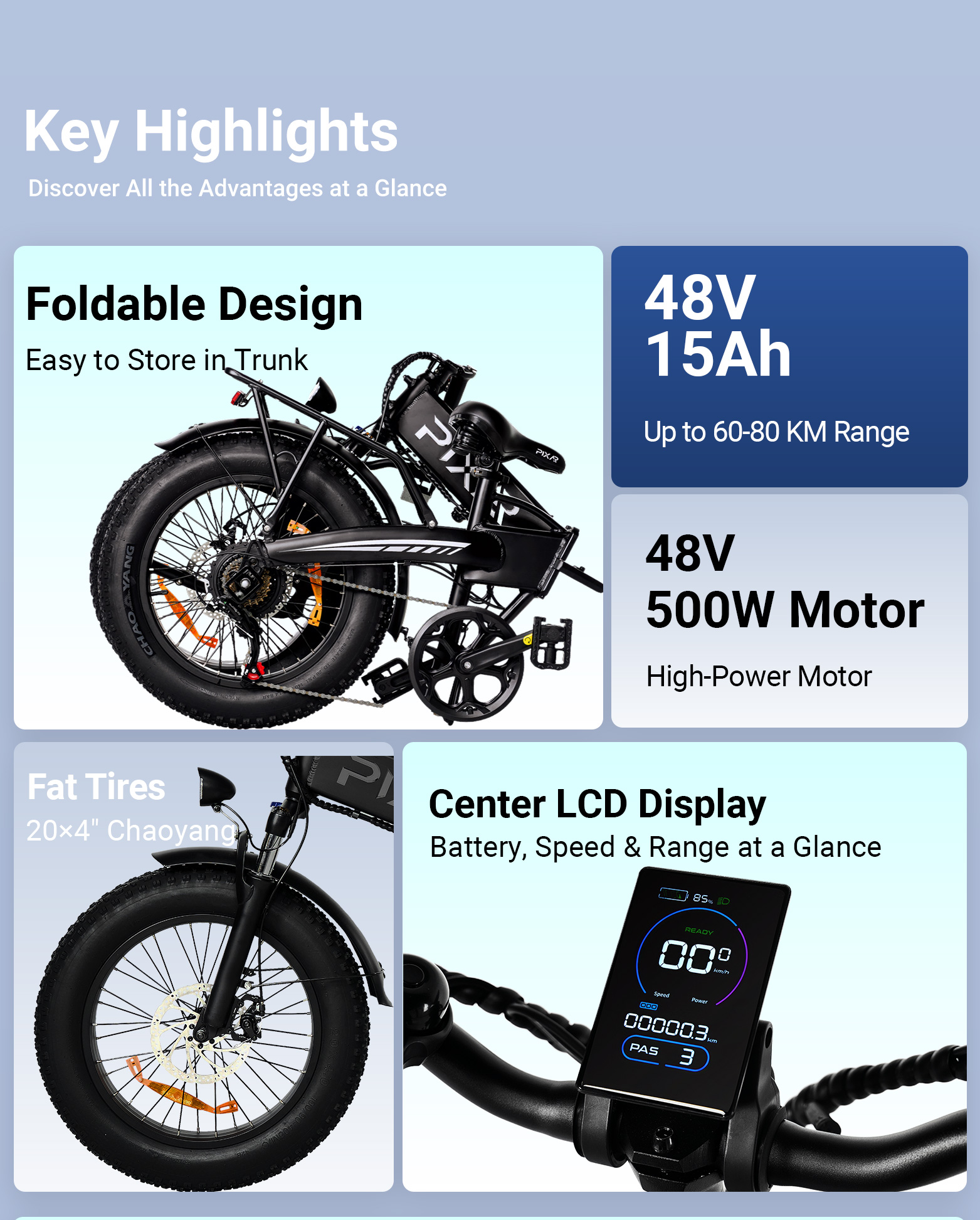

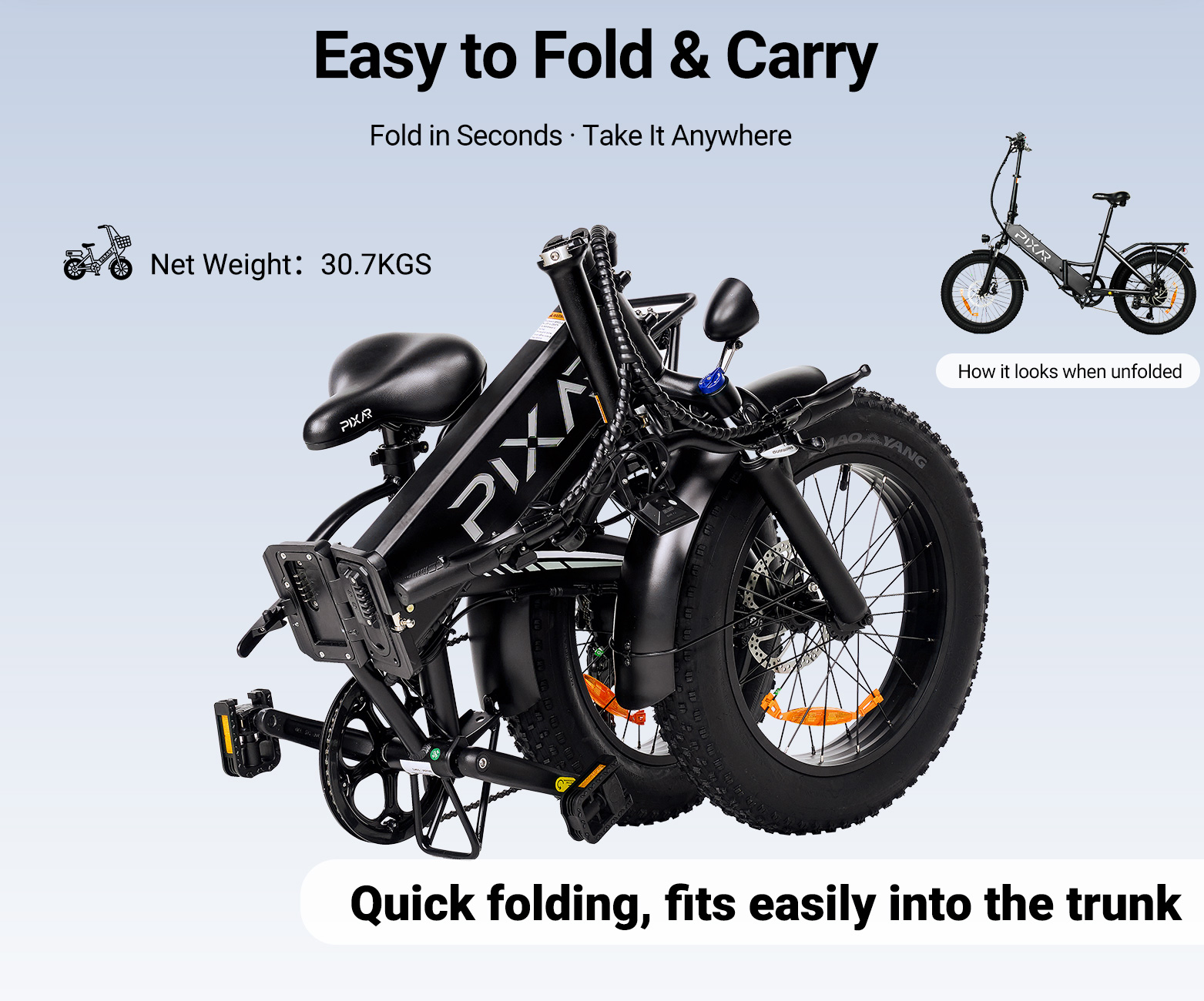

Compact and portable, the bike folds to 95 × 44 × 73 cm, making it perfect for urban commuters and travelers. Additional features include front/rear fenders, a rear rack, foldable pedals, and a heavy-duty kickstand.
Why Choose the Pixar Star 1?
- Powerful Performance: 500W brushless motor with 25 km/h top speed (adjustable to 32 km/h).
- Extended Range: 48V 15Ah lithium-ion battery delivers 45–55 km per charge.
- Smooth Control: Shimano 7-speed gears and 5-level pedal assist for versatile riding.
- Reliable Stopping: Dual mechanical disc brakes with motor cut-off for secure control.
- Foldable & Portable: Compact folding design with 20″ fat tires and aluminum alloy frame.
- Convenient Charging: Removable battery recharges in ~7.5 hours.
Specifications
| Pixar Star E-bike – Product Parameters (European Market) | ||
| / | Parameter | Value |
| General Specifications | Range | 45-55km |
| Top Speed | 25 km/h (Pedelec limit, adjustable to 32 km/h) | |
| Dimensions | 165 × 65 × 127 cm (L × W × H) | |
| Max Load Capacity | 120kg | |
| Net Weight | 31kg | |
| Gross Weight | 41kg | |
| Packing Dimensions | 106 x 49 x 82cm | |
| Qty for 1×40HQ Container | 171 pcs | |
| Recommended Rider Height | 155-190 cm | |

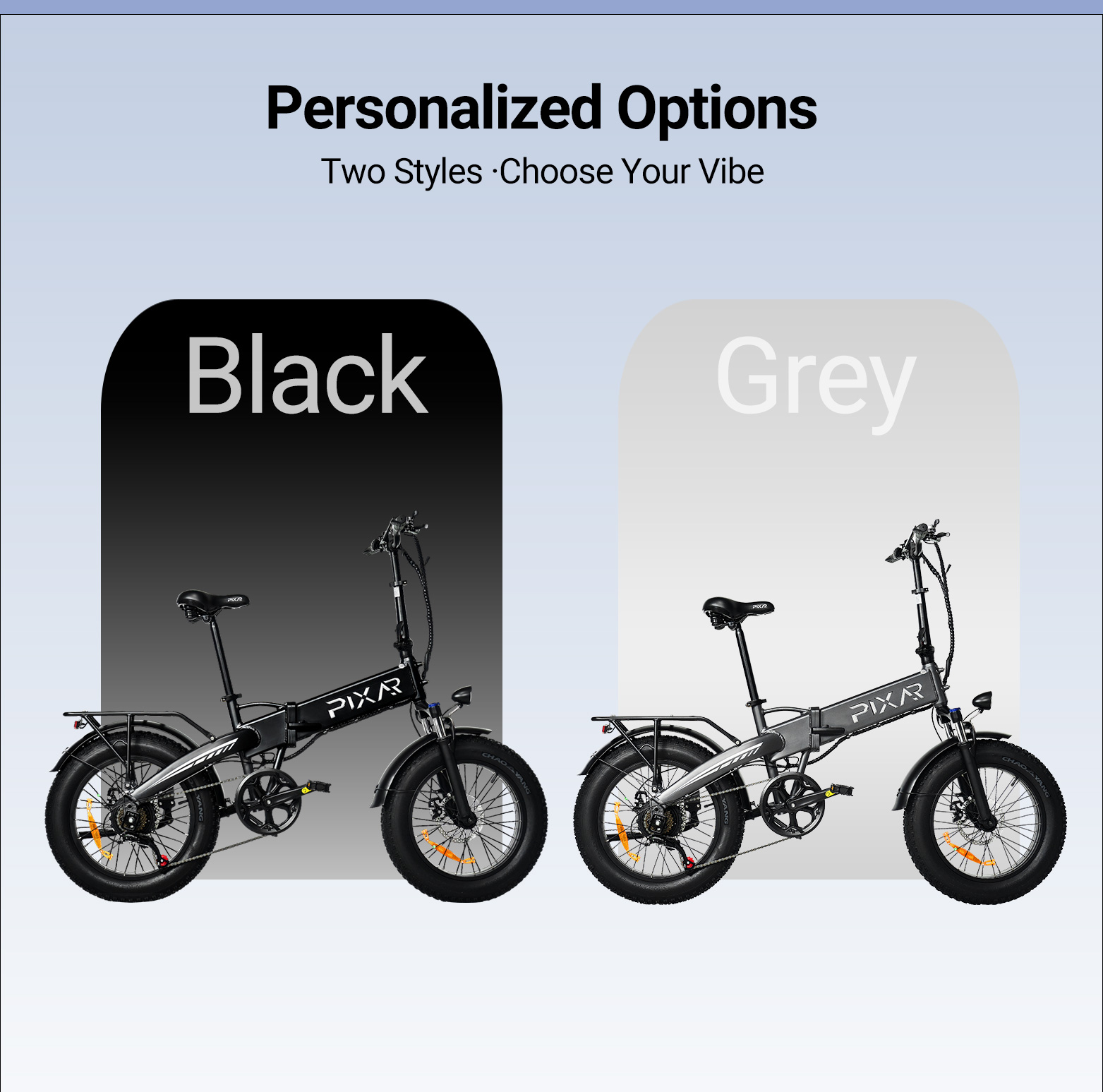

| Colour Options | Black & Grey | |
| Foldable | Yes | |
| Bike Folded Size | 95 x 44 x 73cm | |
| IP Rating | IP54 | |
| Operating Temperature | -10°C to +45°C | |
| Bike Category | Folding Fat Tire | |
| Battery System | Battery Capacity & Type | 48V15Ah Lithium-ion (EVE cells) |
| Battery Weight | 3kg | |
| Removable Battery | Yes | |
| Battery IP Rating | IP65 | |
| Battery Certification | EN 62133 compliant | |
| Charging Time | 7.5h | |
| Charger | 54.6V2A smart charger | |
| Motor & Drive System | Motor Type | Rear hub brushless motor |
| Motor Brand | CZJB | |
| Motor | 48V500W high-speed rear hub motor | |
| Maximum Climbing Gradient | 15° (approx. 27% grade) | |
| Control System (控制系统) | Display | SW-K618 Smart Color Display, IP66, Type C Charging |
| Assist Levels | 5 levels (0-5) | |
| Throttle | Twist Throttle(Spare parts in small box) | |
| Sensors | Speed sensor (12-magnet) | |
| Charging Port | Yes (Type-C on display) | |
| Walk Assist Mode | 6 km/h (hold “-” button) | |
| Backlight | Yes | |
| Frame & Fork | Frame Material | Aluminum alloy 6061 |
| Frame Type | Folding Frame | |
| Front Suspension | Adjustable shock absorber | |
| Front Fork | With Suspension Fork | |
| Drivetrain | Chain | 1/2*3/32”x118L |
| Crankset | 52T*170L, alloy | |
| Freewheel | 7-speed, 14-28T freewheel (thread-on) | |

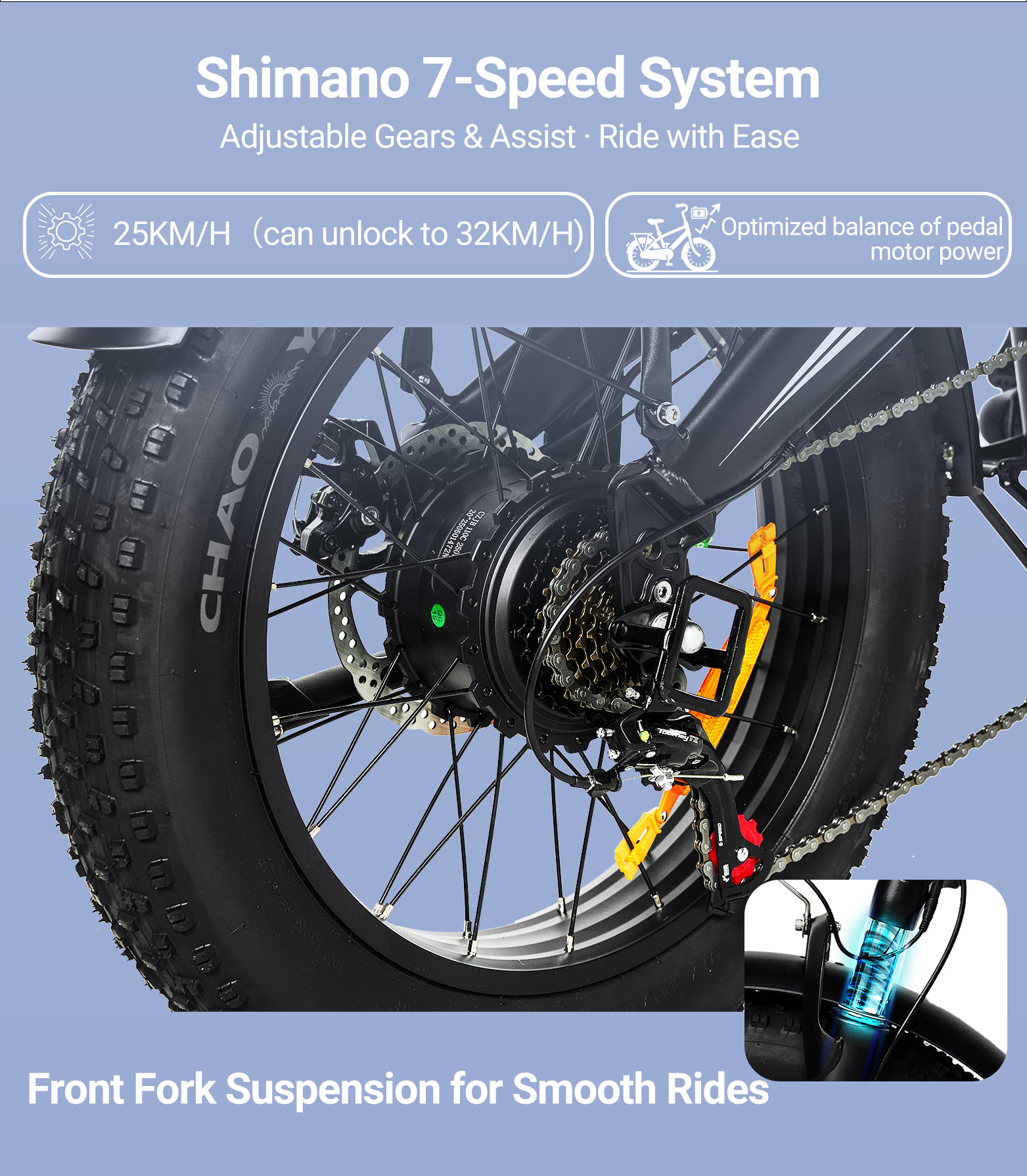

| Rear Derailleur | Shimano 7-speed (compatible with 14-28T) | |
| Front Derailleur | None (single chainring) | |
| Shifter | Shimano 7 Speed | |

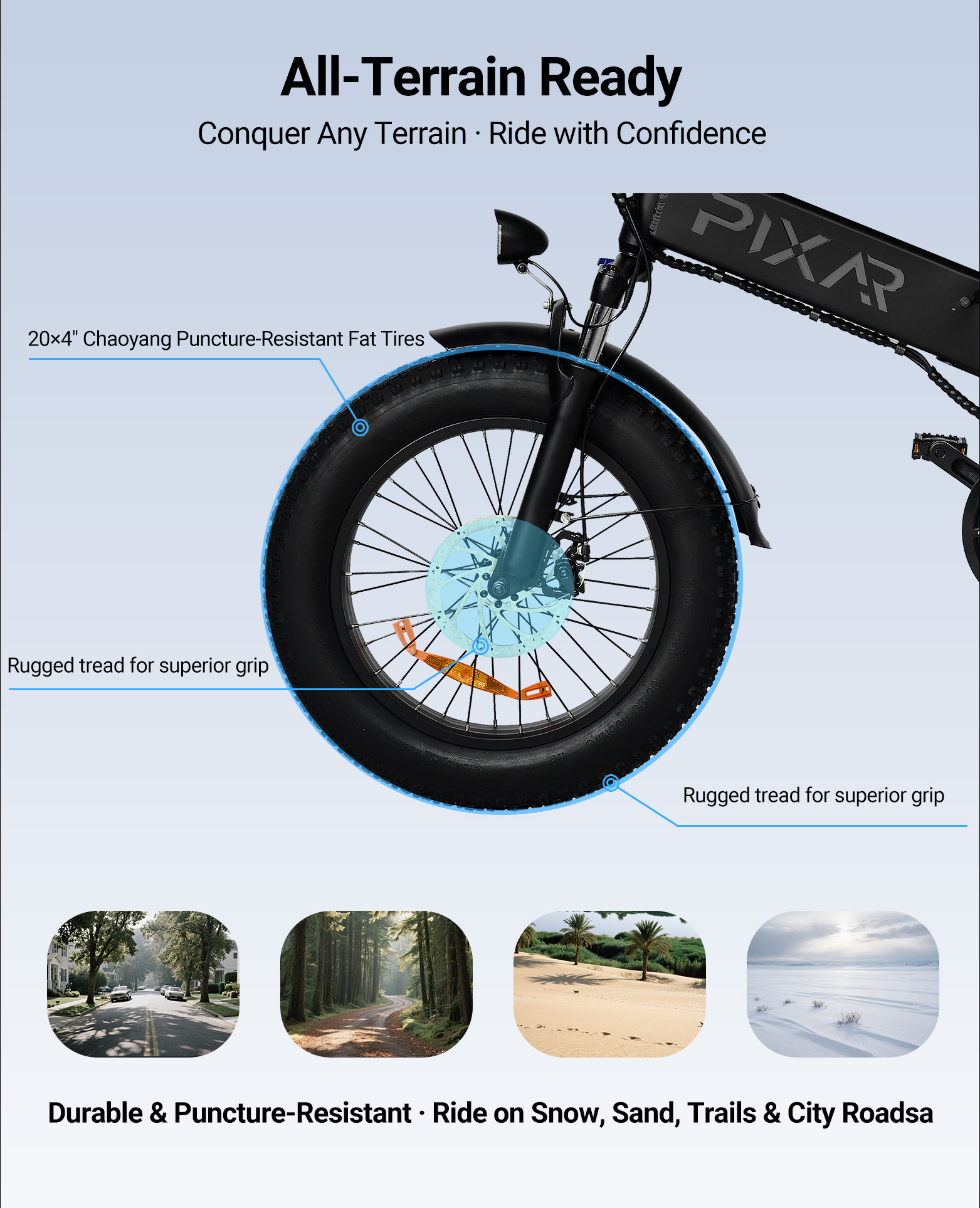

| Wheels & Tyres | Wheel Size | 20″*4 |
| Spokes | 12G × 256 mm, EN 15194 compliant | |
| Tyre Brand | Chaoyang | |
| Puncture Protection | Puncture-resistant | |
| Inner Tube | 20″ × 4.0″, A/V valve 35mm | |
| Braking System | Brake Type | Mechanical disc brakes (front & rear) |
| Brakes | Power cut-off brakes | |
| Brake Rotors | 180mm (front & rear) | |
| Brake Levers | All-aluminium, low-profile design with motor cut-off | |
| Cockpit & Components | Handlebar | Aluminum alloy riser bar, 25.2″ (640mm) width, 25.4mm stem clamp |
| Stem | Foldable stem | |
| Saddle | Comfort saddle | |
| Saddle Height Range | 900-1000 mm | |
| Seatpost | 31.8 mm aluminum alloy, angle-adjustable | |
| Quick Release | Yes (front wheel & seatpost) | |
| Pedals | Foldable Plastic Pedals | |

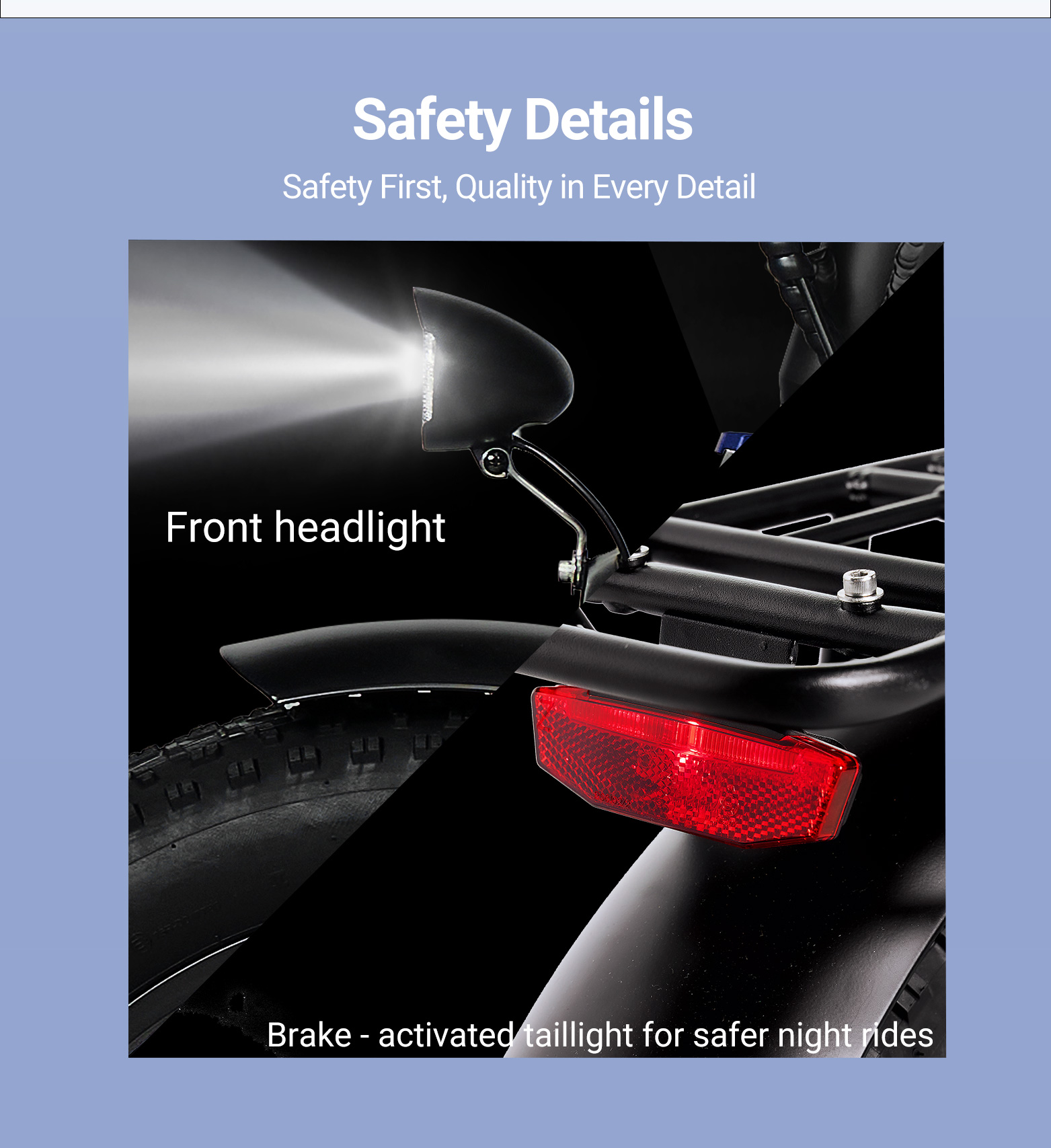

| Lighting & Safety | Headlight | Integrated headlight with waterproof disconnect |
| Taillight | Integrated taillight with waterproof disconnect | |
| Bell/Horn | With Electronic Horn | |

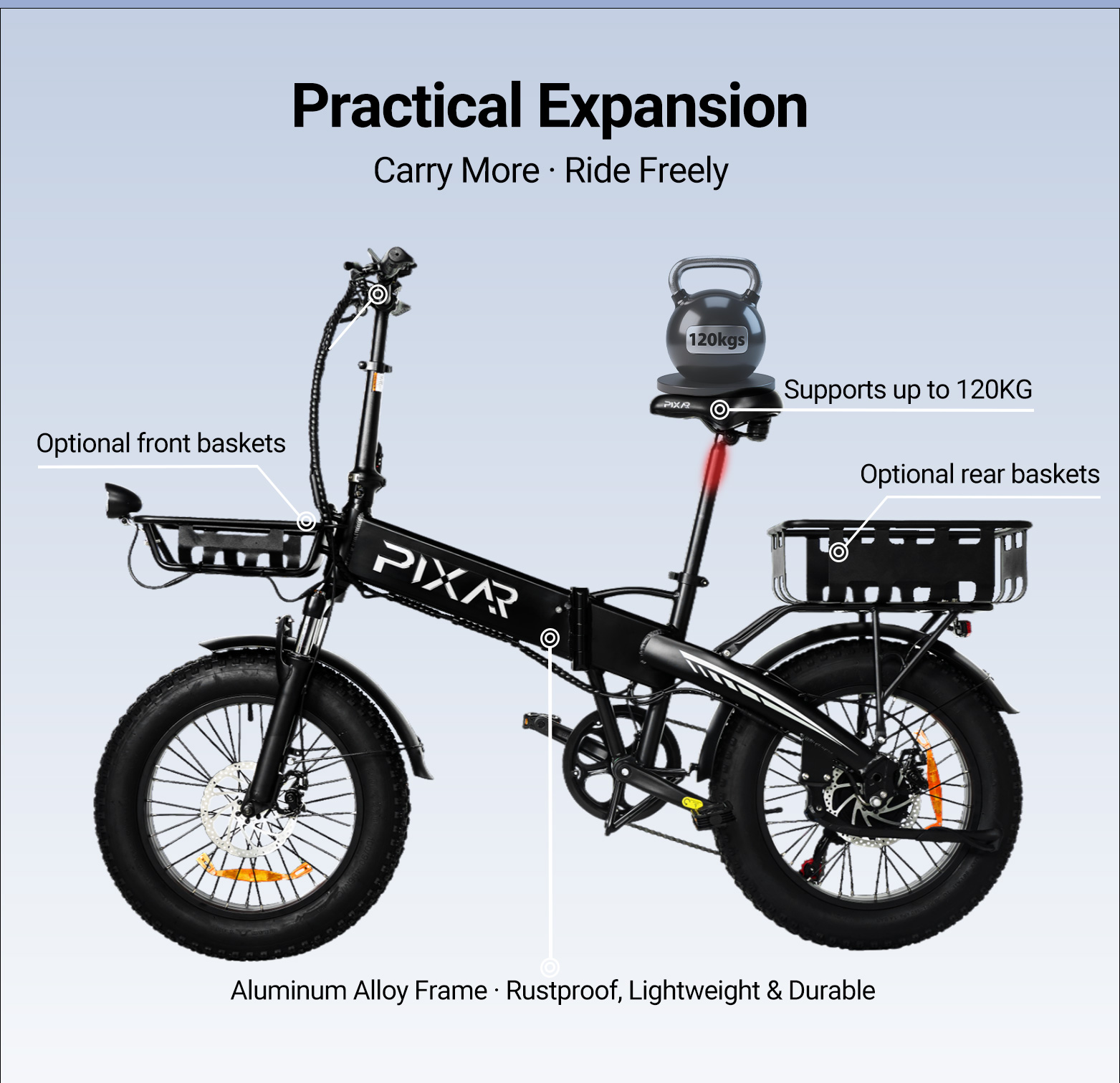

| Additional Equipment | Kickstand | Heavy-duty aluminium kickstand |
| Mudguards/Fenders | With Front & Rear Fenders | |
| Rear Rack | Yes | |
| Front Rack | Optional | |
| Baskets | None | |
| Toolkit Included | Yes (3× wrench, 1× screwdriver, 5× hex key) | |
| Certification & Compliance | EN 15194 Certified | Yes |
| Certification | CE, EN 15194, UL2271 | |
| Warranty & Support | Overall Warranty Period | 1 year limited warranty |
| Battery Warranty | 1 year from original purchase date | |
| Frame Warranty | 2 years | |
| Assembly & Delivery | Assembly Required | 90% pre-assembled (front wheel, pedals, handlebar adjustment) |
| Assembly Instructions | Multilingual manual included | |
The Pixar Star 1 Electric Bike is your reliable companion for daily commutes, weekend explorations, and sustainable travel. With powerful performance, smart features, and a foldable design, it ensures confident, stylish rides wherever you go.
