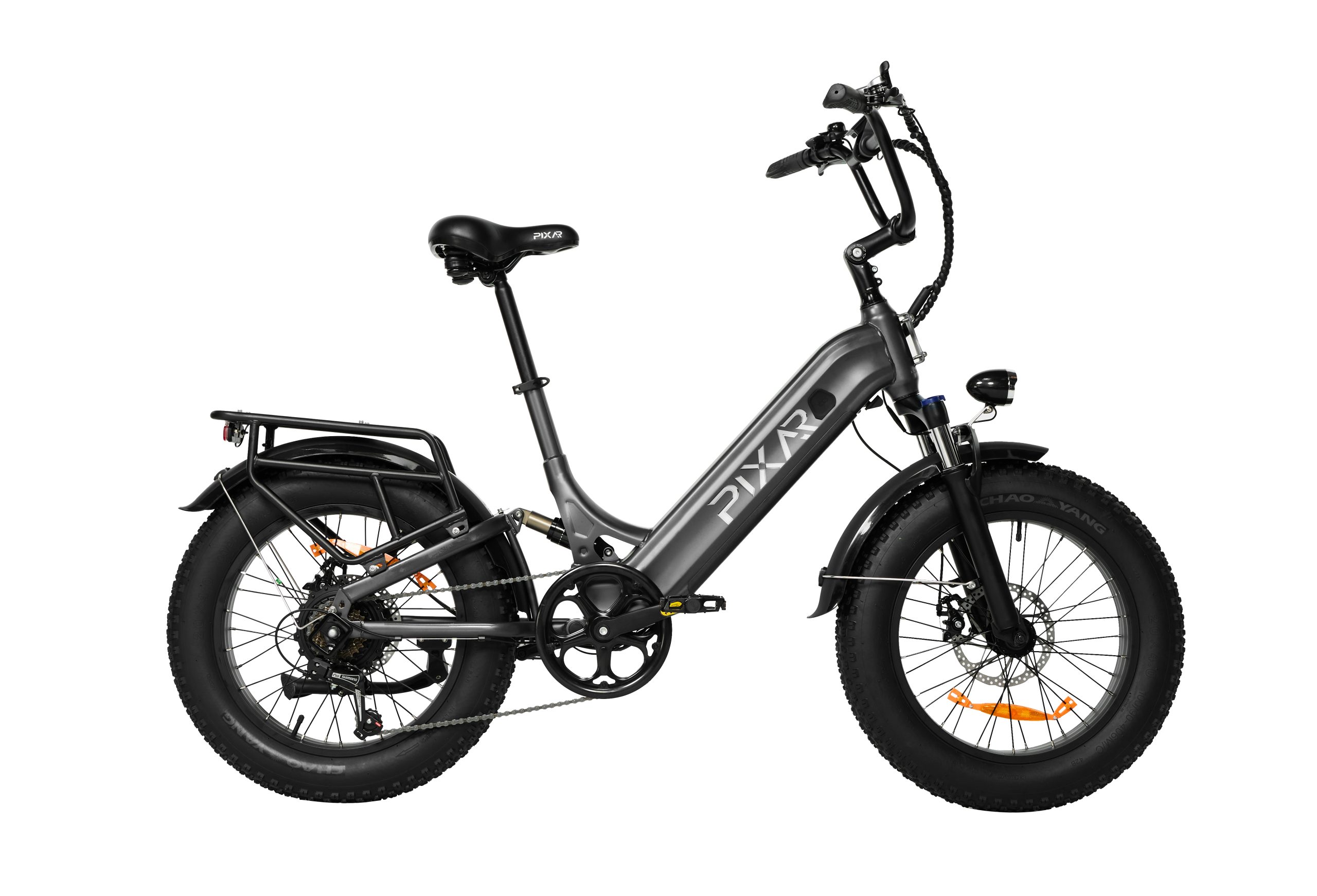

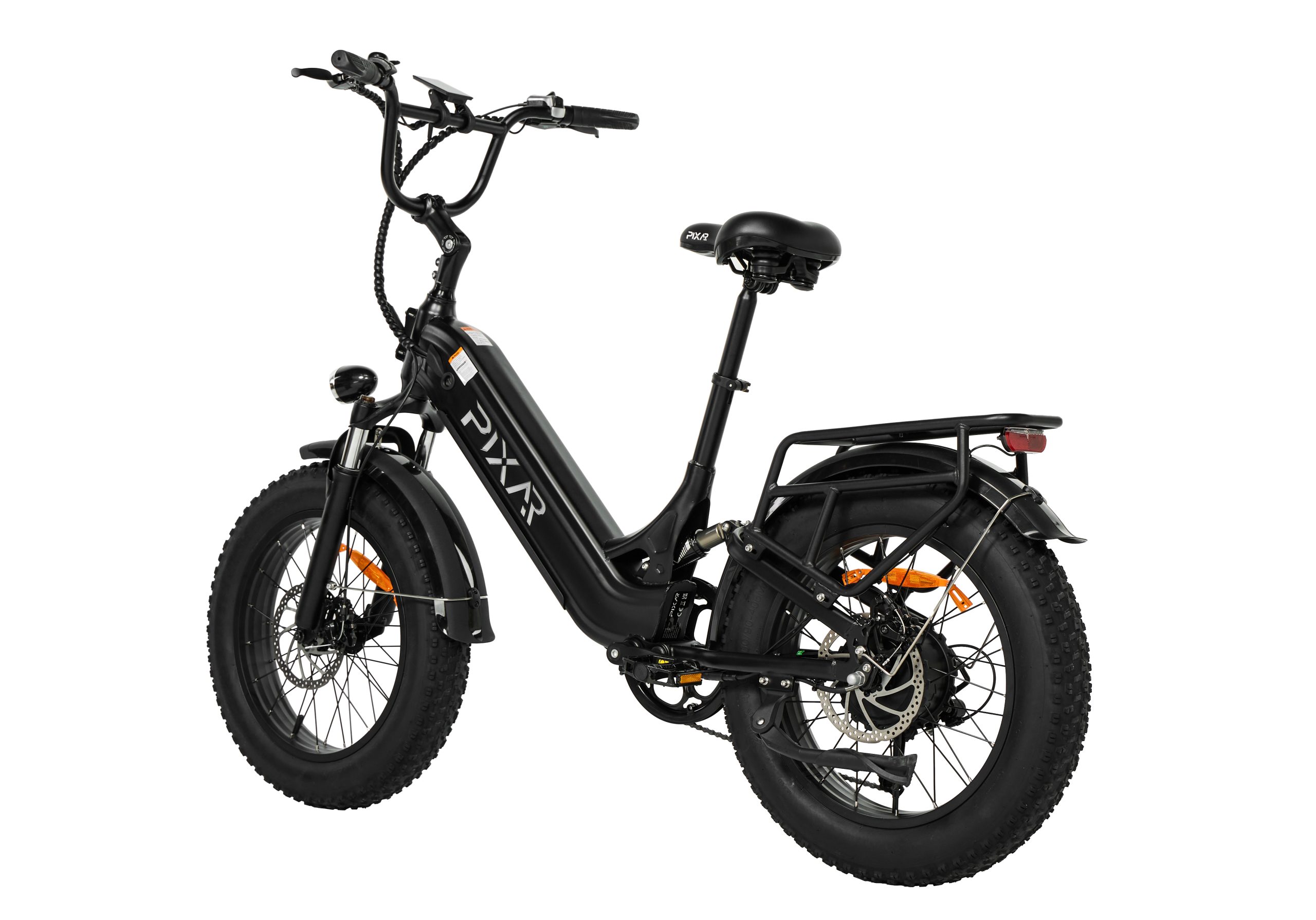

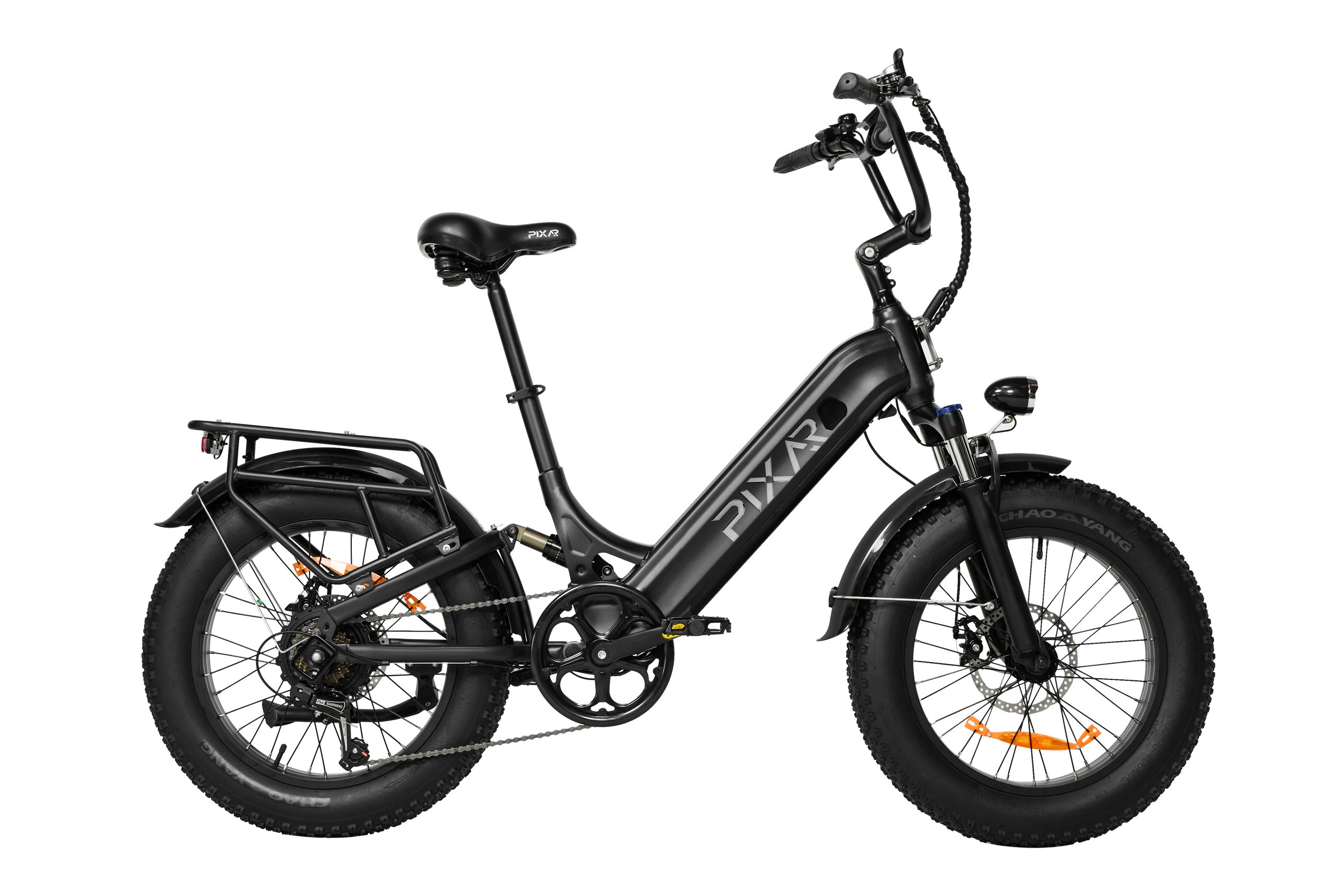

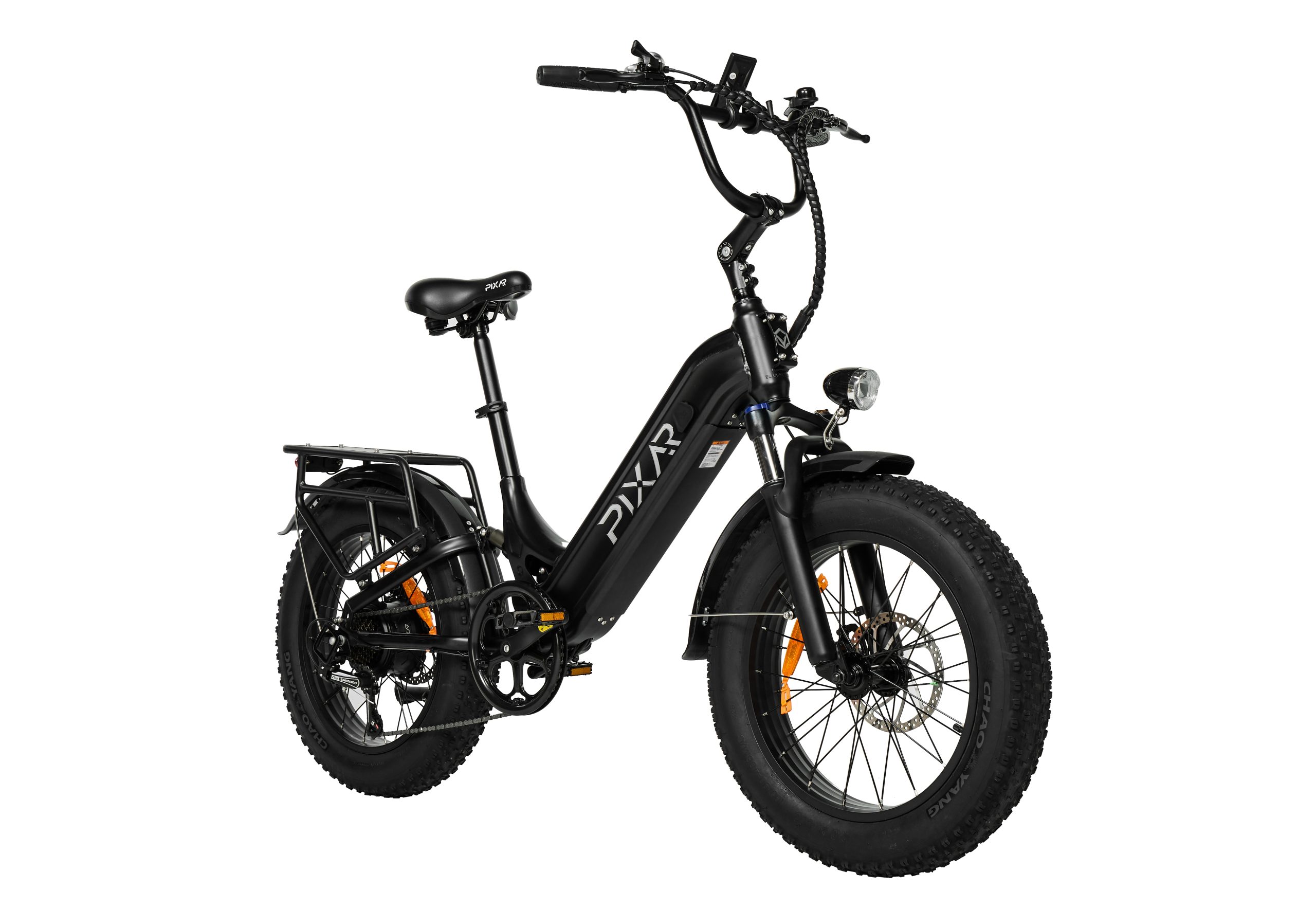

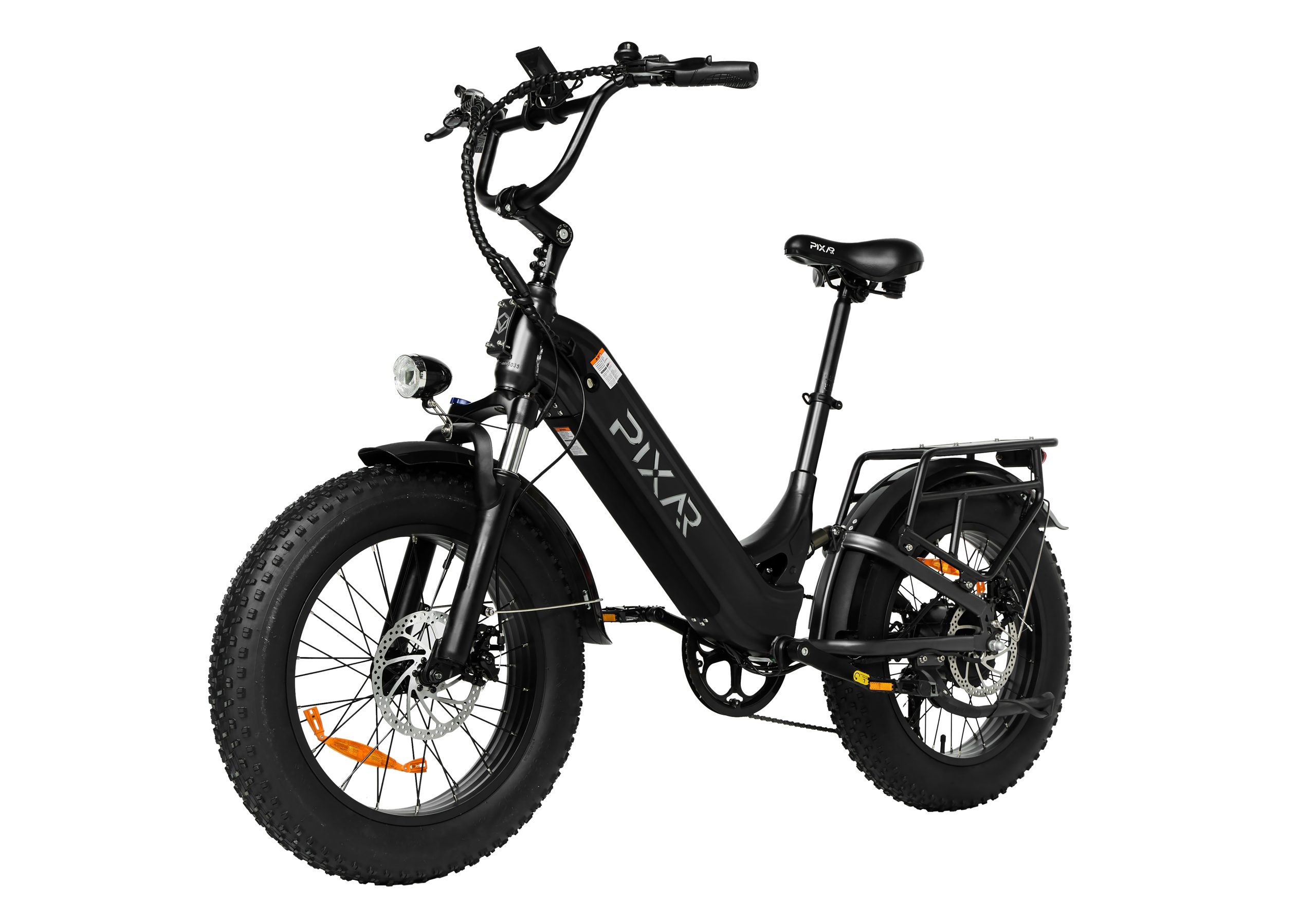

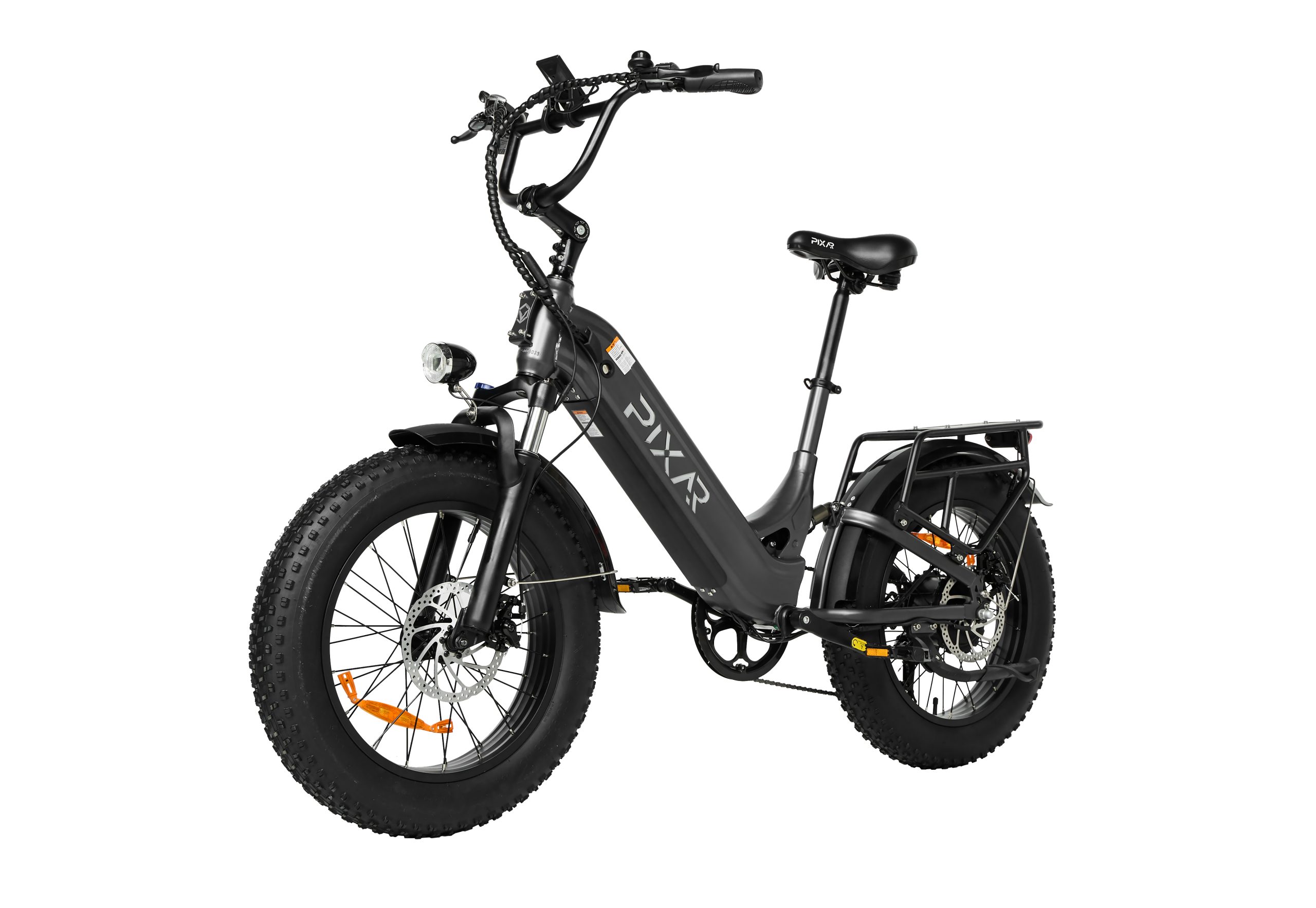

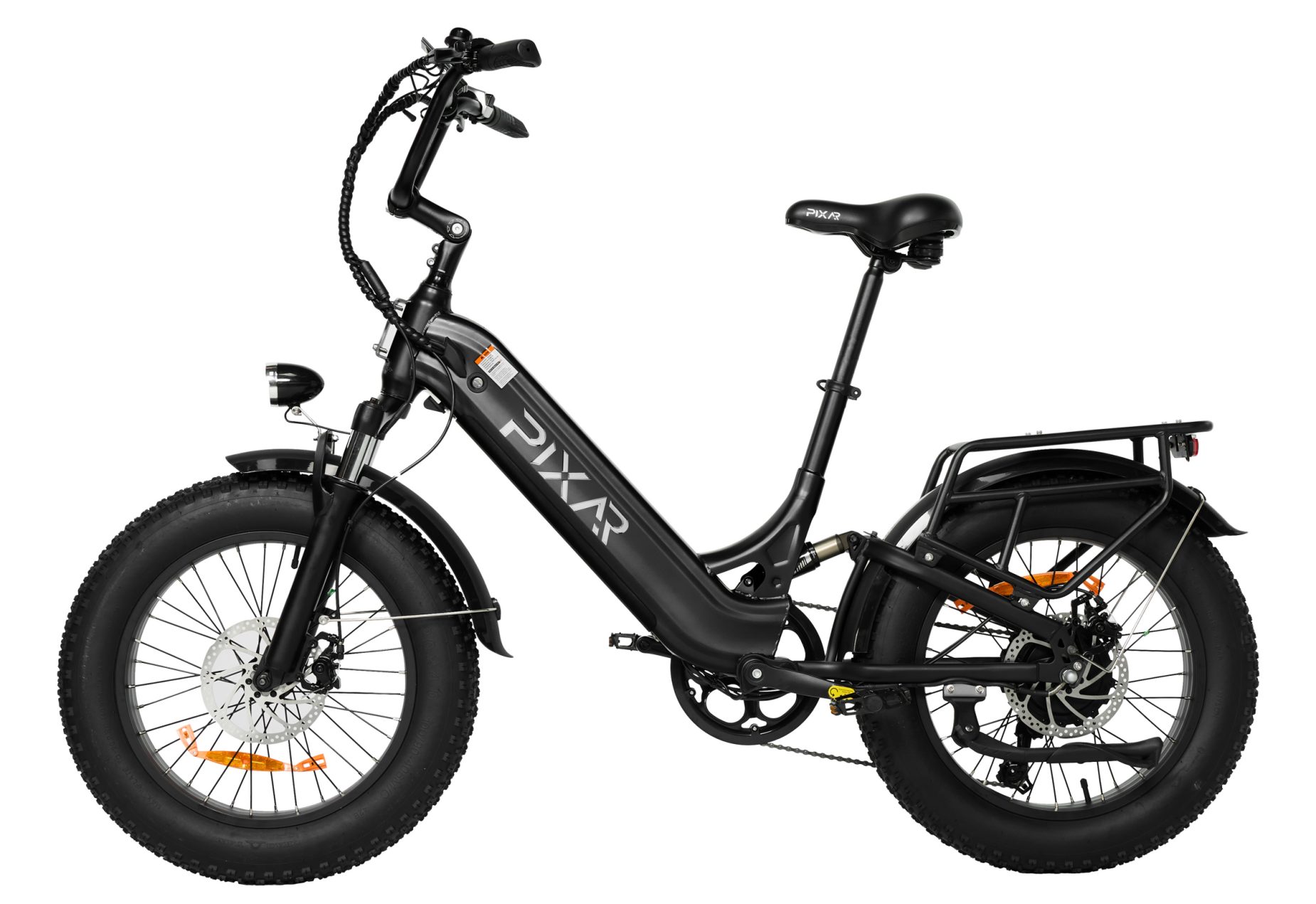

Pixar Ride1 Electric Bike is crafted for riders seeking the ideal blend of strength, style, and performance. Perfect for commuting, city cruising, or light off-road trails, it delivers reliable power and stability wherever you go.

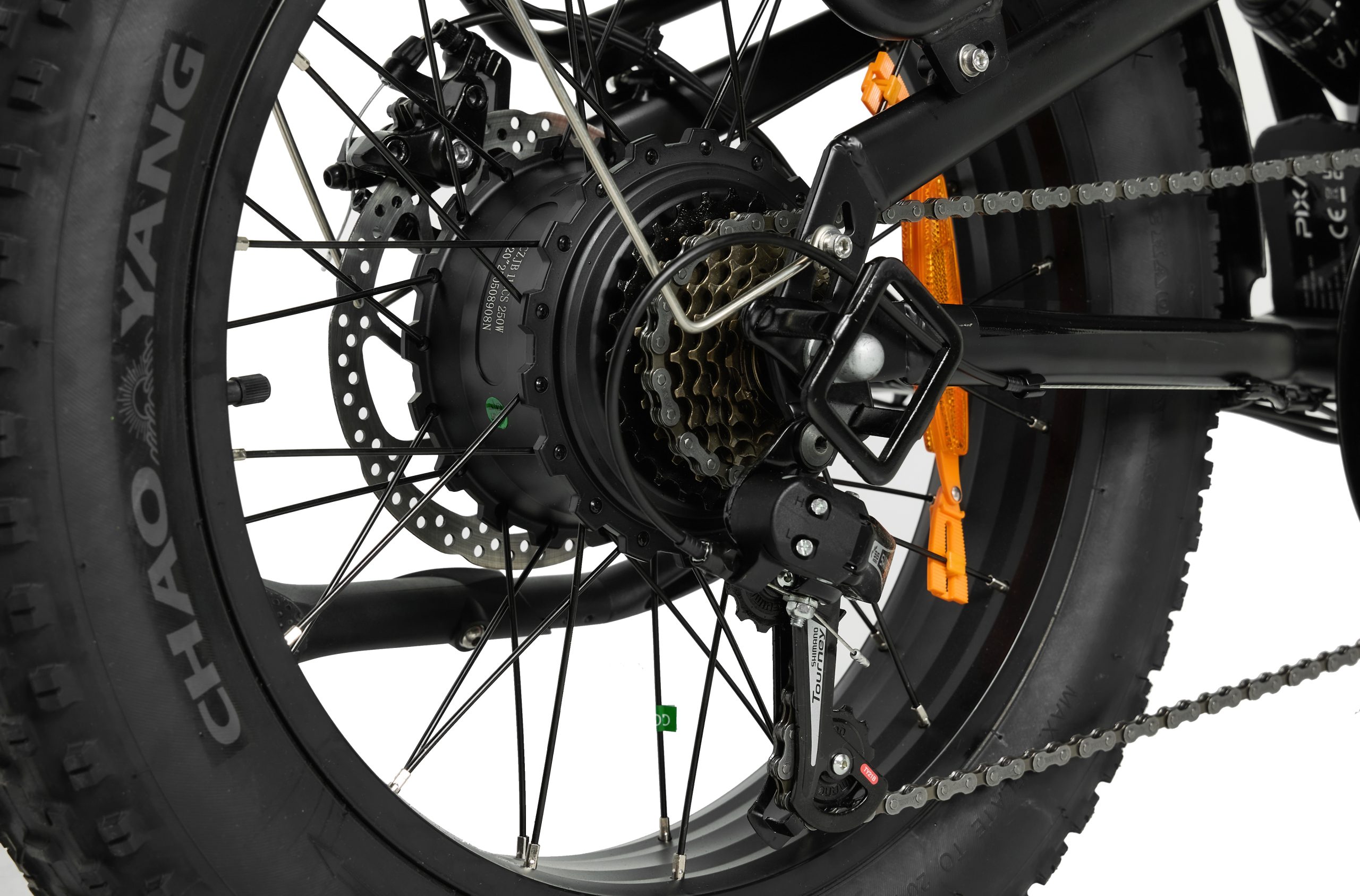

Powered by a 48V 10.4Ah lithium-ion battery with EVE cells and a 500W rear hub brushless motor (CZJB), the Ride1 offers smooth acceleration and consistent performance. Reach speeds up to 25 km/h (adjustable to 32 km/h) with a 35–45 km range in pedal-assist mode.

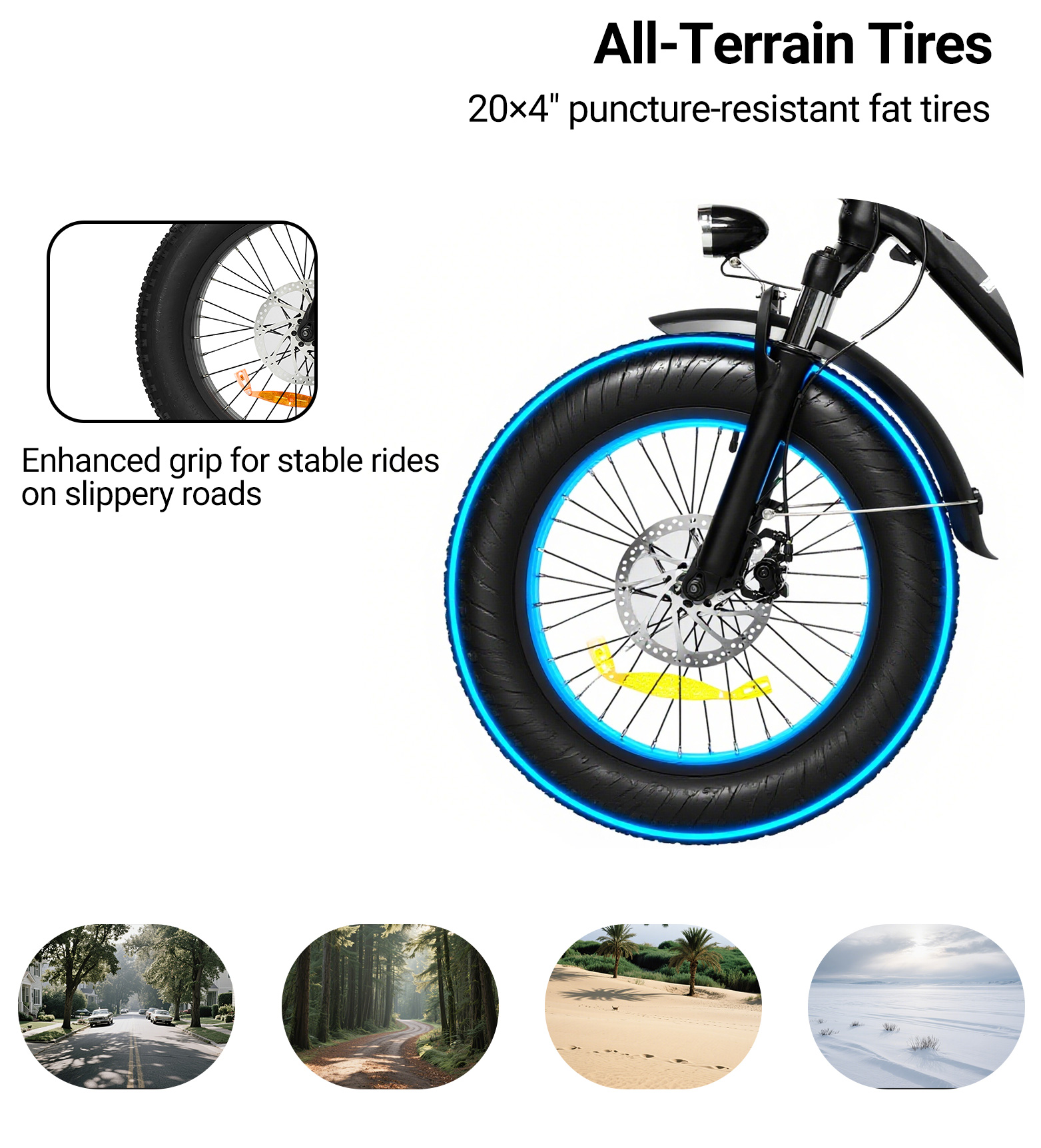

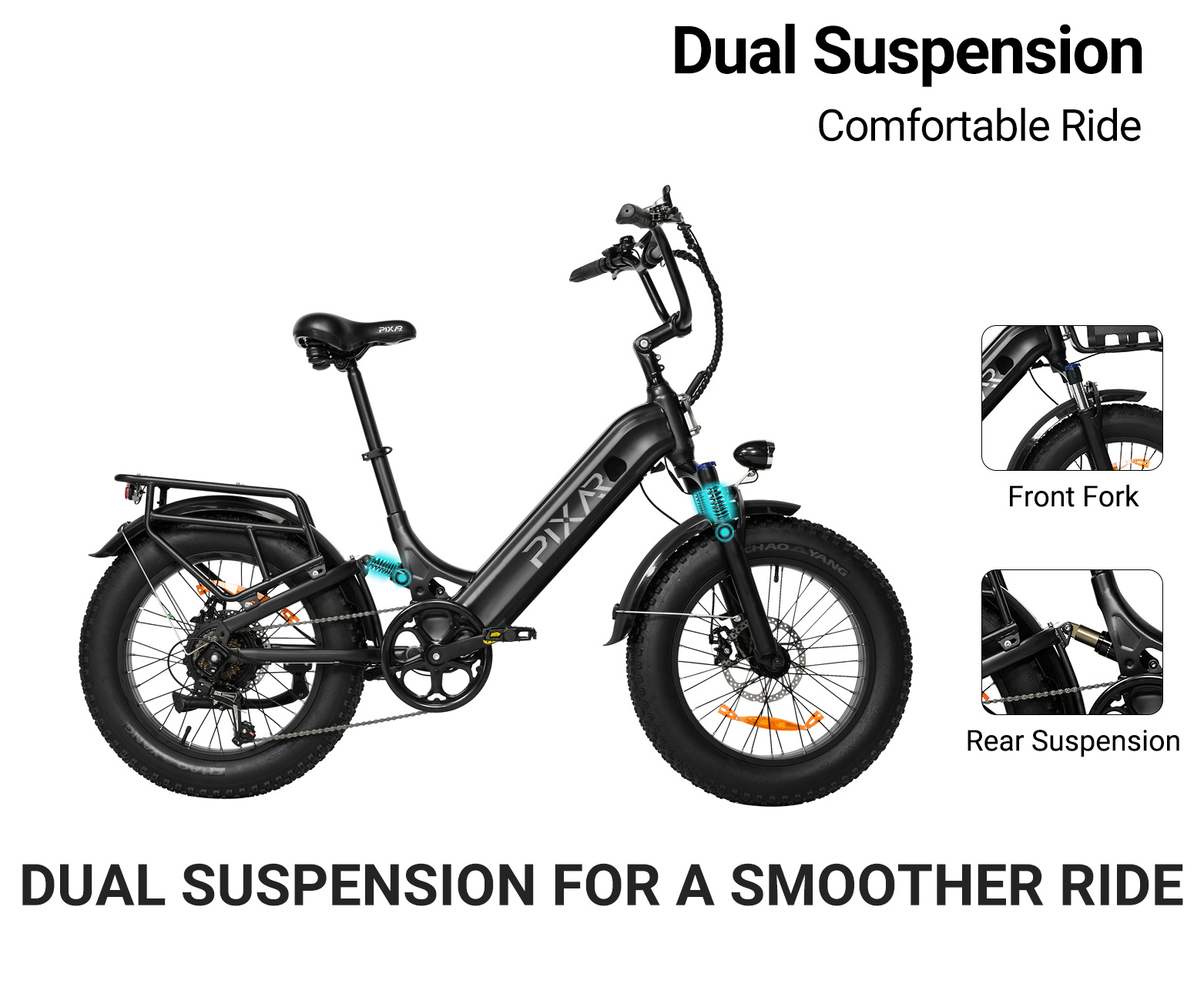

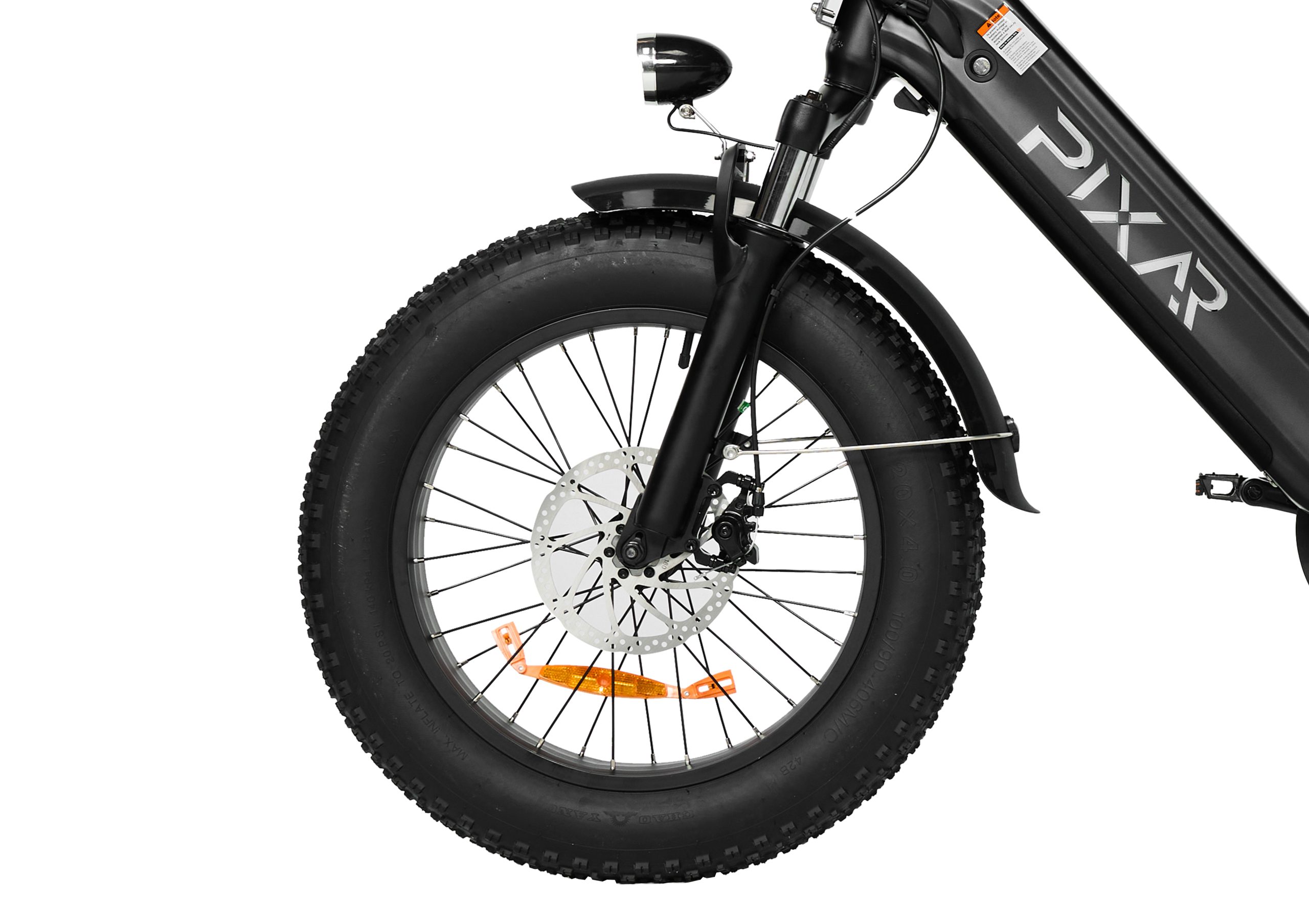

Conquer varied terrain with confidence thanks to 20” x 4” Chaoyang fat tires featuring puncture resistance. The full dual suspension system—adjustable front fork and rear shock—absorbs bumps for a plush, controlled ride.
Shift effortlessly with the Shimano 7-speed drivetrain, stop securely using mechanical disc brakes (180mm rotors, front & rear), and monitor your ride via the clear LCD display with Type-C charging port. Five assist levels, walk-assist mode, and a half-twist throttle put full control at your fingertips.

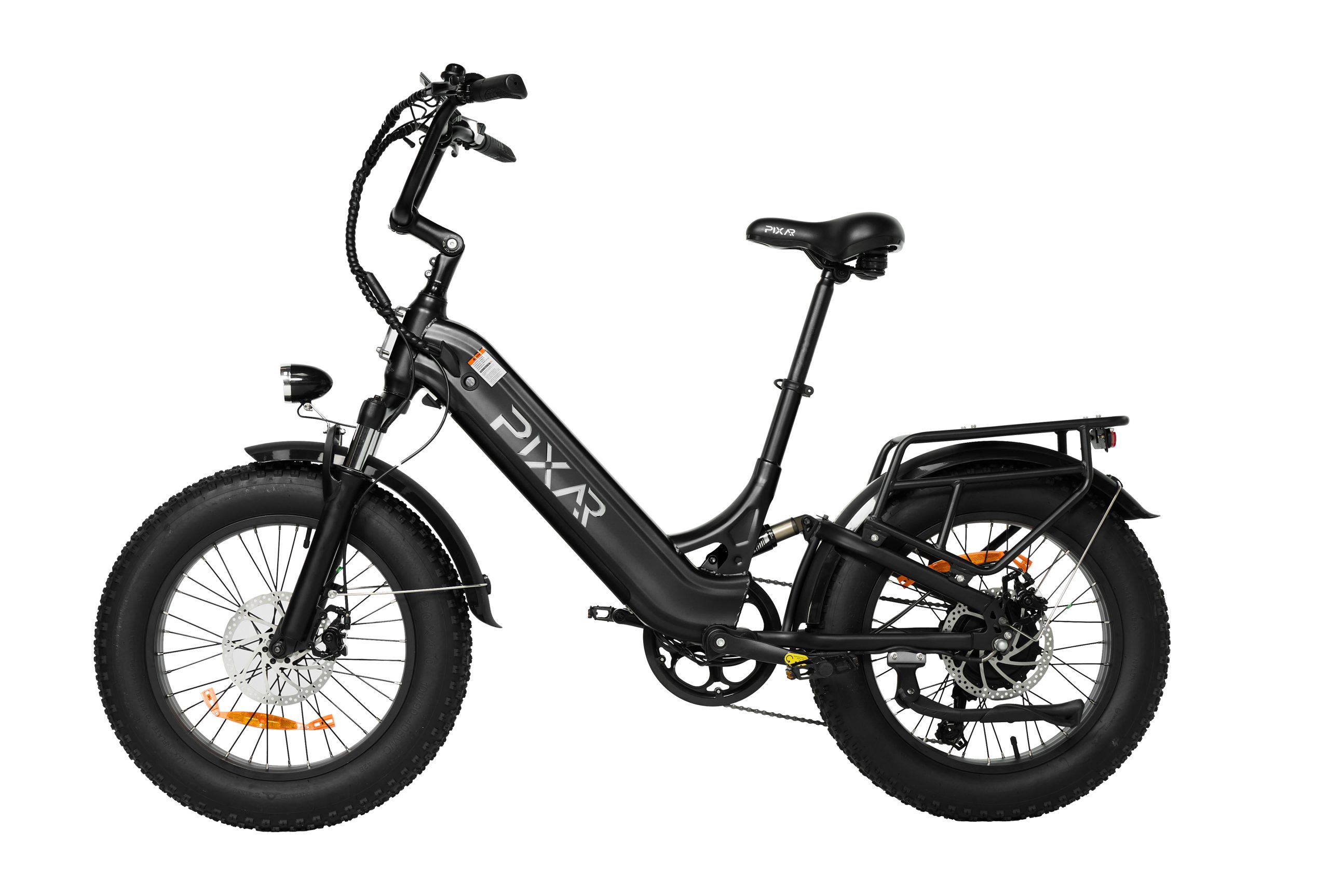

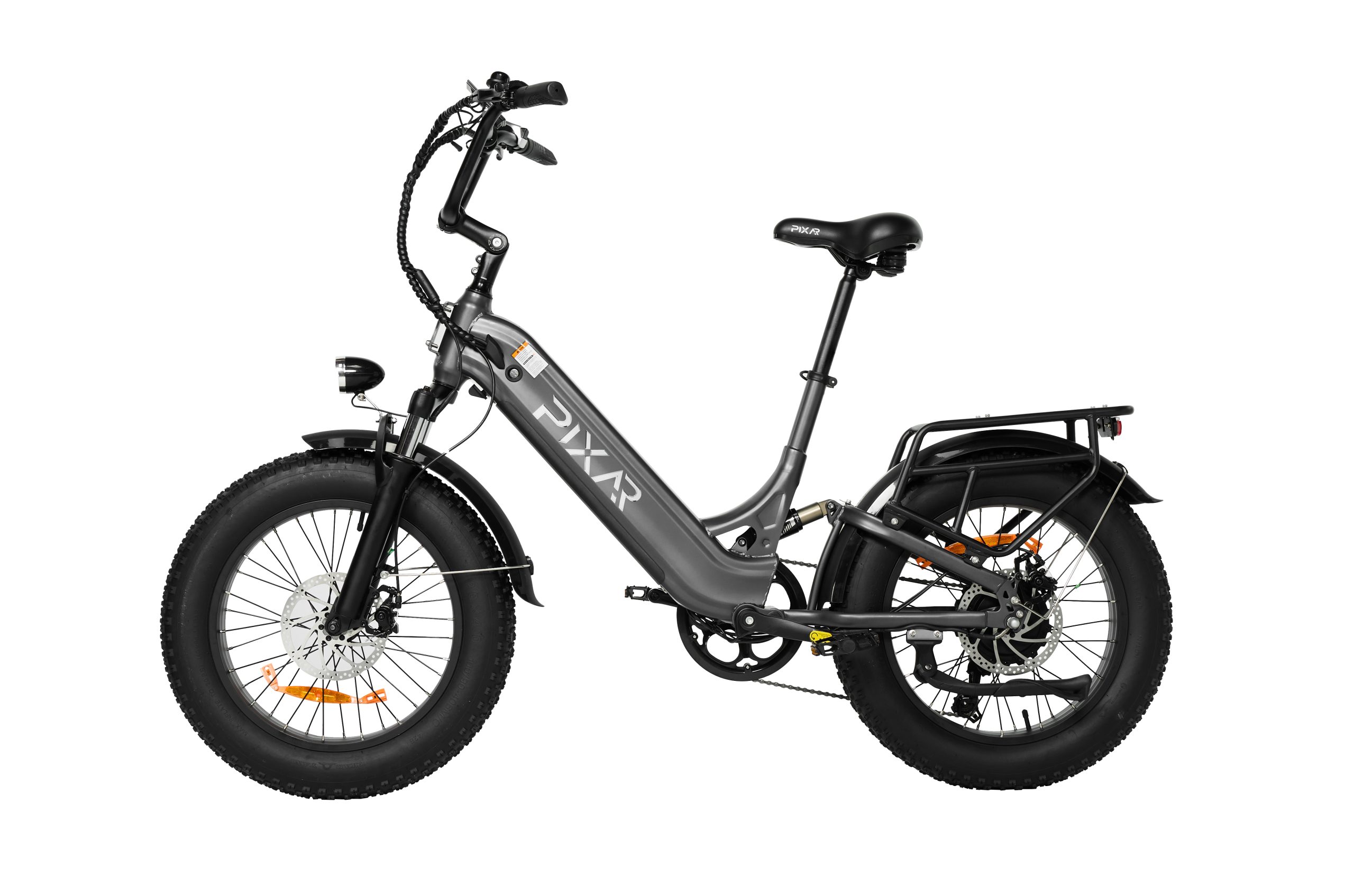

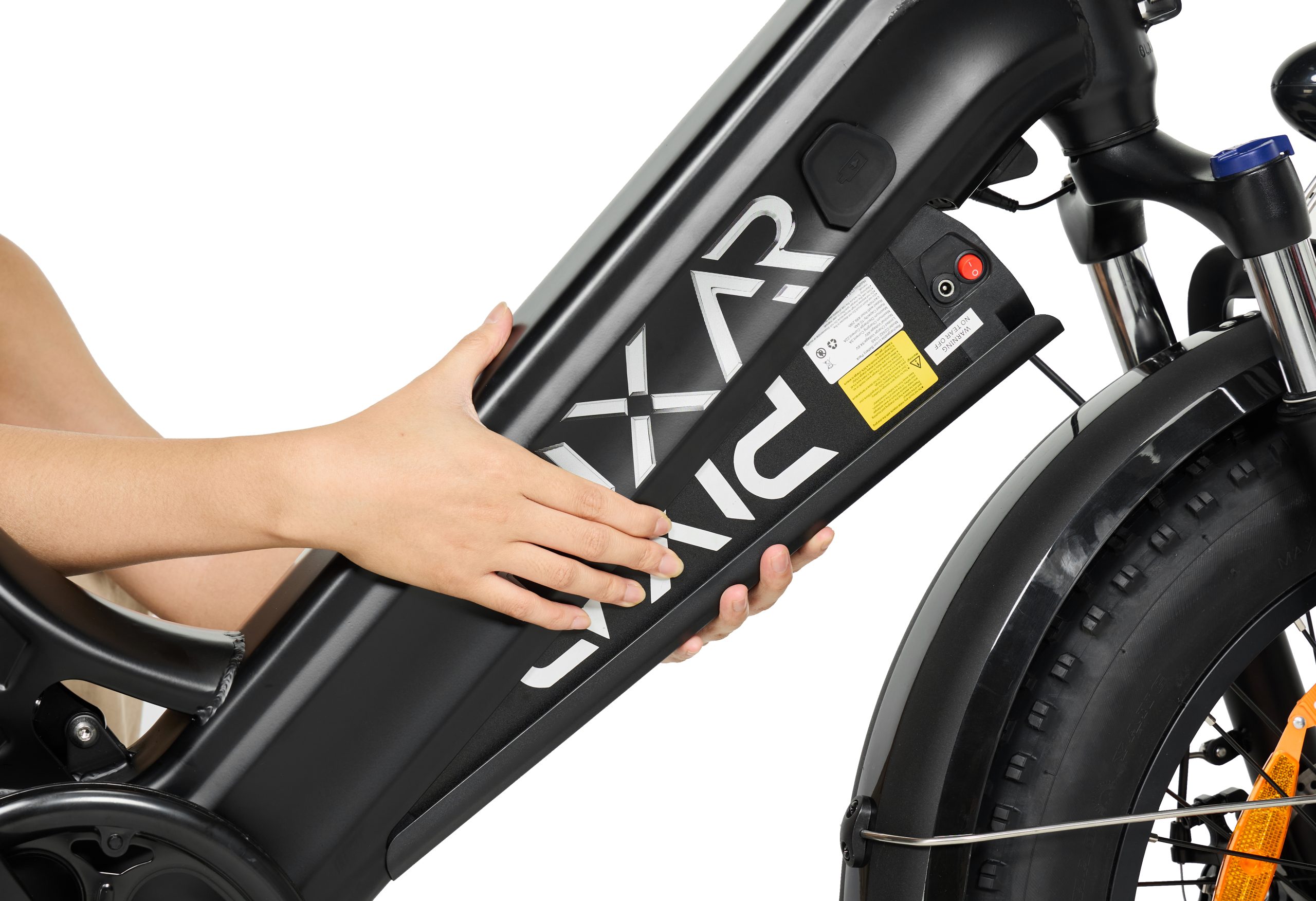

Built on a durable high-quality steel step-through frame, it supports up to 120 kg and suits riders 155–190 cm tall. The removable IP65-rated battery charges in 4–6 hours, while IP54 overall waterproofing ensures all-weather reliability.

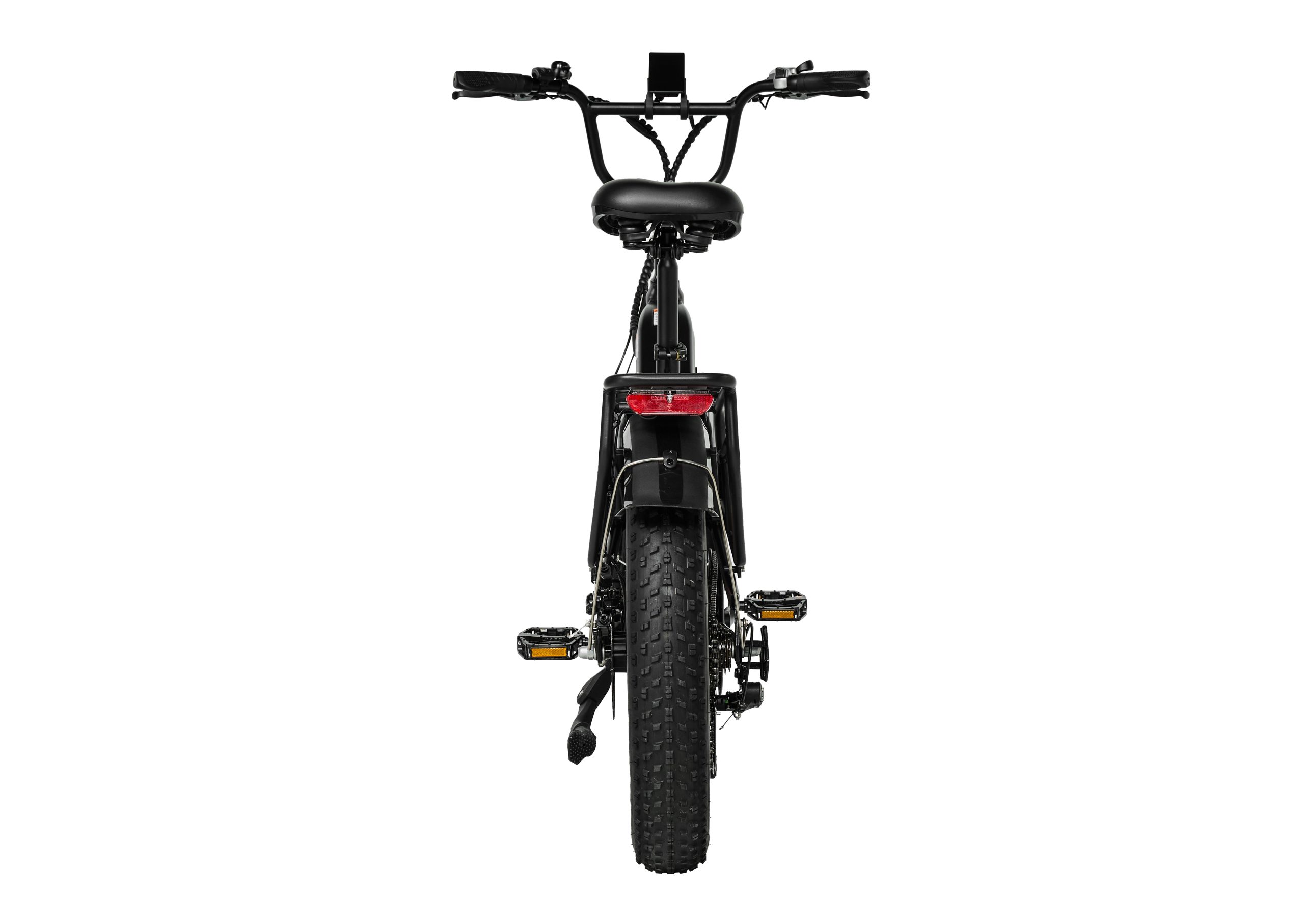

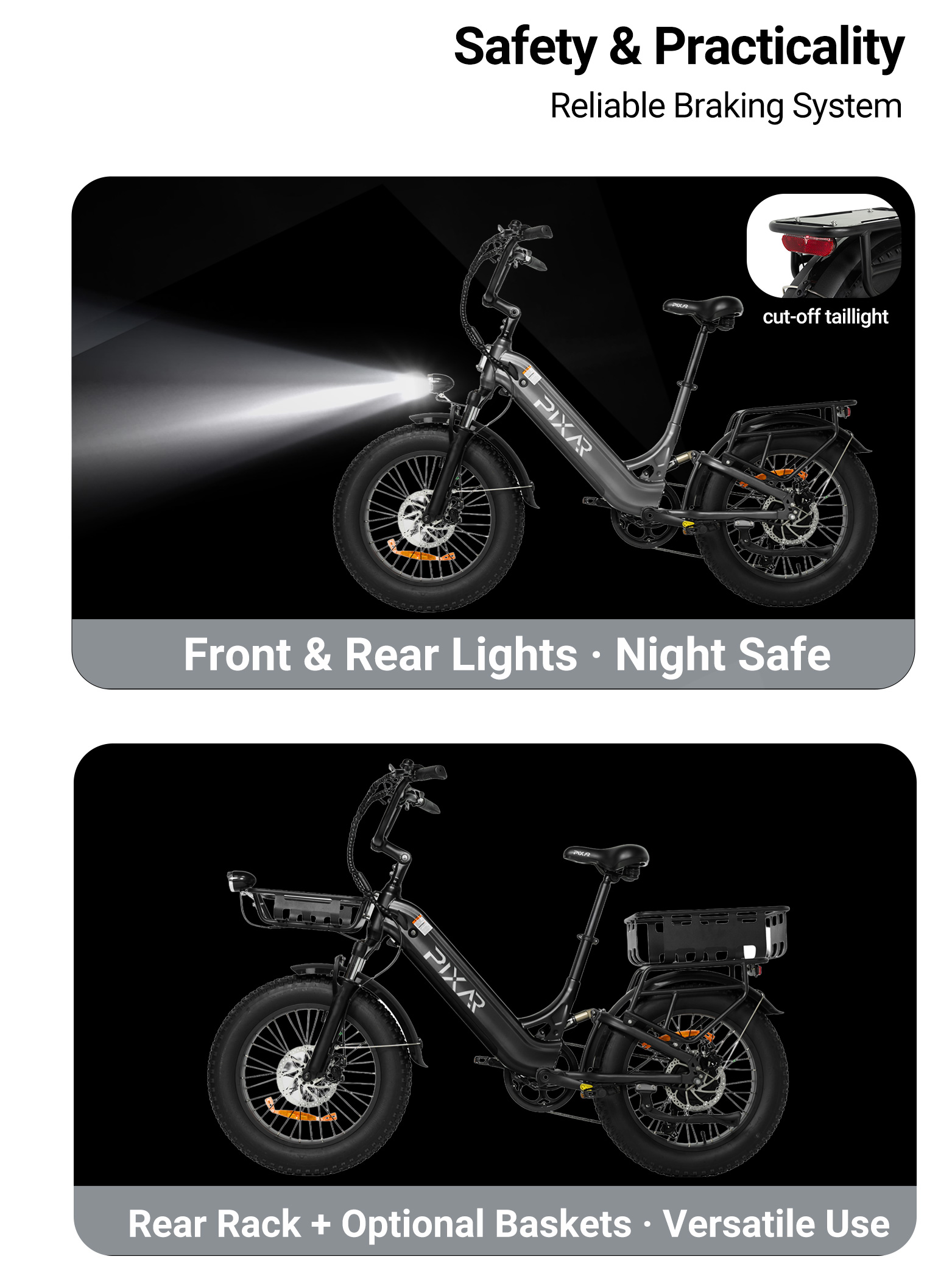

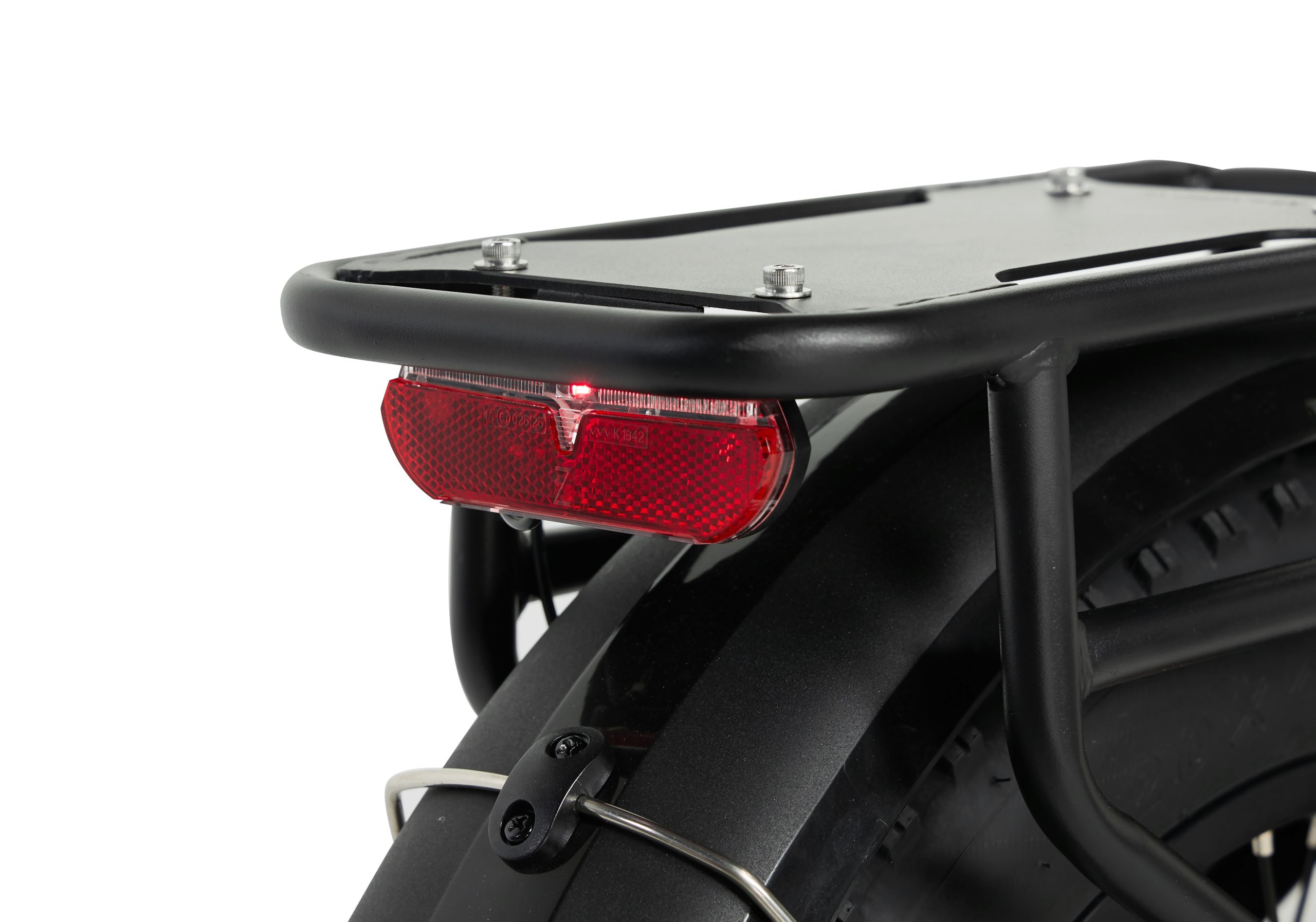

Practicality meets style with a black & grey finish, integrated front & rear lights, full fenders, steel rear rack (front rack optional), and a mechanical bell. A heavy-duty kickstand and included toolkit make setup and maintenance simple.
Key Features:

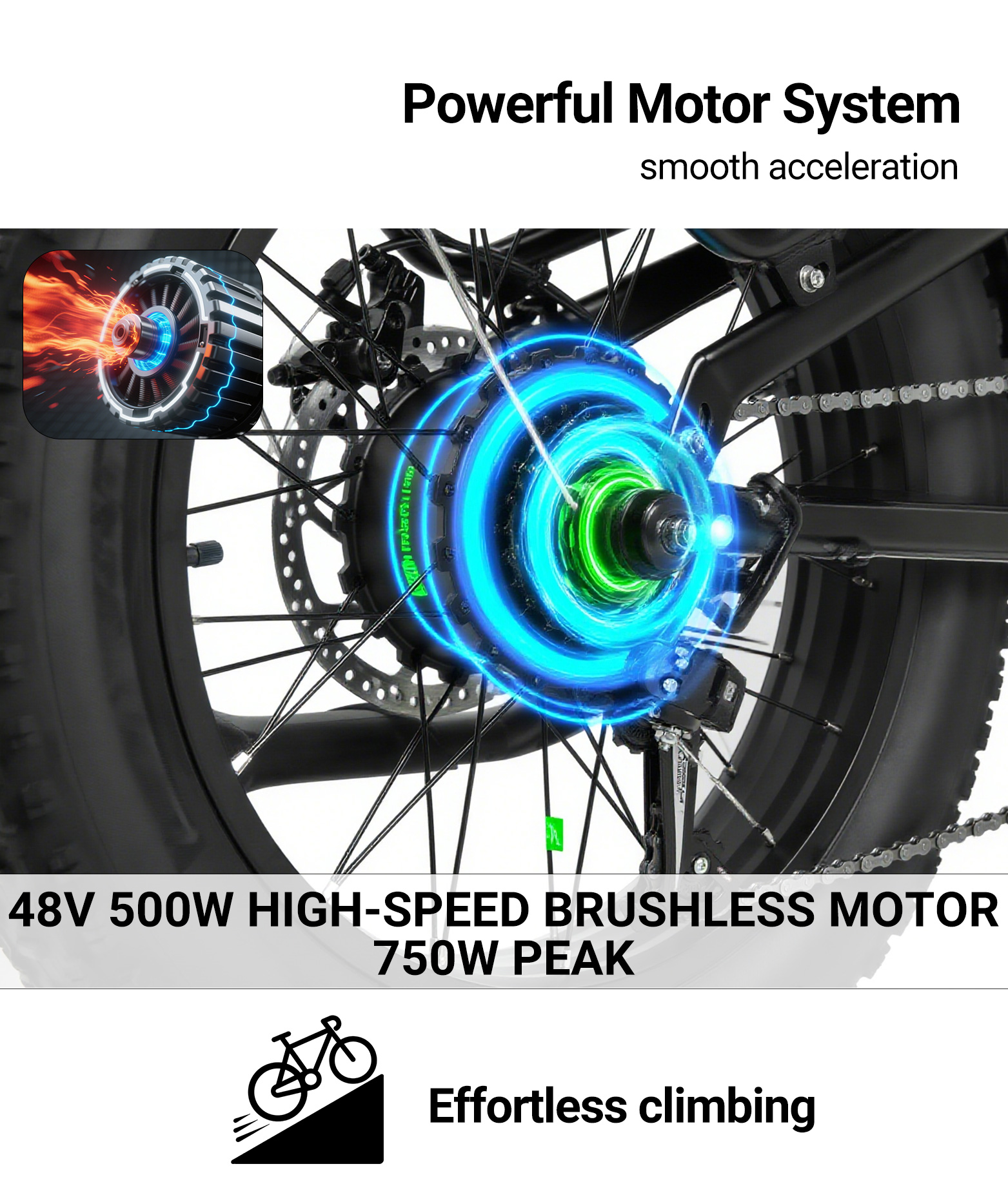

- Powerful 500W Motor: Top speed 25 km/h (adjustable to 32 km/h), climbs up to 15°.

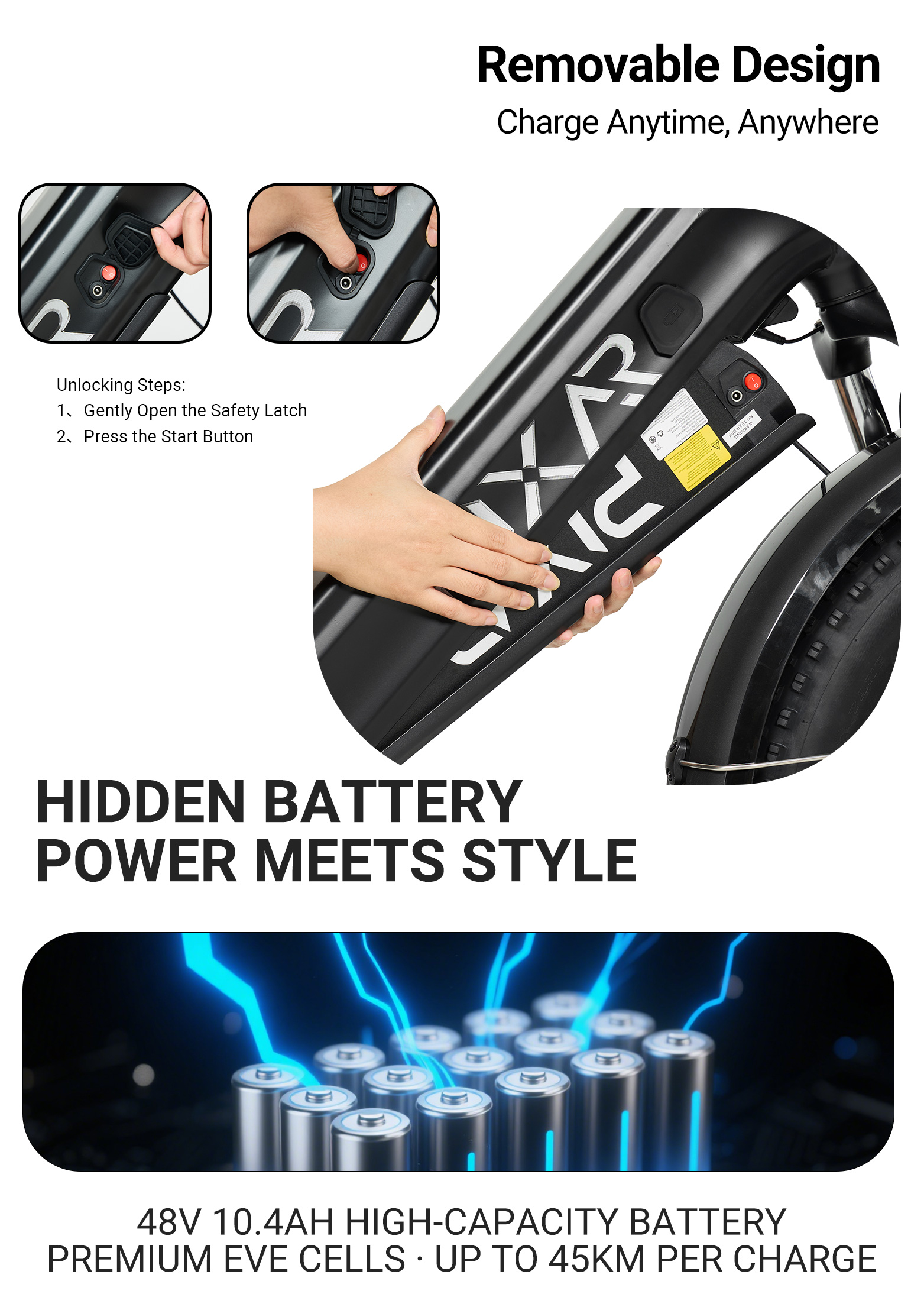

- Long-Range Battery: 48V 10.4Ah EVE cells, 35–45 km per charge, removable & fast-charging.

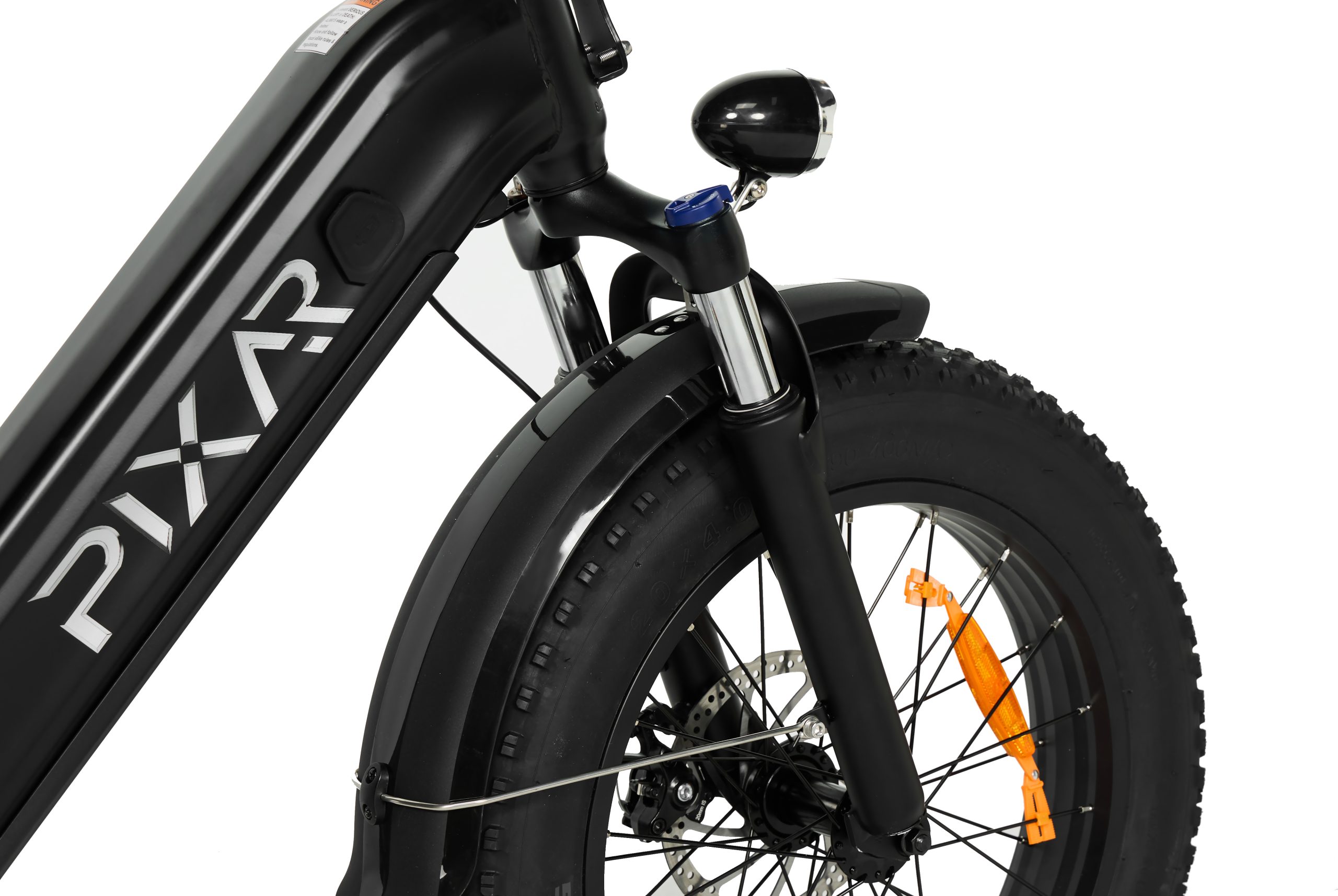

- Smooth Suspension: Adjustable front fork + rear shock, paired with fat tires for superior comfort.
- Robust Frame: High-quality steel, 120 kg max load, step-through design.
- Safe Braking: Mechanical disc brakes with power cut-off, 180mm rotors.
- Ready to Ride: LCD display, 7-speed Shimano gearing, lights, fenders, rear rack, and toolkit included.
Specifications:
| Pixar Ride E-bike – Product Parameters (European Market) | ||
| / | Parameter | Value |
| General Specifications | Range | 35-45 km (pedal assist mode) |
| Top Speed | 25 km/h (Pedelec limit, adjustable to 32 km/h) | |
| Dimensions | 175 × 69 × 120 cm (L × W × H) | |
| Max Load Capacity | 120 kg | |
| Net Weight | 36.4 kg | |
| Gross Weight | 43.5kg | |
| Packing Dimensions | 145 x 30 x 77cm | |
| Qty for 1×40HQ Container | 196 pcs | |
| Recommended Rider Height | 155-190 cm | |
| Colour Options | Black & Grey | |
| Foldable | No | |
| IP Rating | IP54 | |
| Operating Temperature | -10°C to +45°C | |
| Bike Category | Leisure/City/Urban Commuter | |
| Battery System | Battery Capacity & Type | 48V 10.4Ah Lithium-ion (EVE cells) |
| Battery Weight | 3kg | |
| Removable Battery | Yes | |
| Battery IP Rating | IP65 | |
| Battery Certification | EN 62133 compliant | |
| Charging Time | 4-6 hours (max 6 hours) | |
| Charger | 54.6V 2A smart charger | |
| Motor & Drive System | Motor Type | Rear hub brushless motor |
| Motor Brand | CZJB | |
| Motor | 48V500W high-speed rear hub motor | |
| Maximum Climbing Gradient | 15° (approx. 27% grade) | |

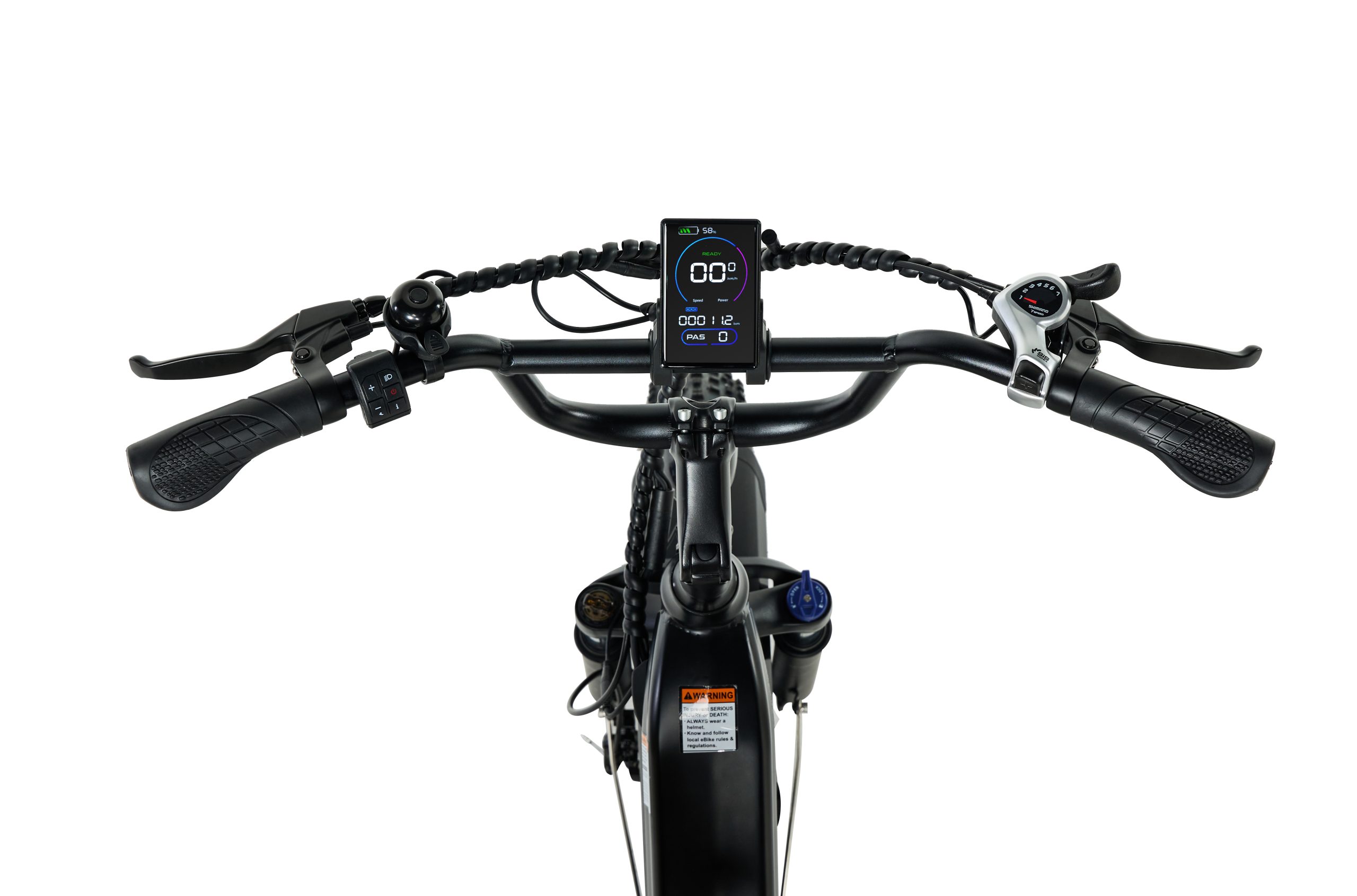

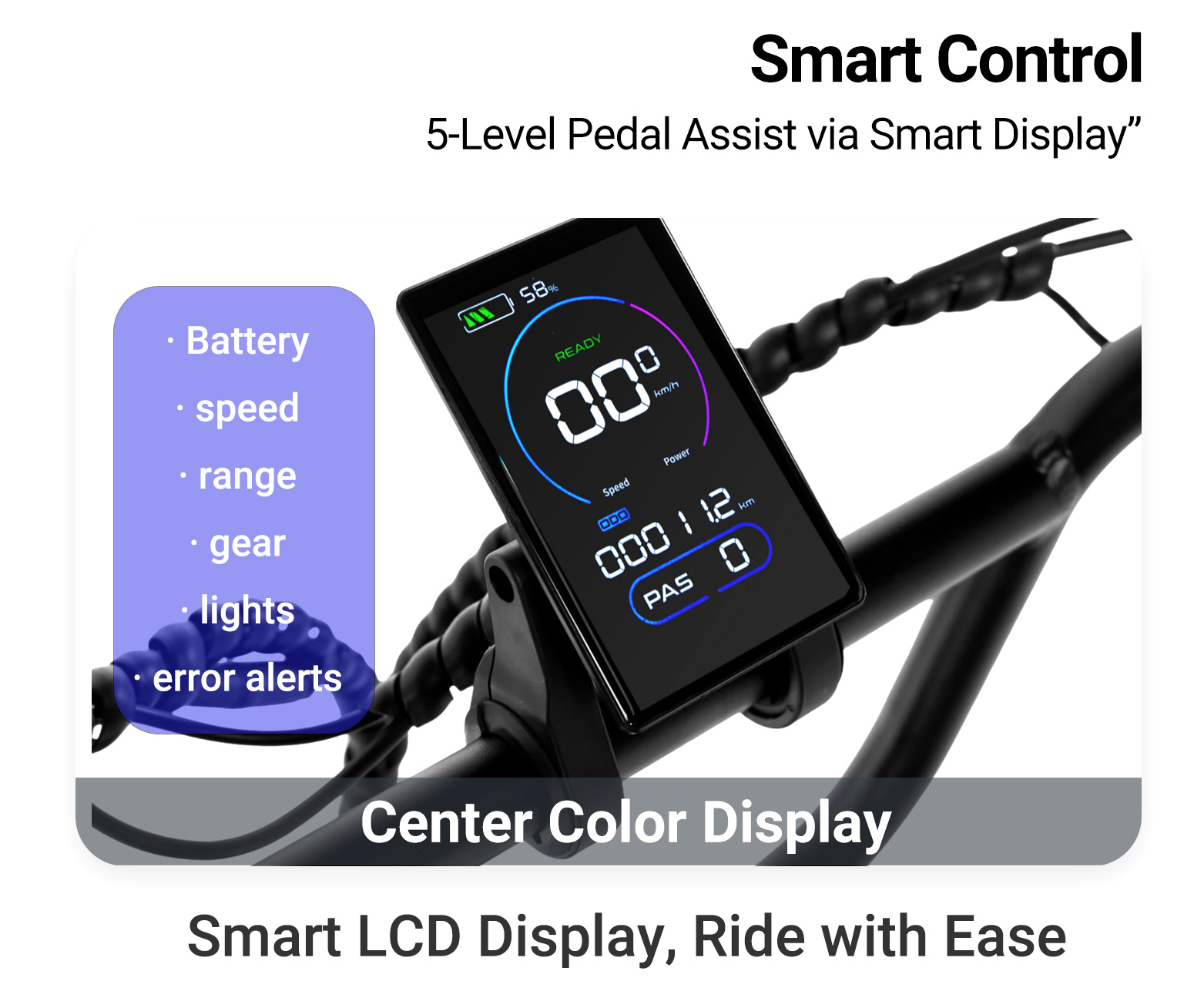

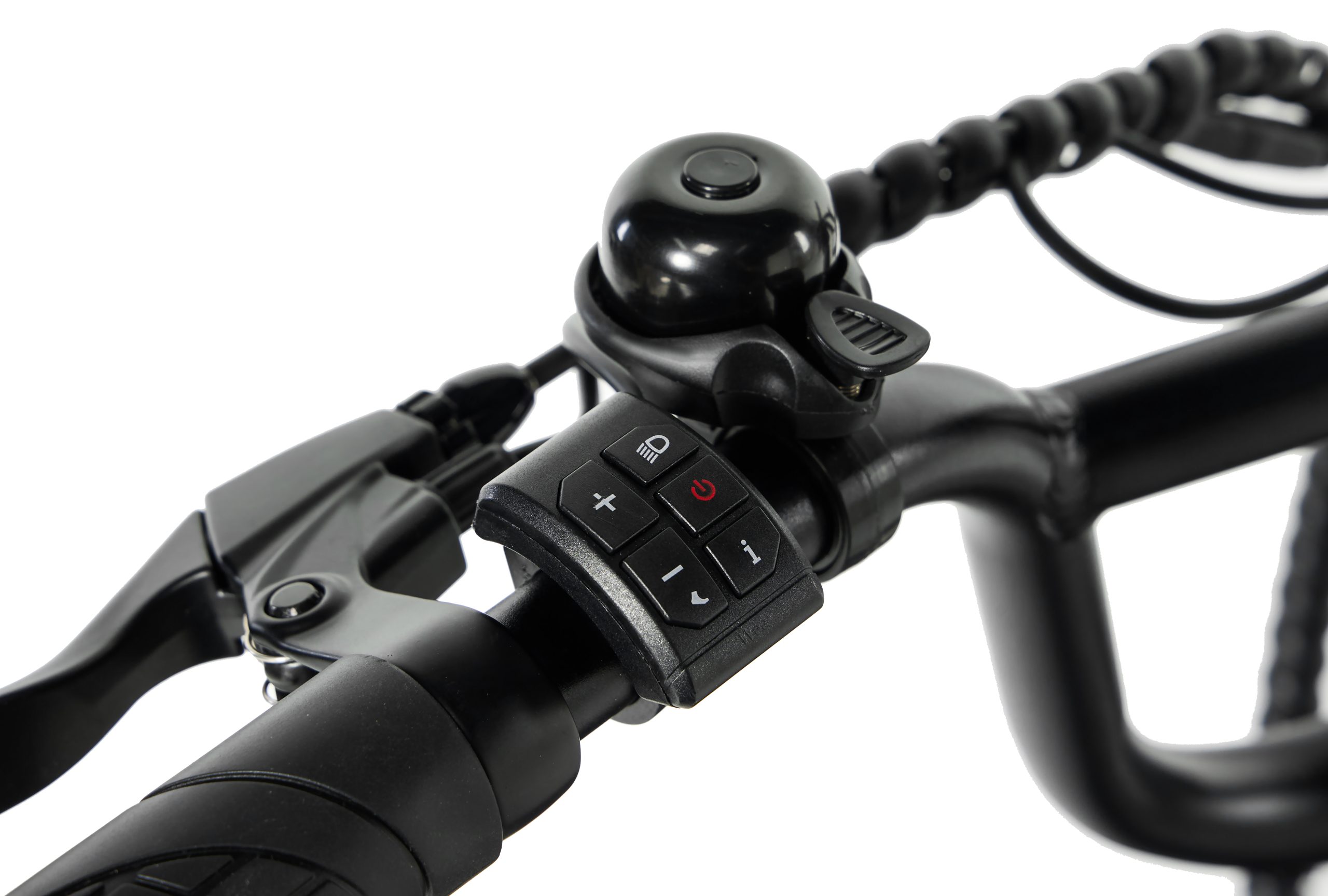

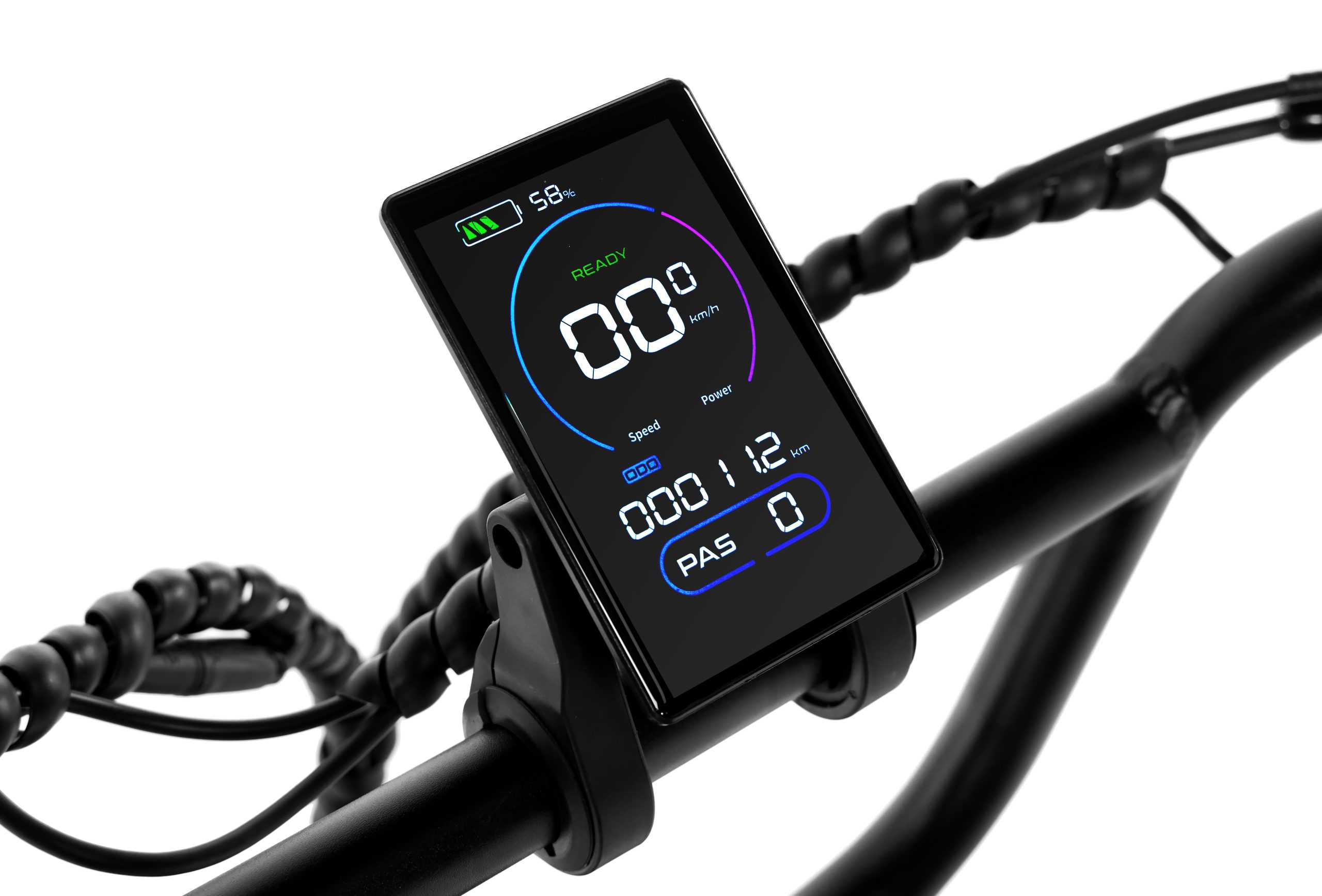

| Control System | Display | SW-K618 + TYPE C |
| Assist Levels | 5 levels (0-5) | |
| Throttle | Half-twist throttle | |
| Sensors | Speed sensor (12-magnet) | |
| Charging Port | Yes (Type-C on display) | |
| Walk Assist Mode | 6 km/h (hold “-” button) | |
| Backlight | Yes | |
| Frame & Fork | Frame Material | High Quality Steel |
| Frame Type | Step-through (low-step) | |
| Front Suspension | Adjustable shock absorber | |
| Front Fork | Suspension fork with disc brake mount | |

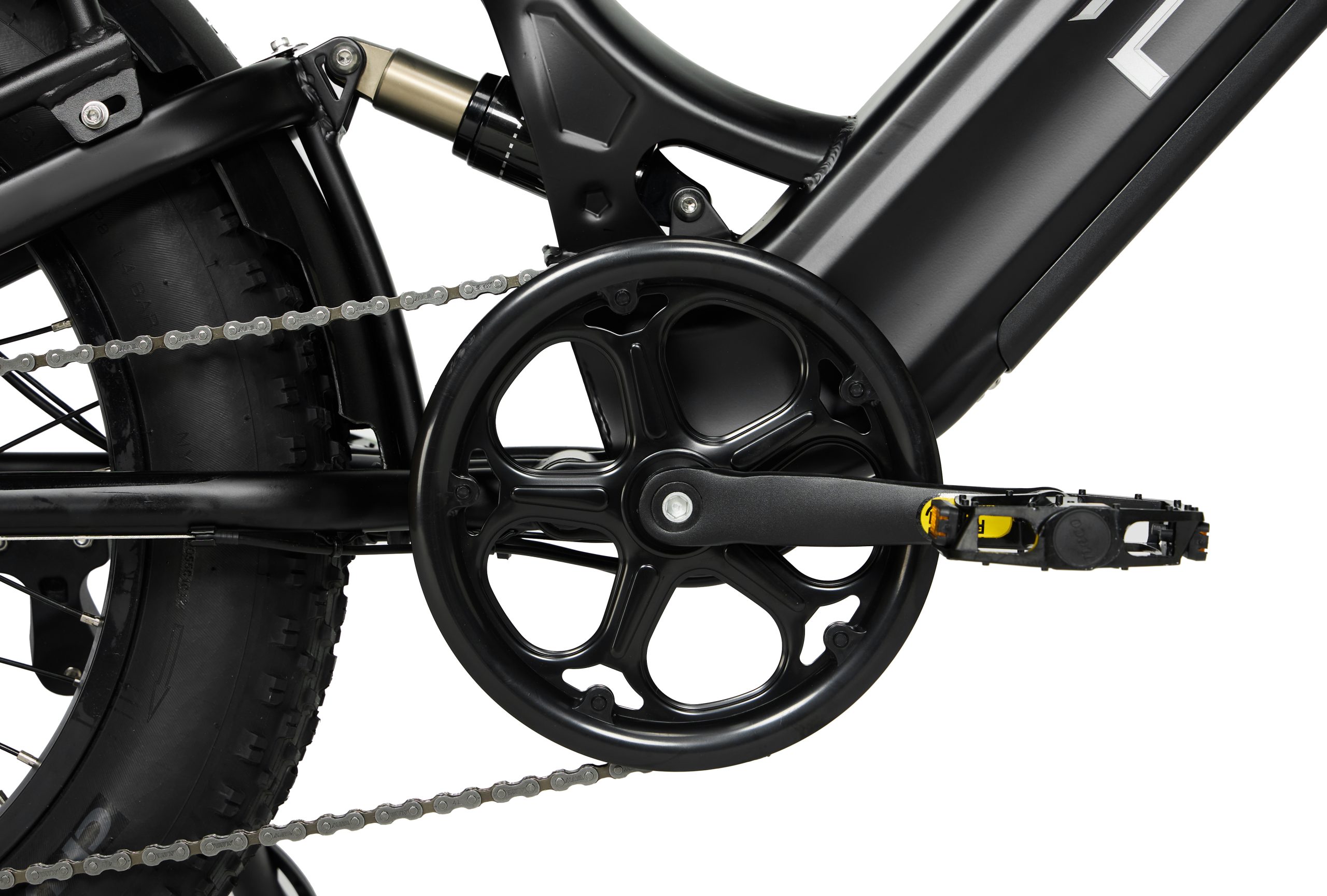

| Drivetrain | Chain | 1/2″*3/32″*116L |
| Crankset | 1/2*3/32″*52T*152L, alloy | |

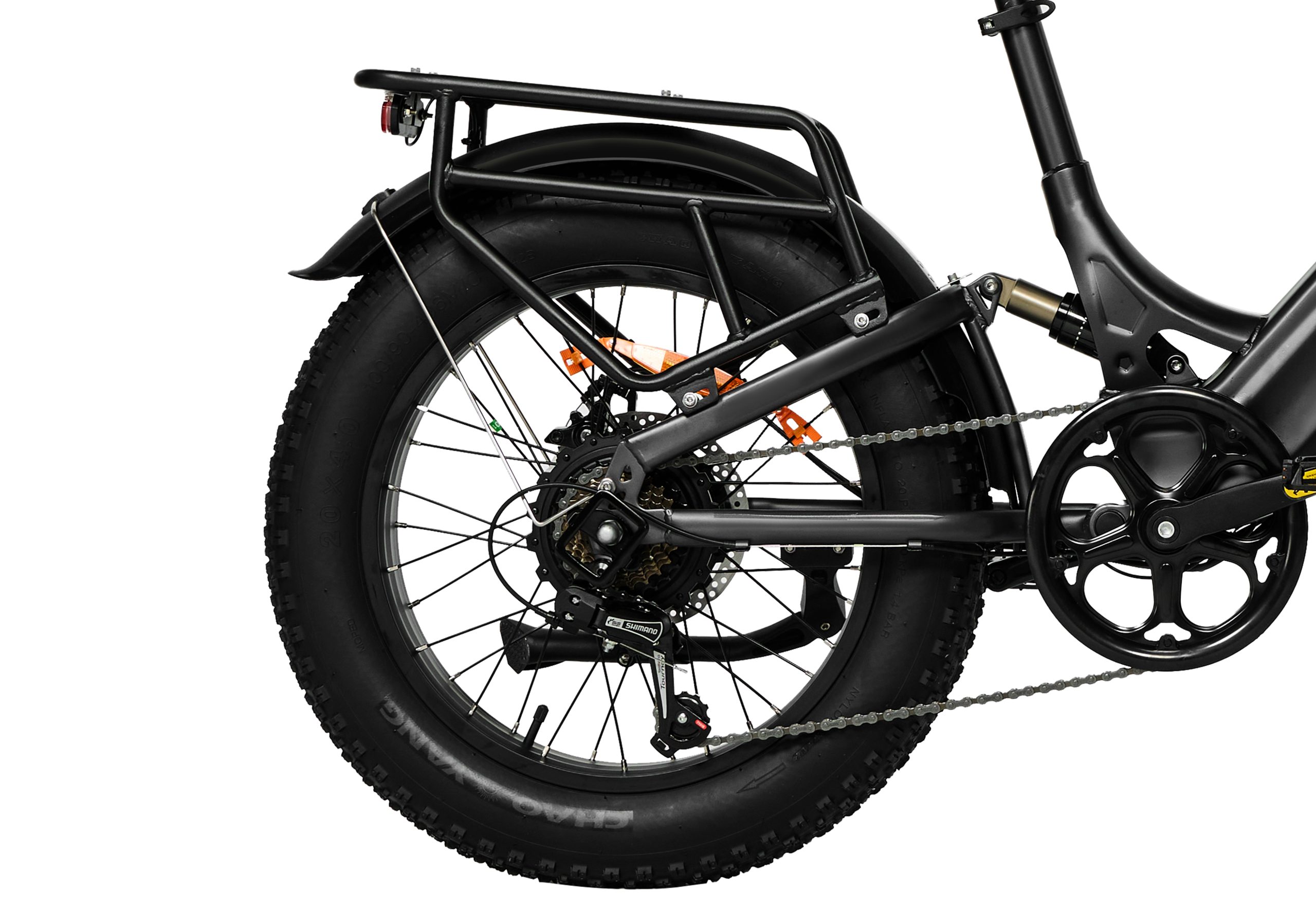

| Freewheel | 7-speed, 14-28T freewheel (thread-on) | |
| Rear Derailleur | Shimano 7-speed (compatible with 14-28T) | |
| Front Derailleur | None (single chainring) | |
| Shifter | Shimano 7-speed | |
| Wheels & Tyres | Wheel Size | 20″*4 |
| Spokes | 12G × 174 mm, EN 15194 compliant | |
| Tyre Brand | Chaoyang | |
| Puncture Protection | Puncture-resistant | |
| Inner Tube | 20″ × 4.0″, A/V valve 35mm | |

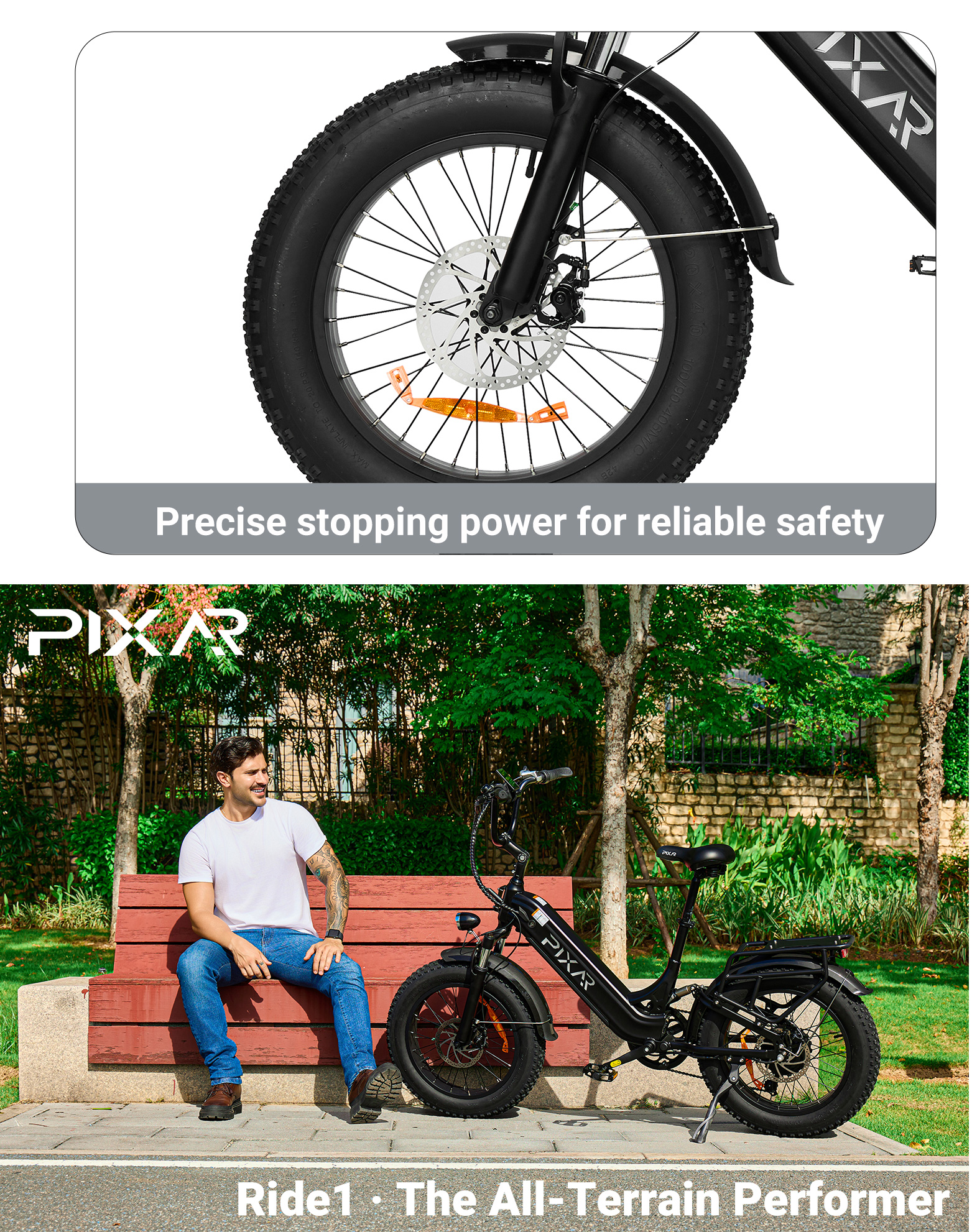

| Braking System | Brake Type | Mechanical disc brakes (front & rear) |
| Brakes | Power cut-off brakes | |
| Brake Rotors | 180mm (front & rear) | |
| Brake Levers | All-aluminium, low-profile design with motor cut-off | |
| Cockpit & Components | Handlebar | Aluminum alloy, 26″ (660mm) width, Ø31.8mm clamp |
| Stem | Only adjust stem | |

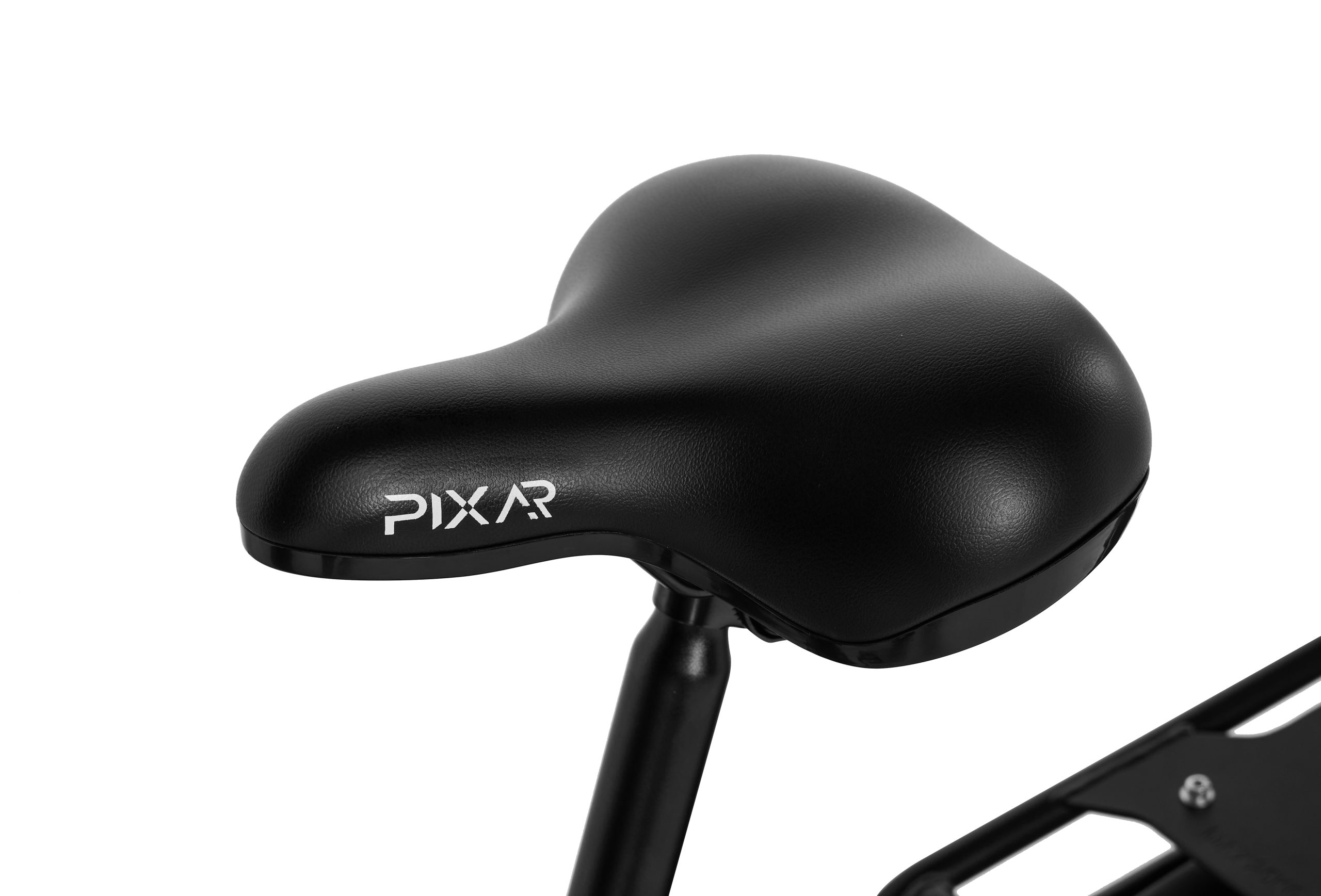

| Saddle | Aluminum alloy platform pedals, 9/16″ axle | |
| Saddle Height Range | 900-1000 mm | |
| Seatpost | 28.6mm aluminum alloy, angle-adjustable | |
| Quick Release | Yes (front wheel & seatpost) | |
| Pedals | Aluminium alloy platform pedals with reflectors | |
| Lighting & Safety | Headlight | Integrated headlight with waterproof disconnect |
| Taillight | Integrated taillight with waterproof disconnect | |
| Bell/Horn | Mechanical bell included | |
| Additional Equipment | Kickstand | Heavy-duty aluminium kickstand |
| Mudguards/Fenders | Front & rear fenders included | |

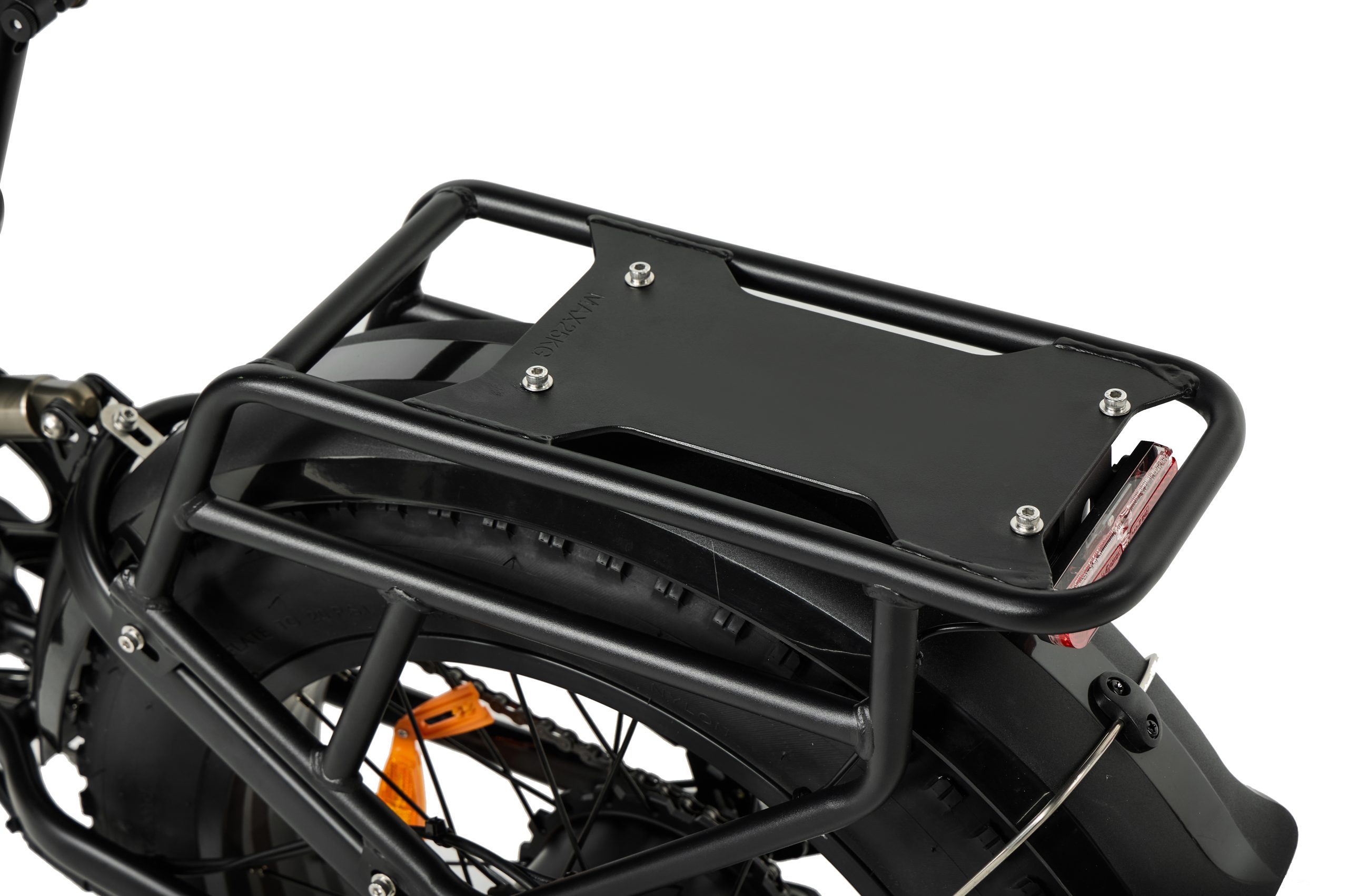

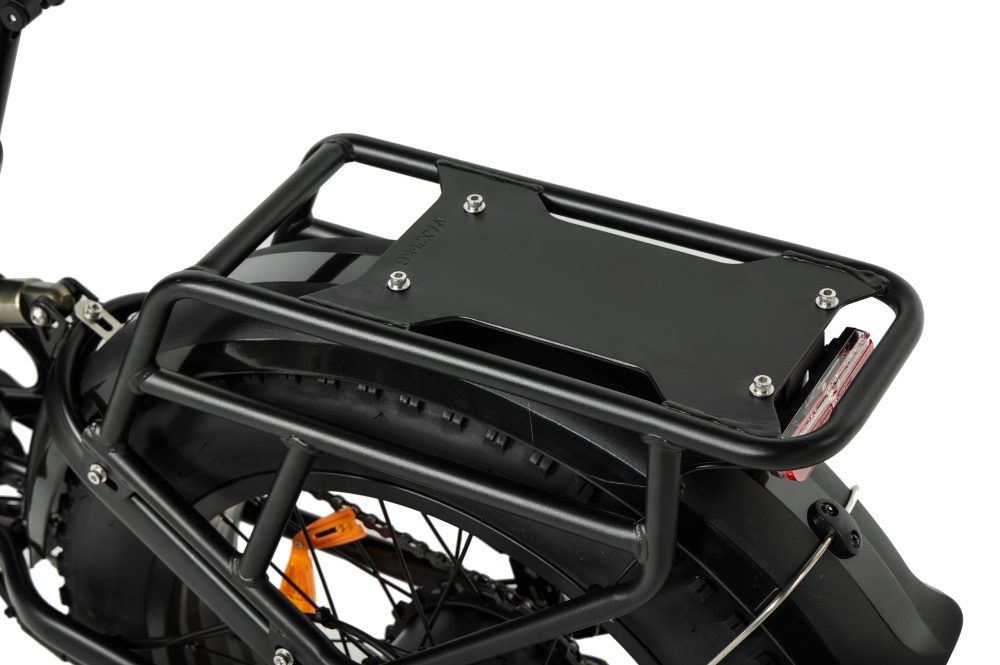

| Rear Rack | Steel rear rack included | |

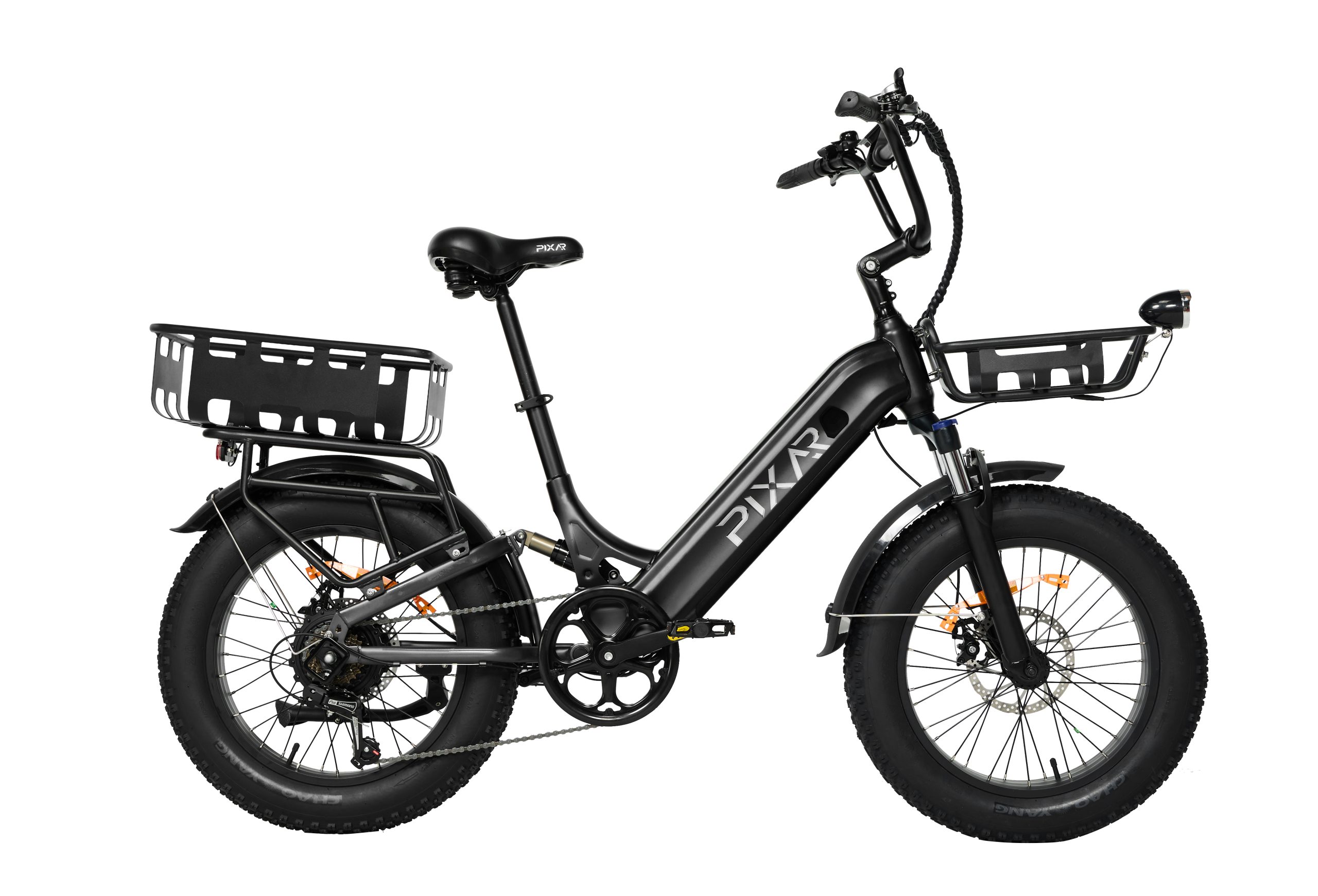

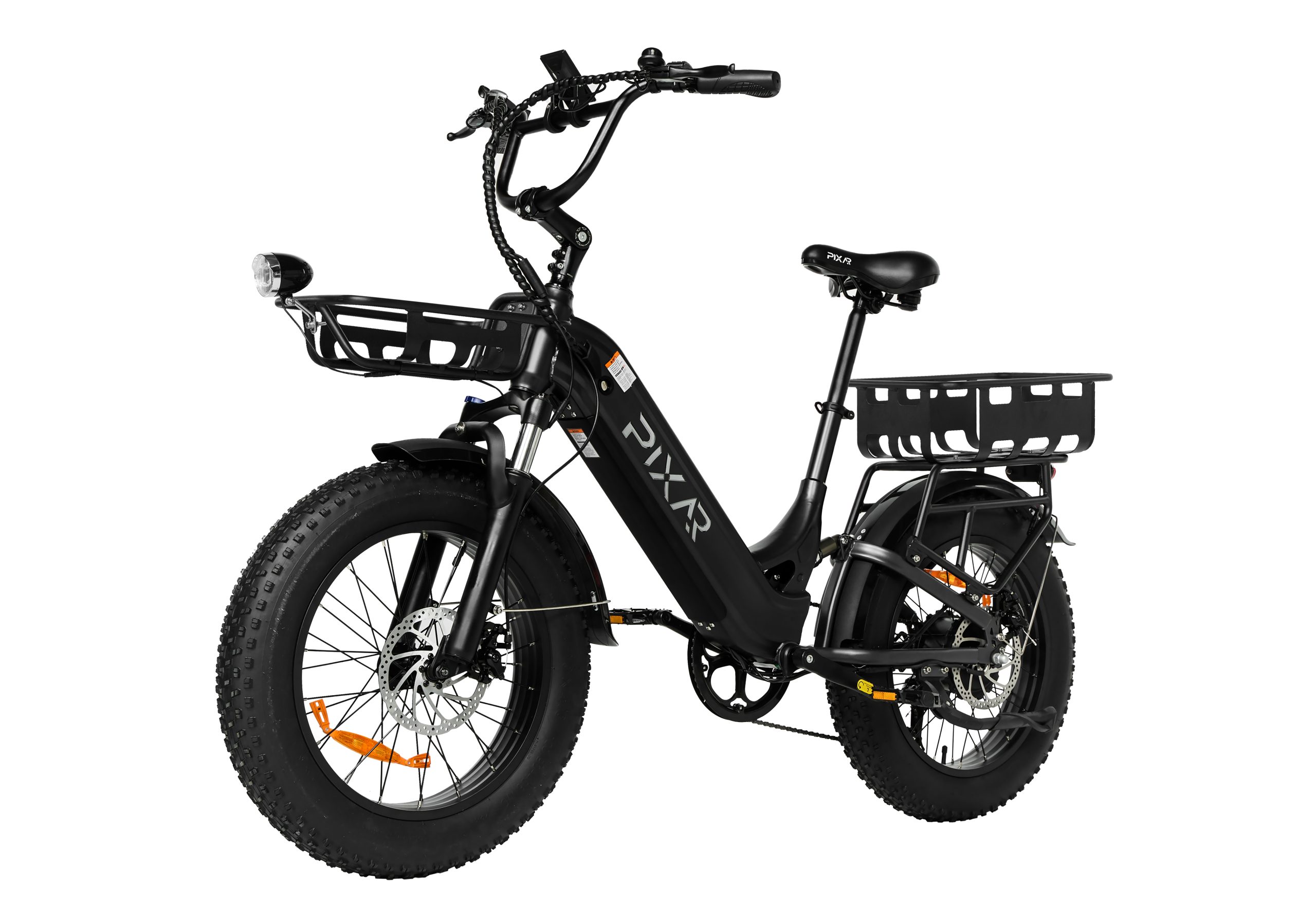

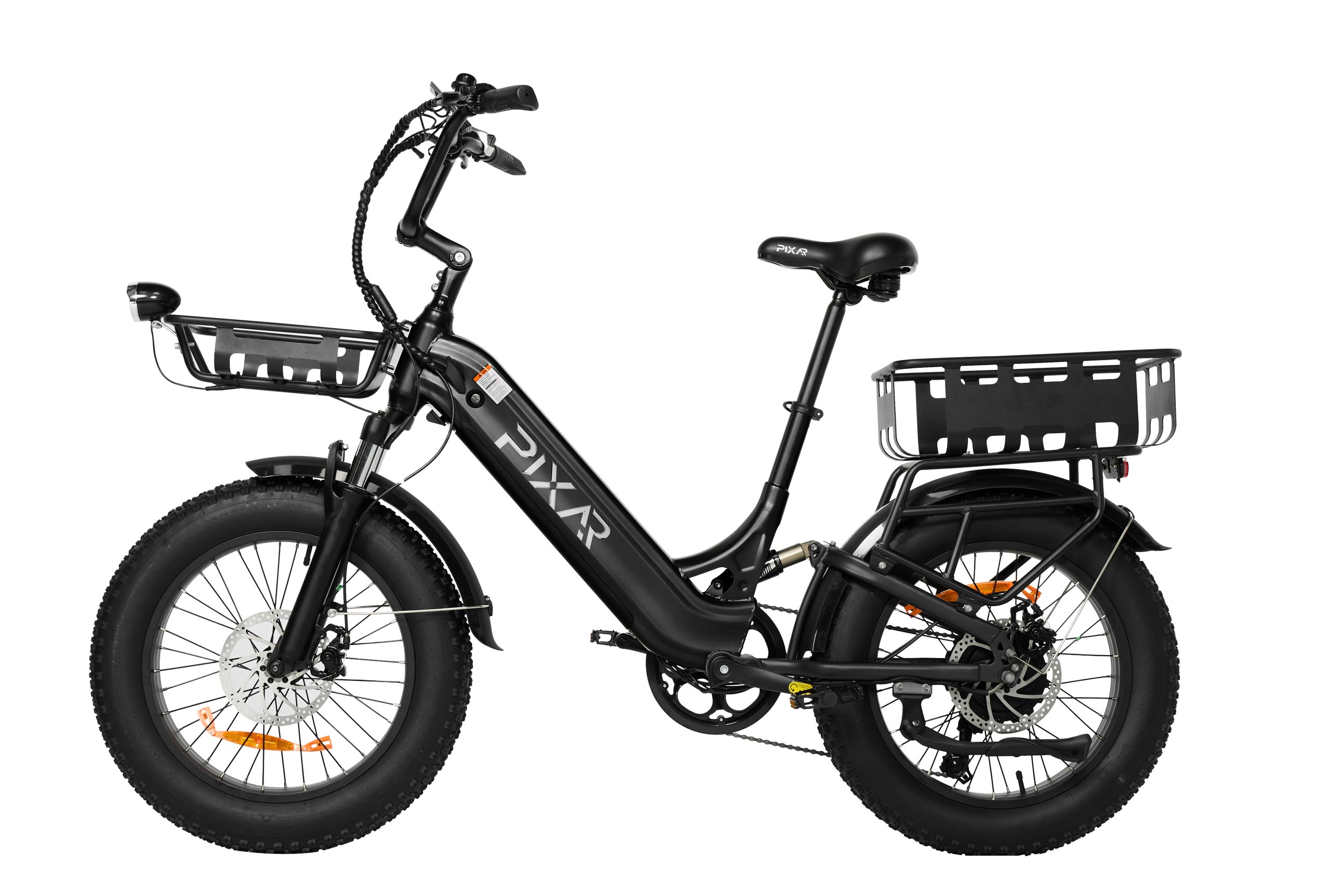

| Front Rack | Optional | |
| Toolkit Included | Yes (3× wrench, 1× screwdriver, 5× hex key) | |
| Certification & Compliance | EN 15194 Certified | Yes |
| Certification | CE, EN 15194, UL2271 | |
| Warranty & Support | Overall Warranty Period | 1 year limited warranty |
| Battery Warranty | 1 year from original purchase date | |
| Frame Warranty | 2 years | |
| Assembly & Delivery | Assembly Required | 90% pre-assembled (front wheel, pedals, handlebar adjustment) |
| Assembly Instructions | Multilingual manual included | |
From daily commutes to weekend explorations, the Pixar Ride1 Electric Bike is your versatile, dependable companion. Ride smarter, stronger, and farther—every journey starts here.
