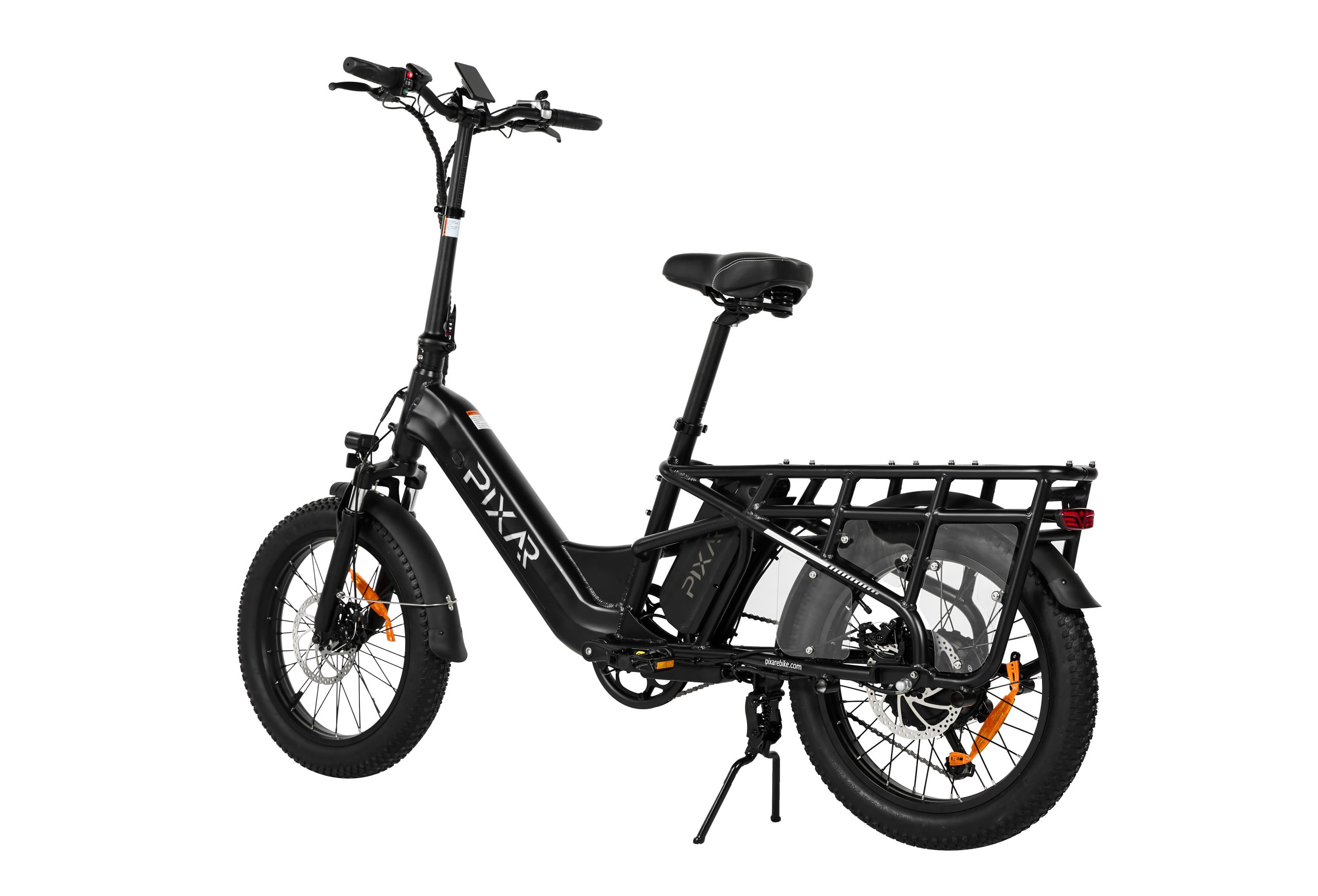

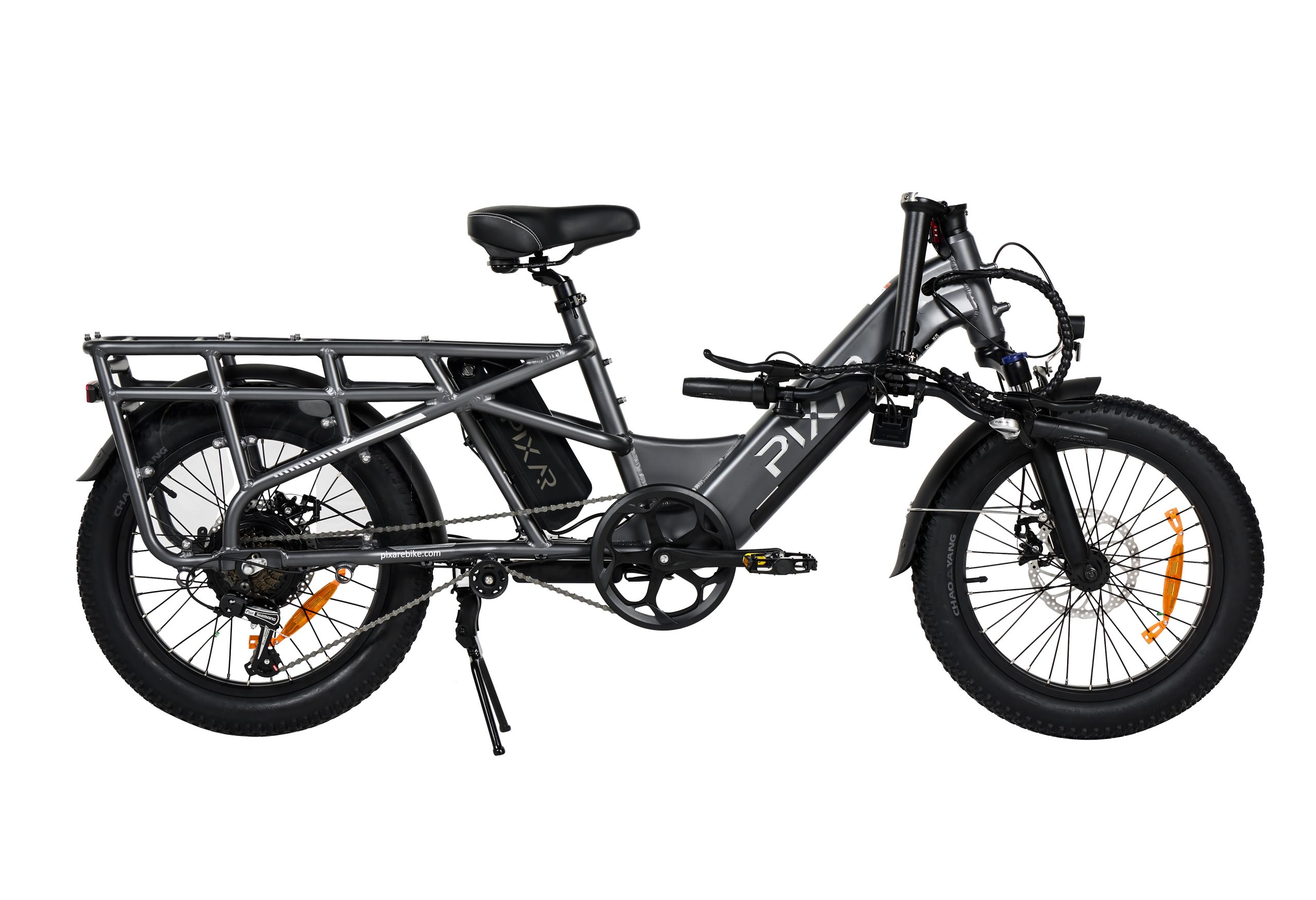

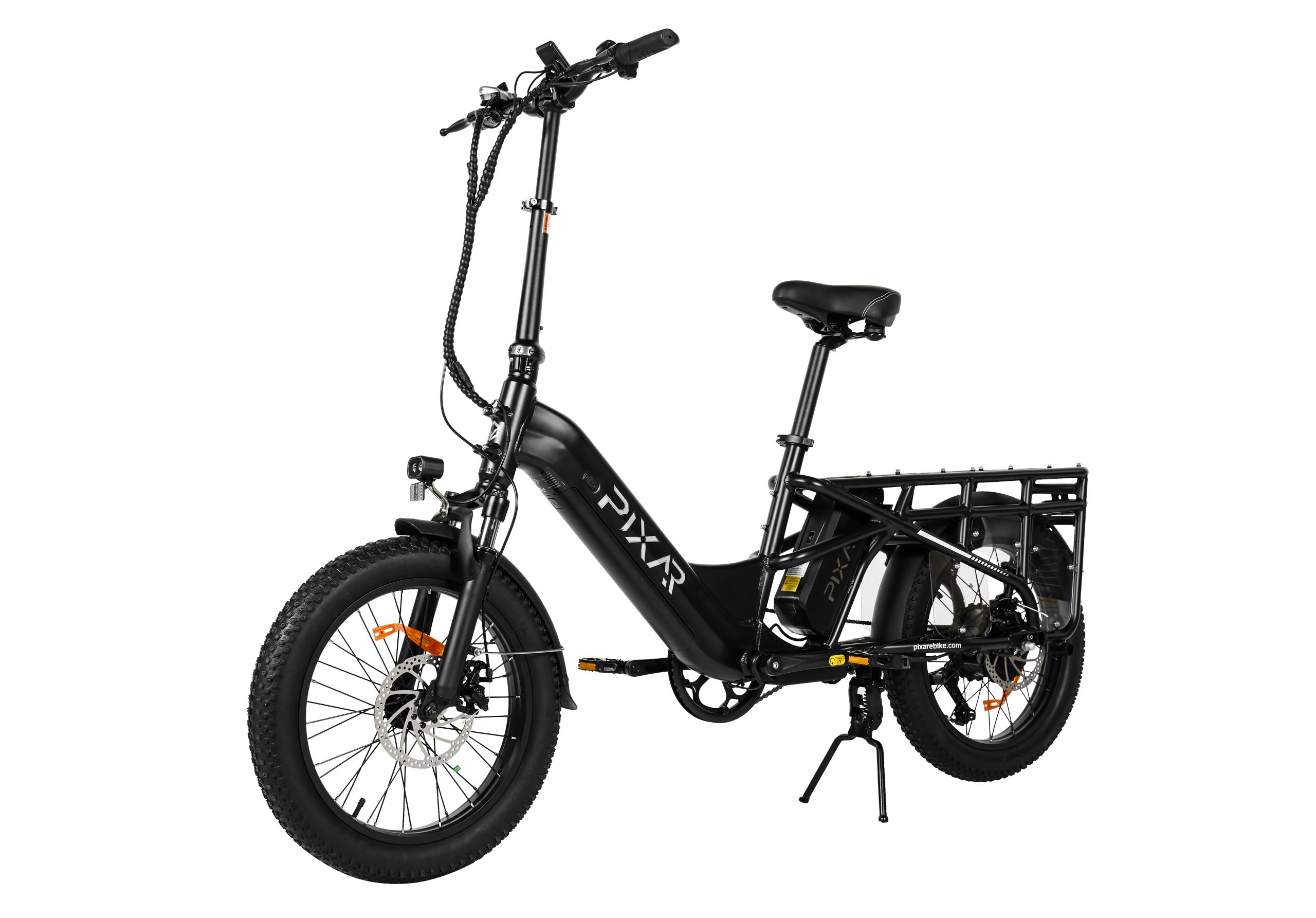

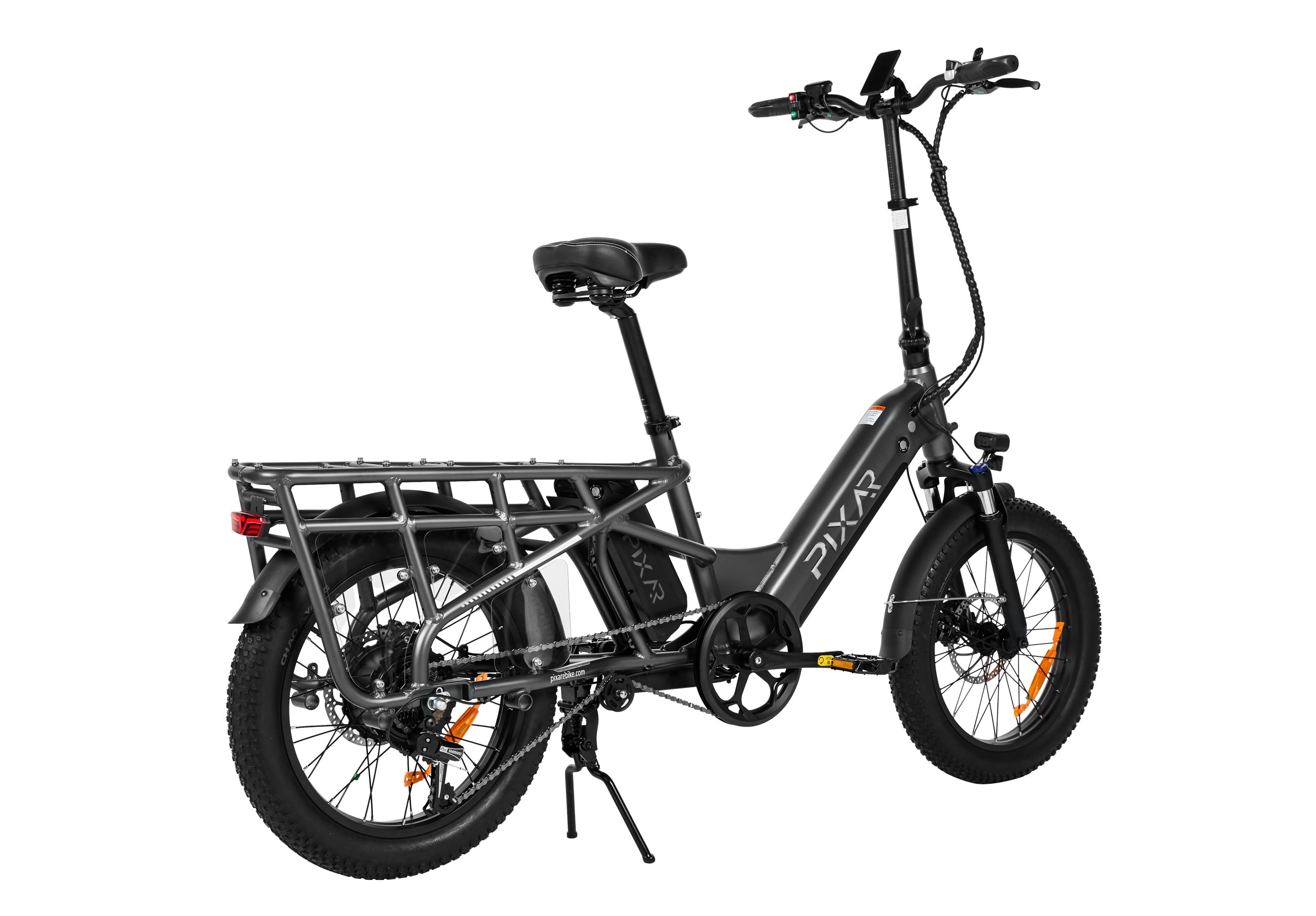

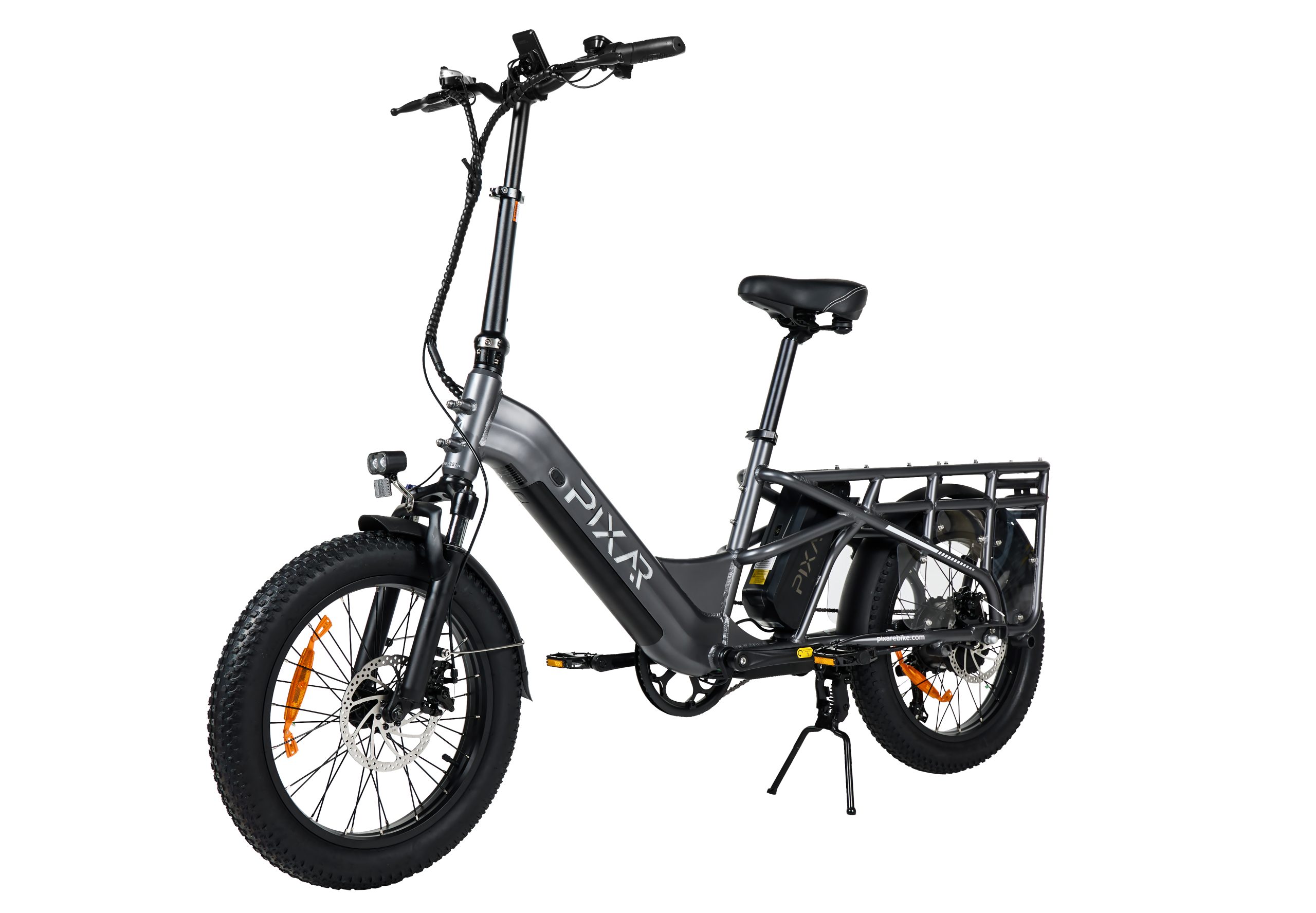

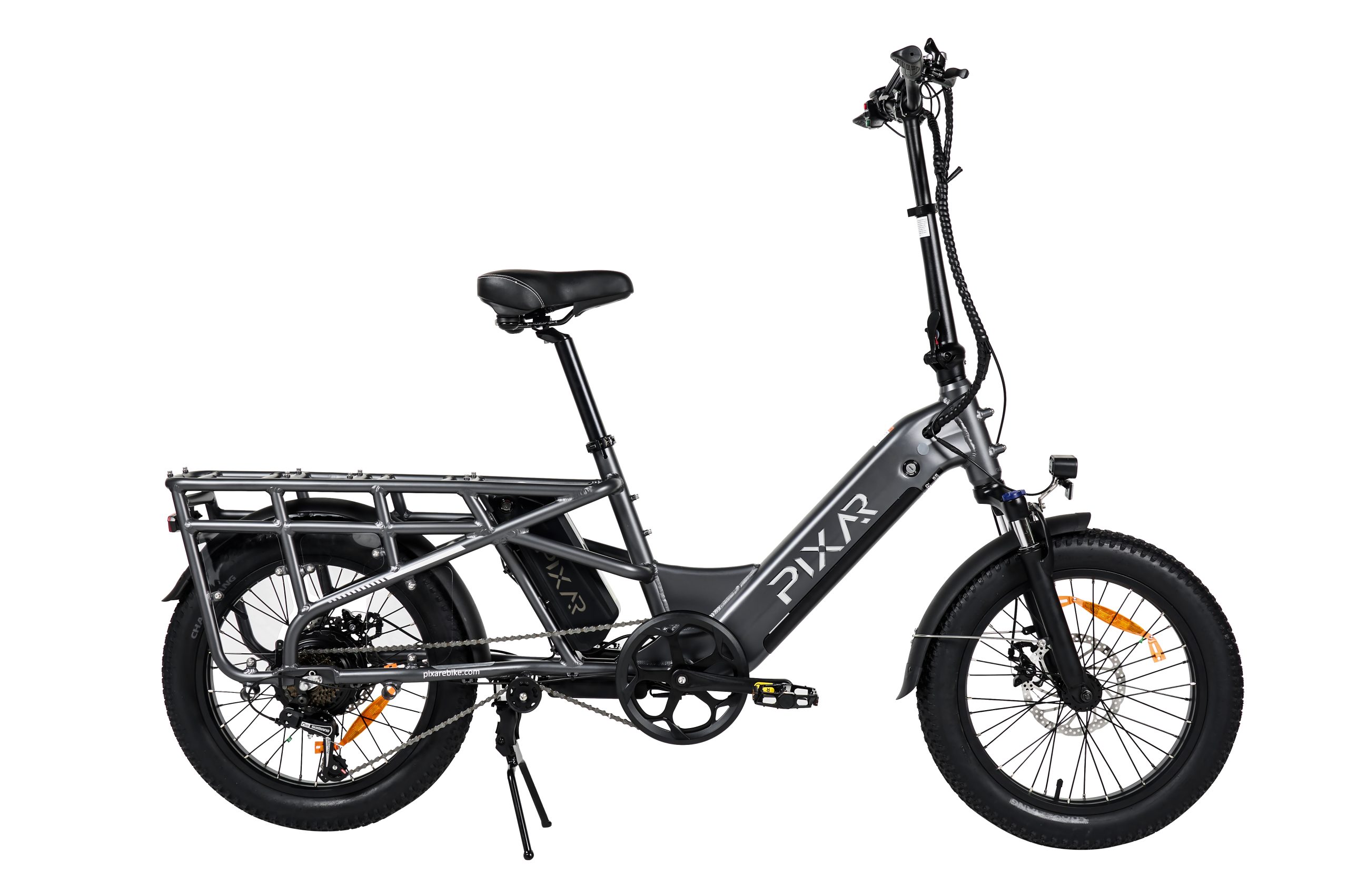

Pixar Plus7 Electric Bike 500W 20″ Fat Tire | Long Range City & Off-Road E-Bike

Pixar Plus7 Electric Bike is built for power, comfort, and adventure. Featuring a 48V 500W high-speed motor, long-range battery options, Shimano 7-speed gears, and 20″x3″ fat tires, it’s perfect for daily commutes and weekend off-road rides.

$1,462

Leave us a short message for more details, and we’ll get back to you within 1 business day. We provide OEM & ODM services for this bike.

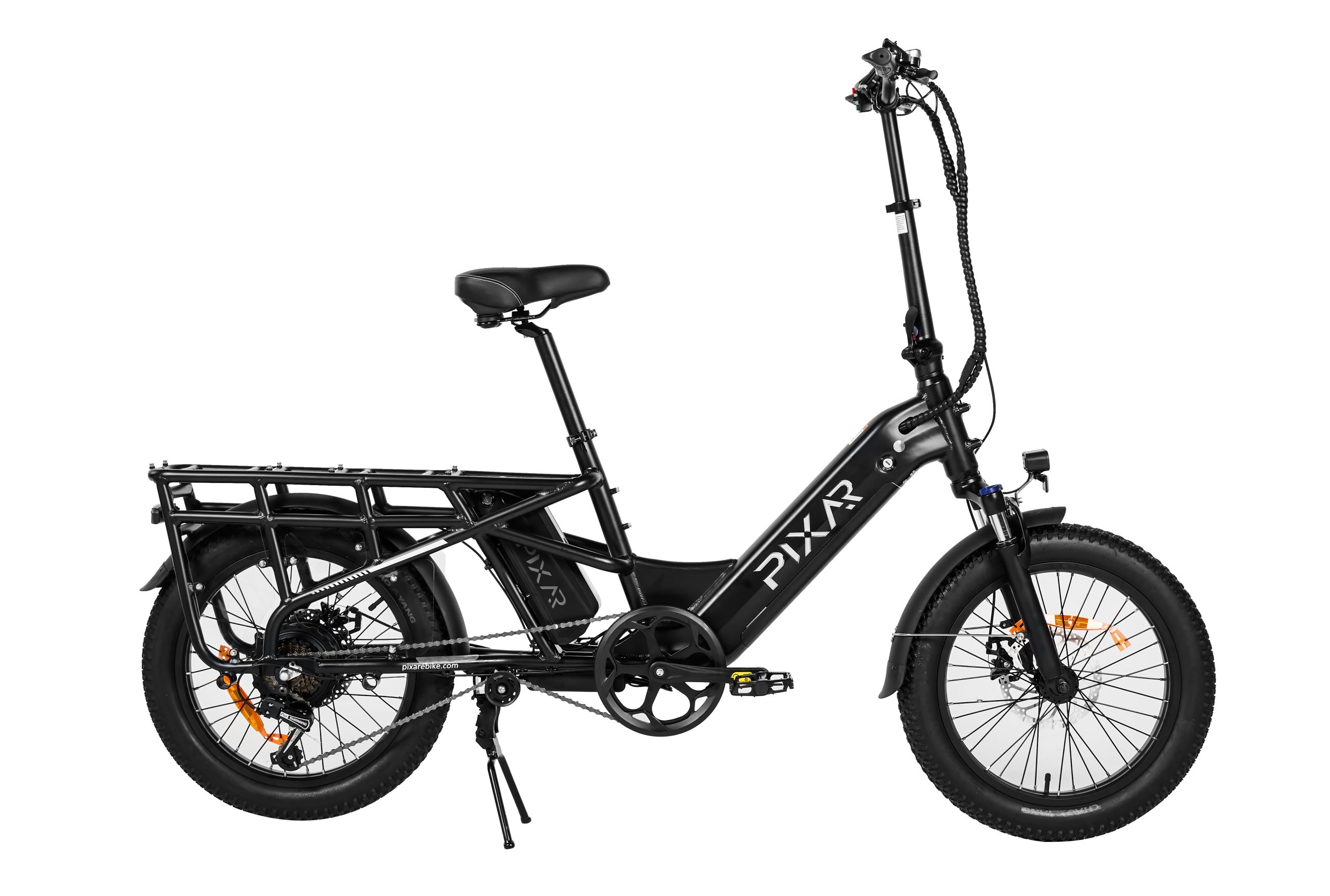

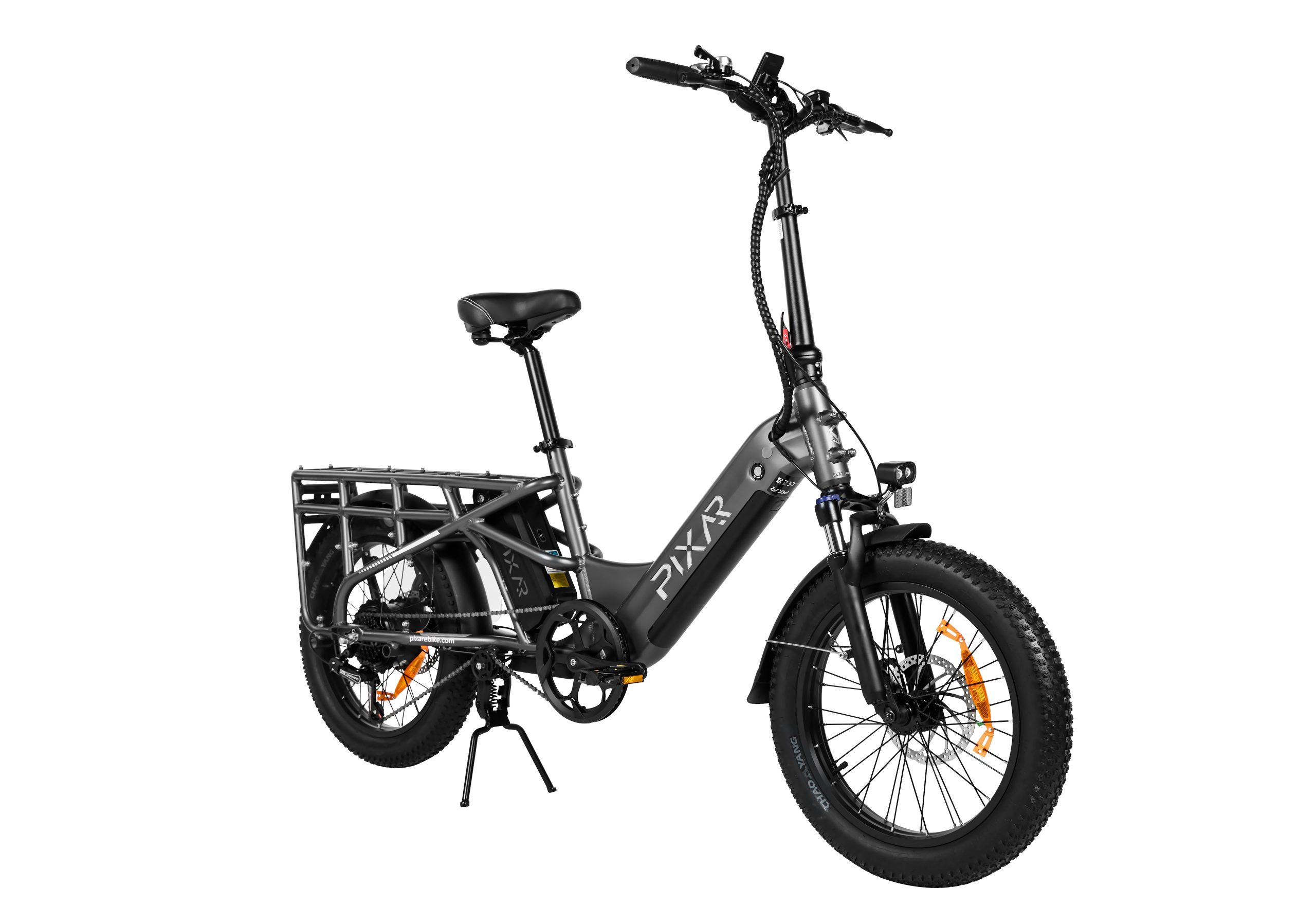

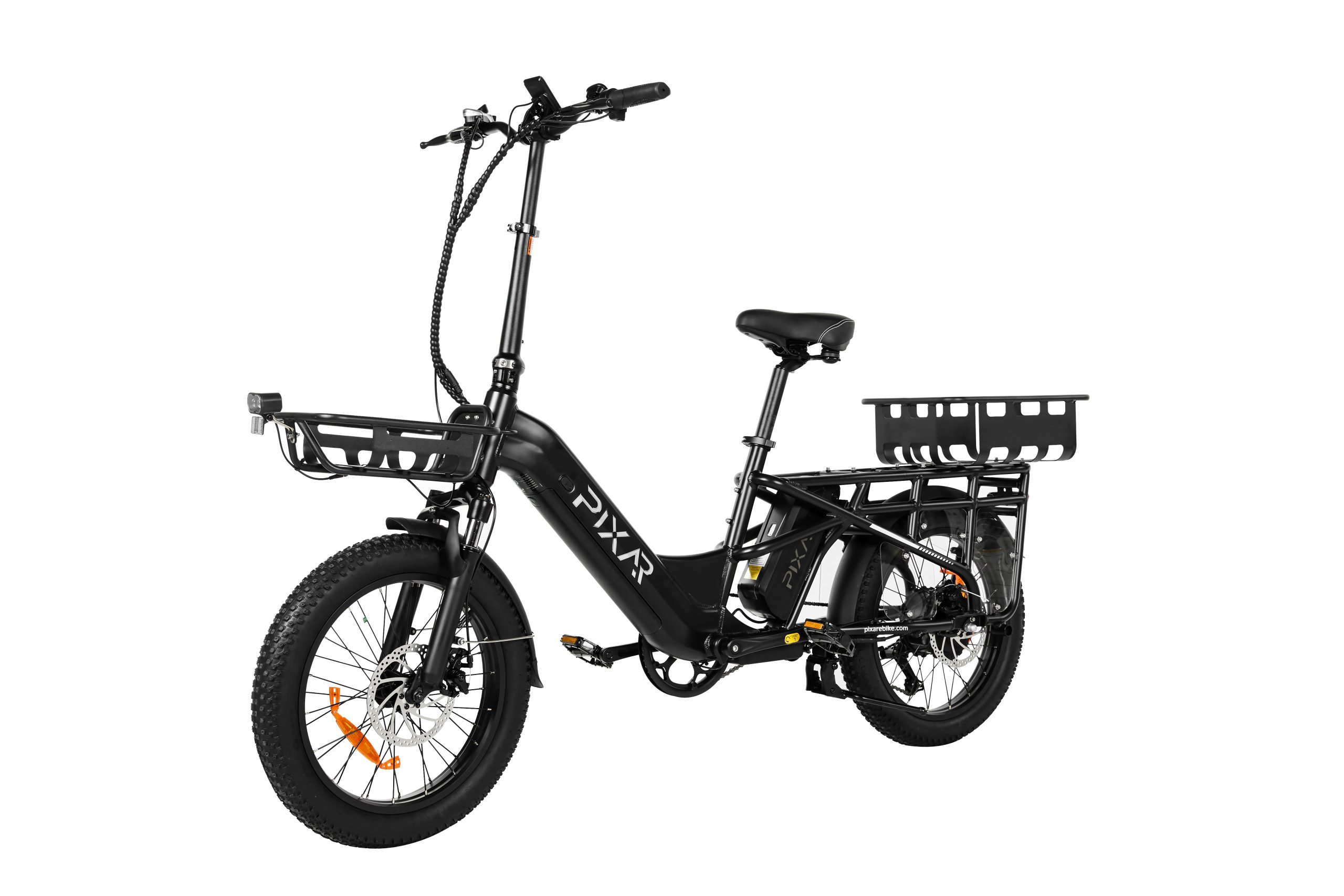

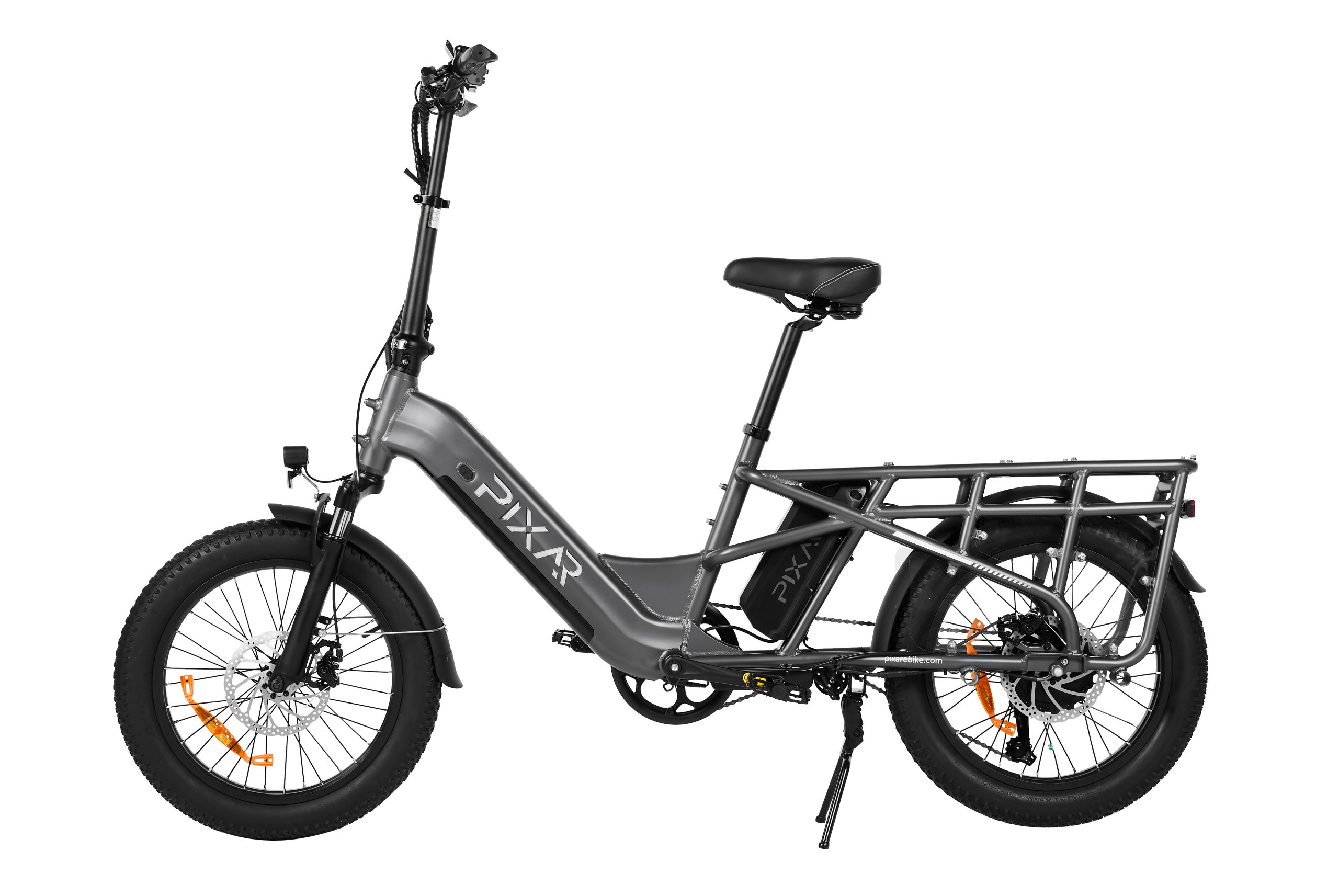

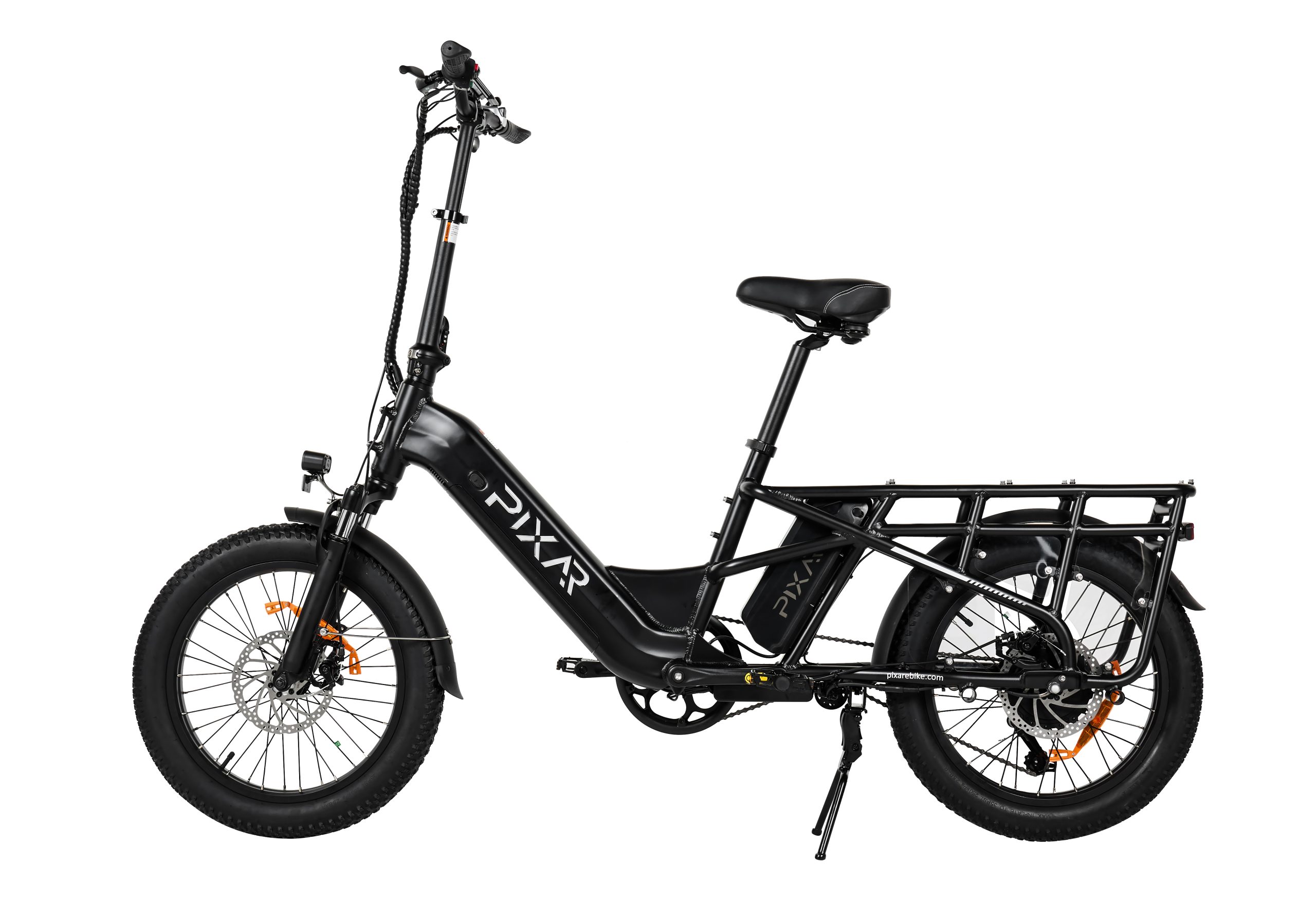

    Pixar Plus7 Electric Bike combines cutting-edge technology with practical design for a smooth, powerful, and enjoyable ride. Whether you’re commuting through city streets, climbing hills, or exploring light trails, this e-bike delivers reliable performance and comfort. Its robust high-quality steel frame, adjustable front suspension fork, and Chaoyang 20″ x 3″ fat tires ensure stability and versatility across various terrains.

    Choose from two battery options: a 48V 10.4Ah lithium-ion battery offering up to 35–45 km in pedal-assist mode, or the larger 48V 20.4Ah battery extending range to 65–75 km on a single charge. Powered by a 500W rear hub motor with a legal top speed of 25 km/h (adjustable to 32 km/h), and paired with Shimano 7-speed gearing, the Pixar Plus7 handles both flat roads and inclines up to 15° with ease.

    Safety and convenience are built in: mechanical disc brakes with 180 mm rotors, integrated front and rear lights, an electronic horn, and a rear rack (with optional front basket) make it ideal for daily errands. Additional features include a USB charging port, walk-assist mode, and IP54-rated weather resistance.

    Whether you need a dependable commuter, a capable cargo hauler, or an eco-friendly adventure bike, the Pixar Plus7 adapts to your lifestyle.

    Why Choose Pixar Plus7?

    • Powerful 500W rear hub motor – adjustable top speed up to 32 km/h
    • Two removable battery options: 10.4Ah (35–45 km) or 20.4Ah (65–75 km) in pedal-assist
    • 20″ x 3″ Chaoyang fat tires with puncture protection and reflective sidewalls
    • Adjustable front suspension fork for a smoother, more controlled ride
    • Shimano 7-speed drivetrain for versatile gear selection
    • Mechanical disc brakes with power cut-off for responsive stopping
    • Integrated lighting & electronic horn for night visibility and safety

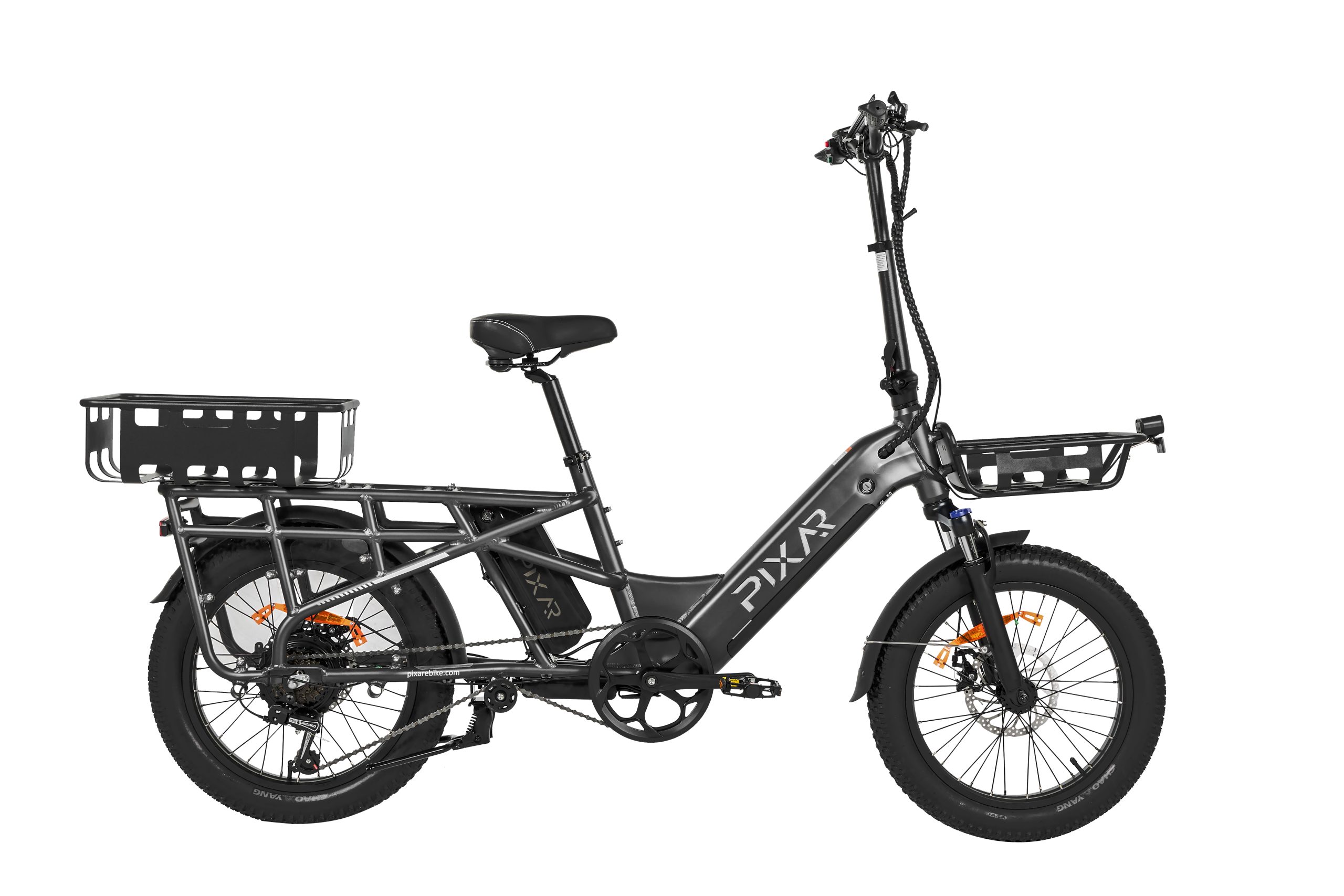

    • Rear rack included, front rack optional – perfect for cargo and commuting

    Specifications

    Pixar Plus7 E-bike – Product Parameters (European Market)
    / Parameter Value
    General Specifications Range 35–45 km (pedal assist mode) 10.4Ah
    65–75 km (pedal assist mode) 20.4Ah
    Top Speed 25 km/h (Pedelec limit, adjustable to 32 km/h)
    Dimensions 186 × 65 × 132 cm (L × W × H)
    Max Load Capacity 120kg
    Net Weight 34.5kg
    Gross Weight 43.5kg
    Qty for 1×40HQ Container 206 pcs
    Recommended Rider Height 155–190 cm
    Colour Options Black & Grey
    Foldable No
    IP Rating IP54
    Operating Temperature -10°C to +45°C
    Bike Category Step-through Fat Tire Cargo
    Battery System Battery Capacity & Type 48V 20.4Ah Lithium-ion (EVE cells)
    Battery Weight 3kg

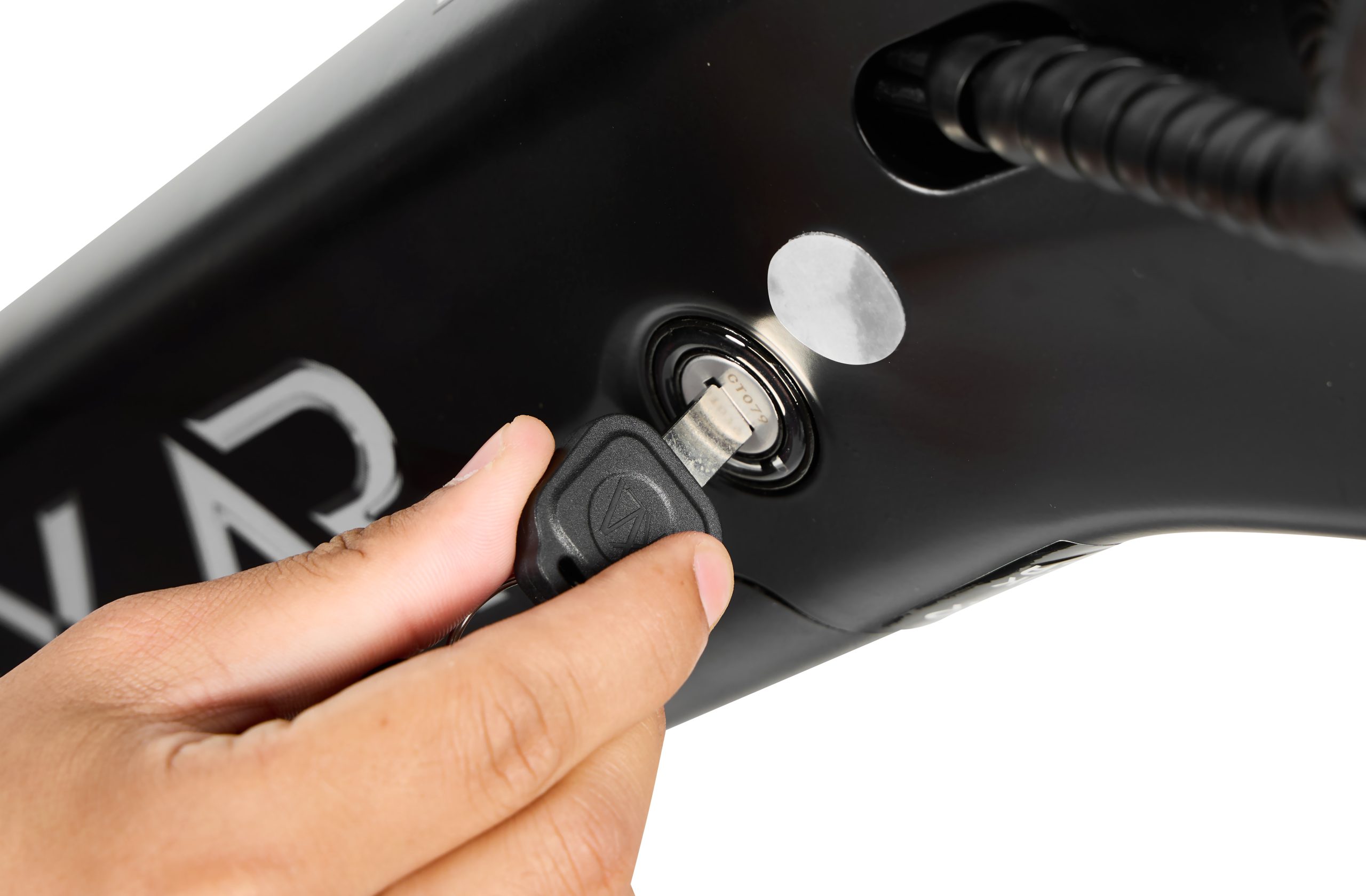

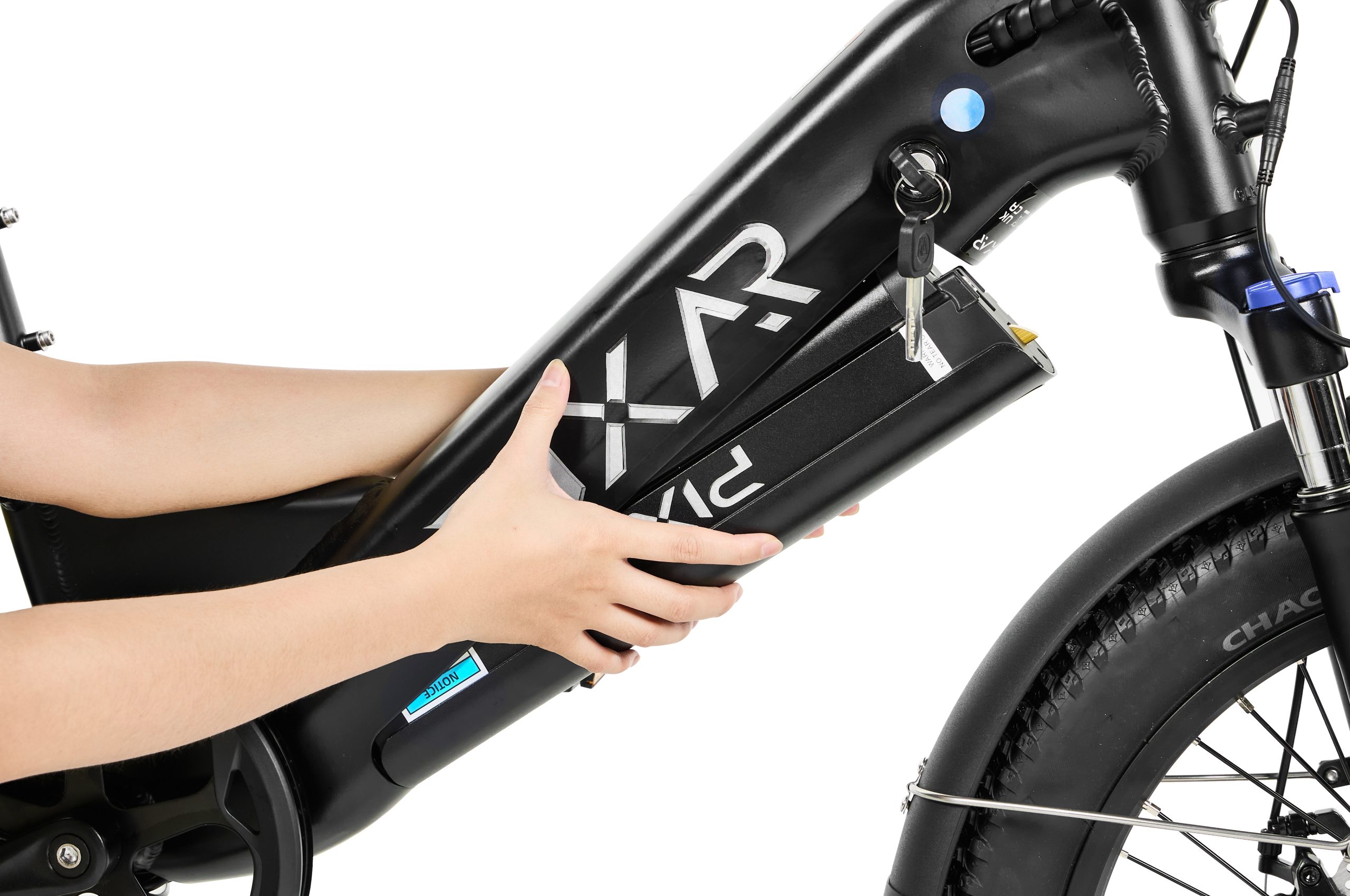

    Removable Battery Yes
    Battery IP Rating IP65
    Battery Certification EN 62133 compliant
    Charging Time 4–6 hours (max 6 hours)
    Charger 54.6V 2A smart charger
    Motor & Drive System Motor Type Rear hub brushless motor
    Motor Brand CZJB
    Motor 48V 500W high-speed rear hub motor
    Maximum Climbing Gradient 15° (approx. 27% grade)

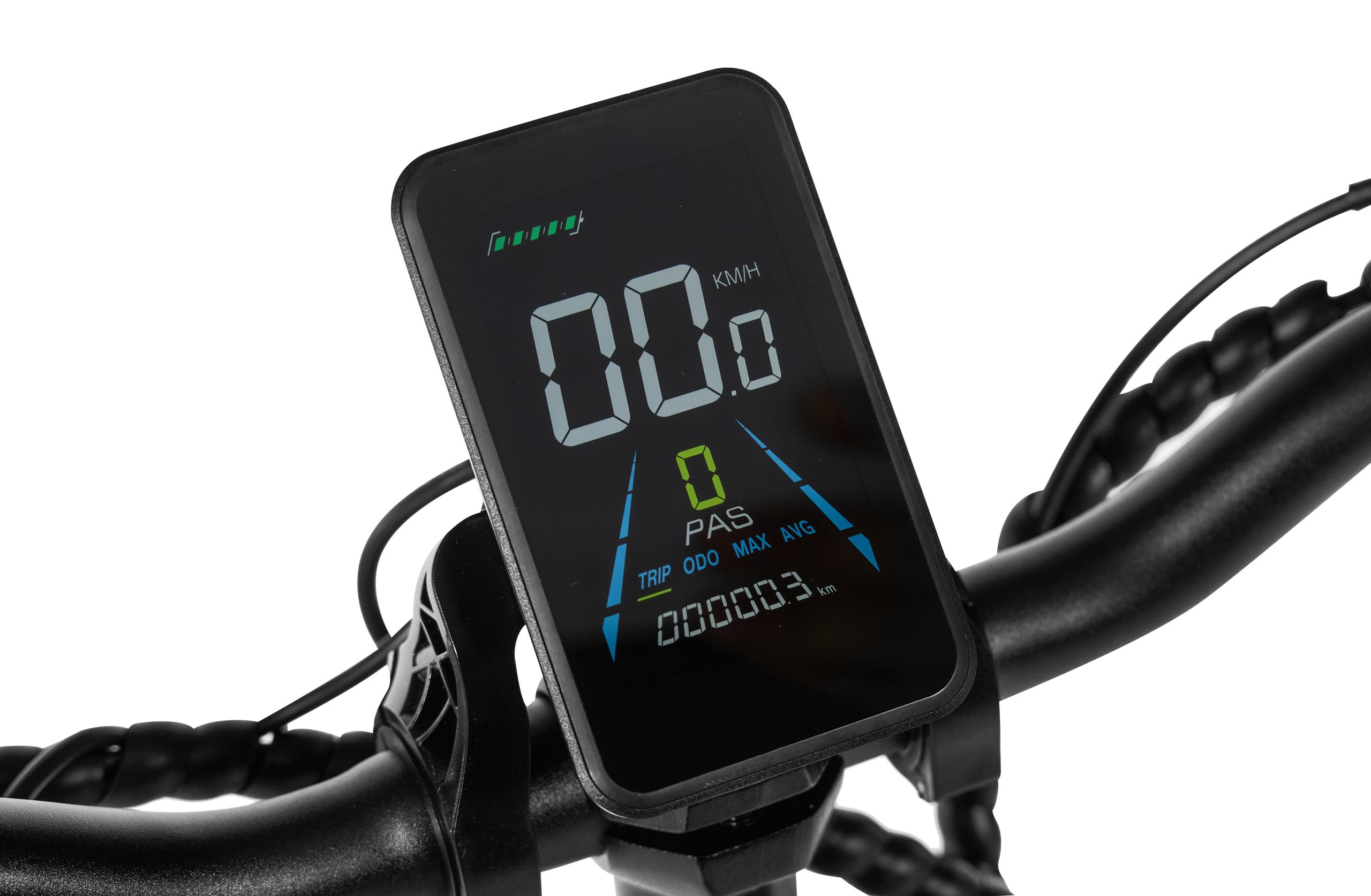

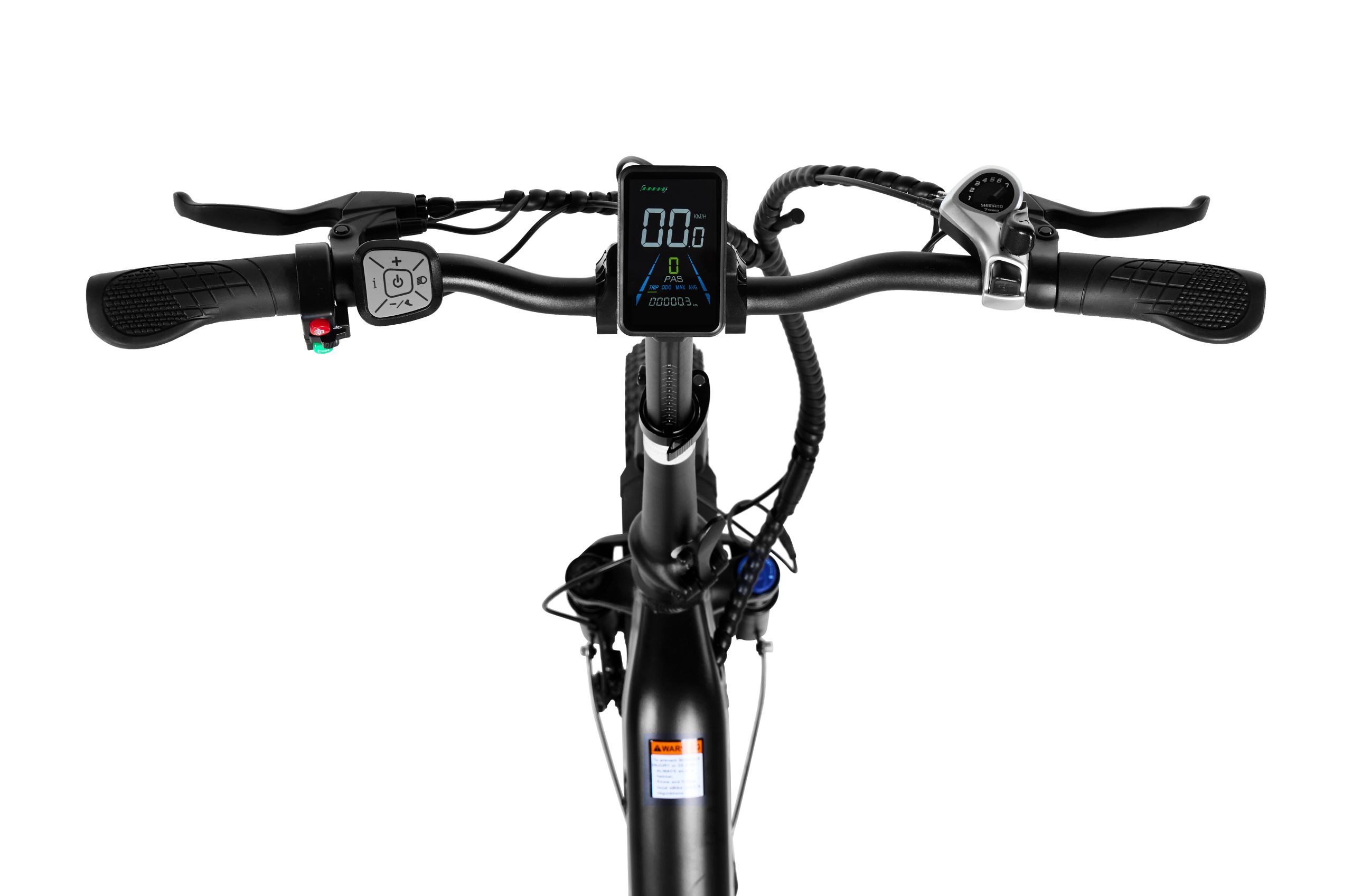

    Control System Display YL-81F + USB
    Assist Levels 5 levels (0–5)
    Throttle Twist Throttle (spare parts in small box)
    Sensors Speed sensor (12-magnet)
    USB Charging Port Yes
    Walk Assist Mode 6 km/h (hold “-” button)
    Backlight Yes
    Frame & Fork Frame Material Aluminium Alloy
    Frame Type Step-through (low-step)
    Front Suspension Adjustable shock absorber
    Front Fork Suspension fork with disc brake mount
    Drivetrain Chain 1/2*3/32” x 152L
    Crankset 52T * 170L, alloy
    Freewheel 7-speed, 14-28T freewheel (thread-on)
    Rear Derailleur Shimano 7-speed (compatible with 14-28T)
    Front Derailleur None (single chainring)
    Shifter Shimano 7-speed

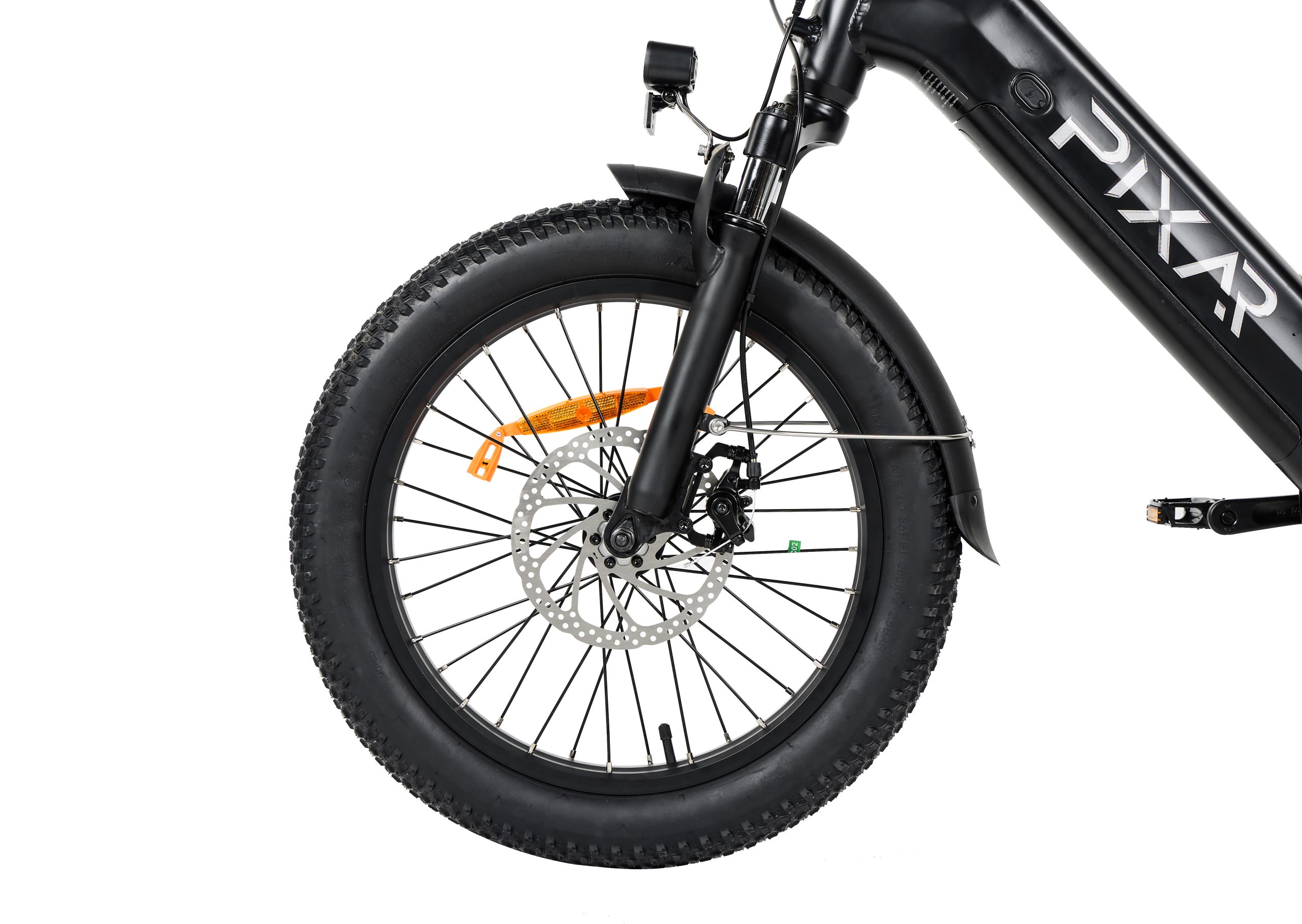

    Wheels & Tyres Wheel Size 20″ x 3, reflective sidewall stripe
    Spokes 12G × 173 mm, EN 15194 compliant
    Tyre Brand Chaoyang
    Puncture Protection Puncture-resistant
    Inner Tube 20″ × 3.0″, A/V valve 32mm

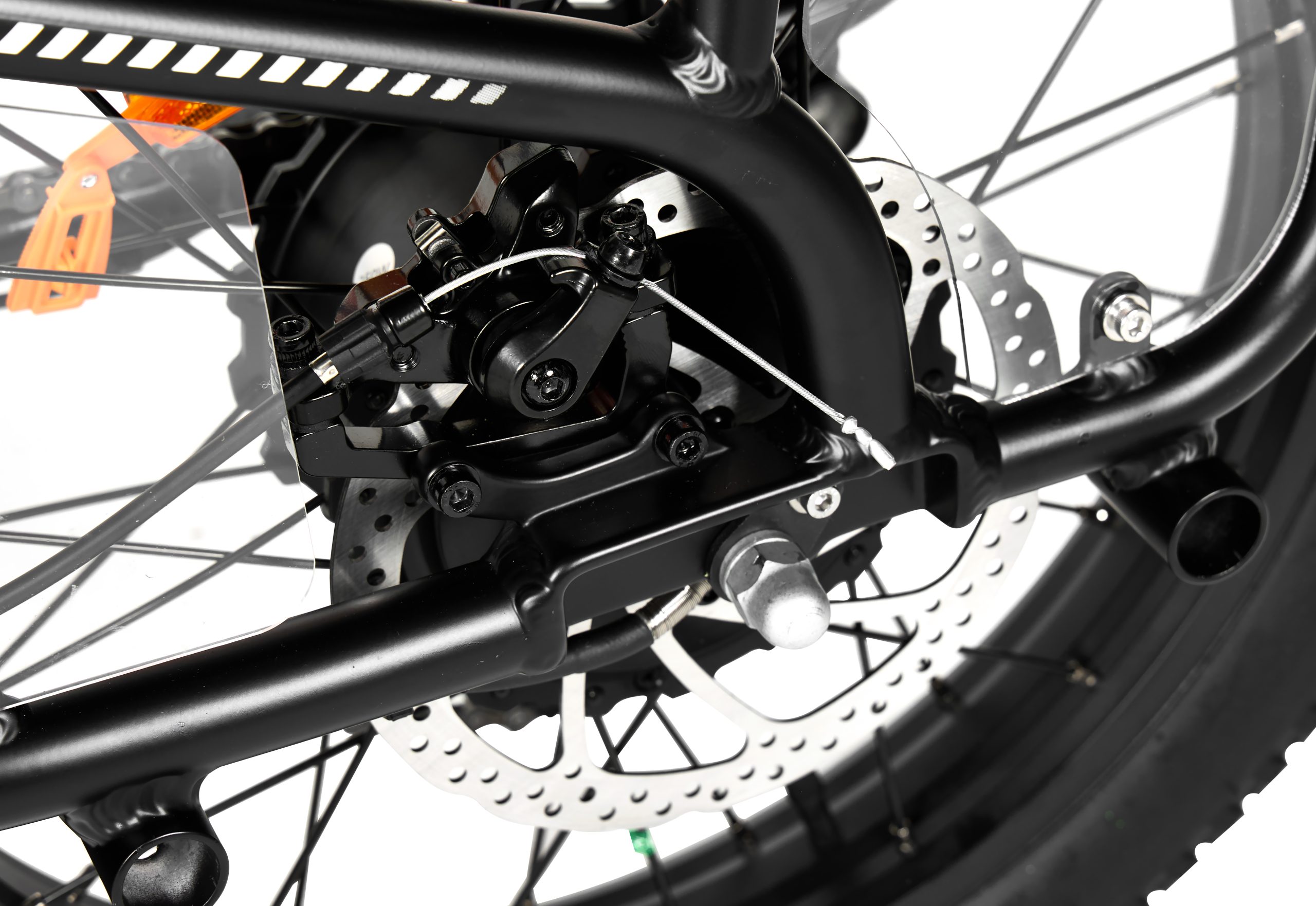

    Braking System Brake Type Mechanical disc brakes (front & rear)
    Brakes Power cut-off brakes
    Brake Rotors 180mm (front & rear)
    Brake Levers All-aluminium, low-profile design with motor cut-off
    Cockpit & Components Handlebar Aluminum alloy riser bar, 26.2″ (665mm) width, 31.8mm stem clamp
    Stem Foldable stem

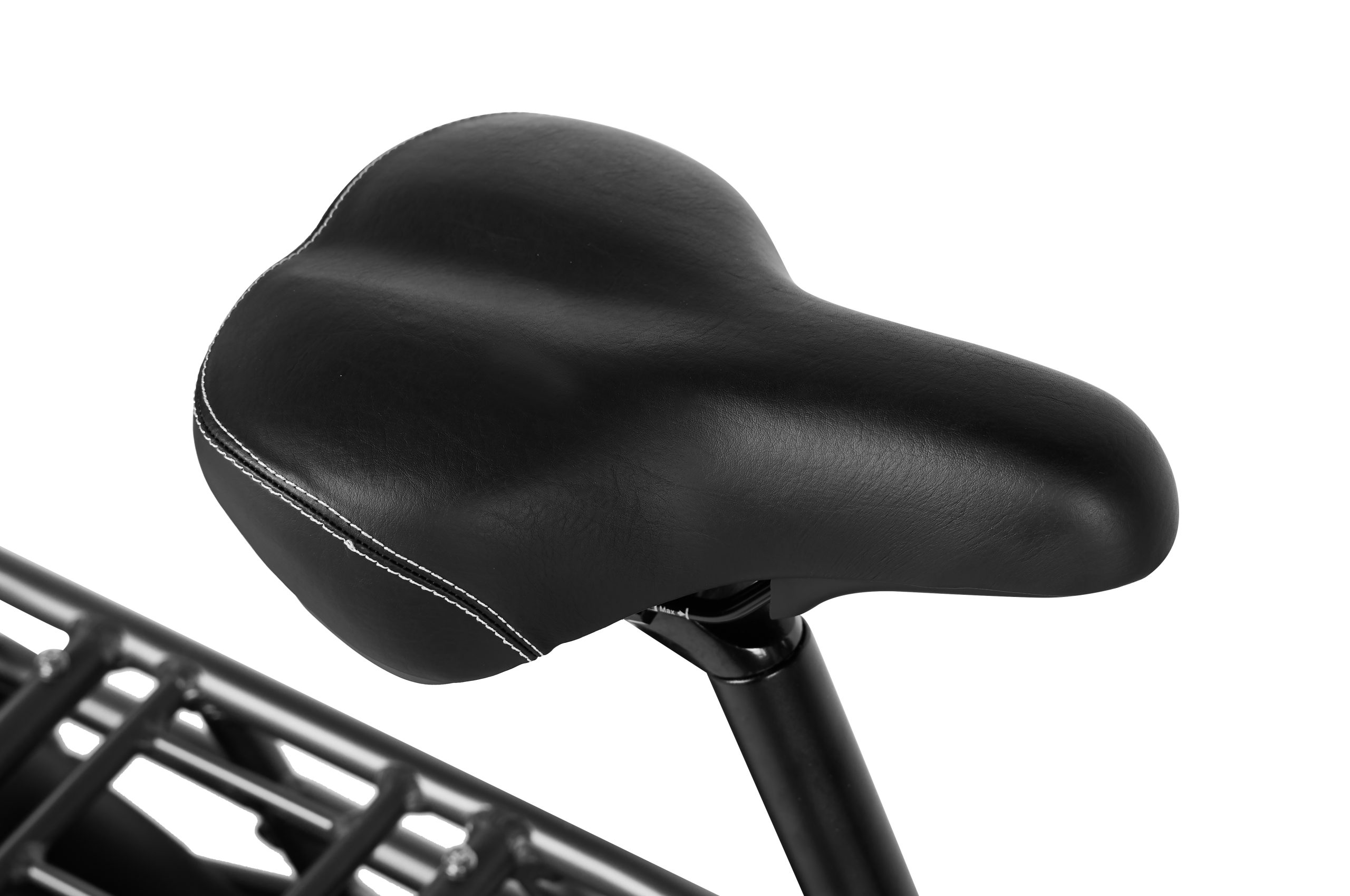

    Saddle Comfort saddle
    Saddle Height Range 900–1000 mm
    Seatpost 33.9 mm aluminum alloy, angle-adjustable
    Quick Release Yes (front wheel & seatpost)
    Pedals Aluminium alloy platform pedals with reflectors

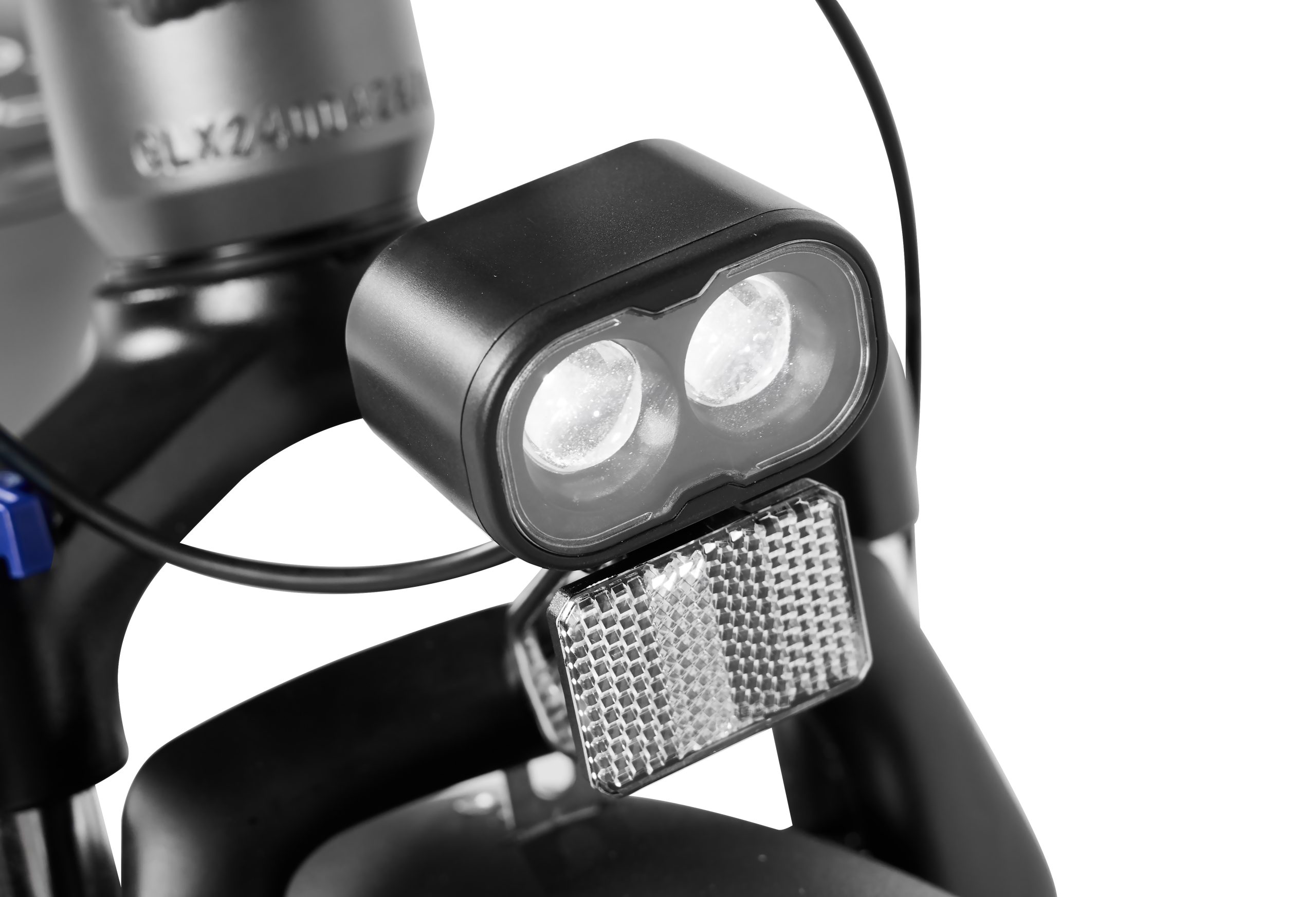

    Lighting & Safety Headlight Integrated headlight with waterproof disconnect

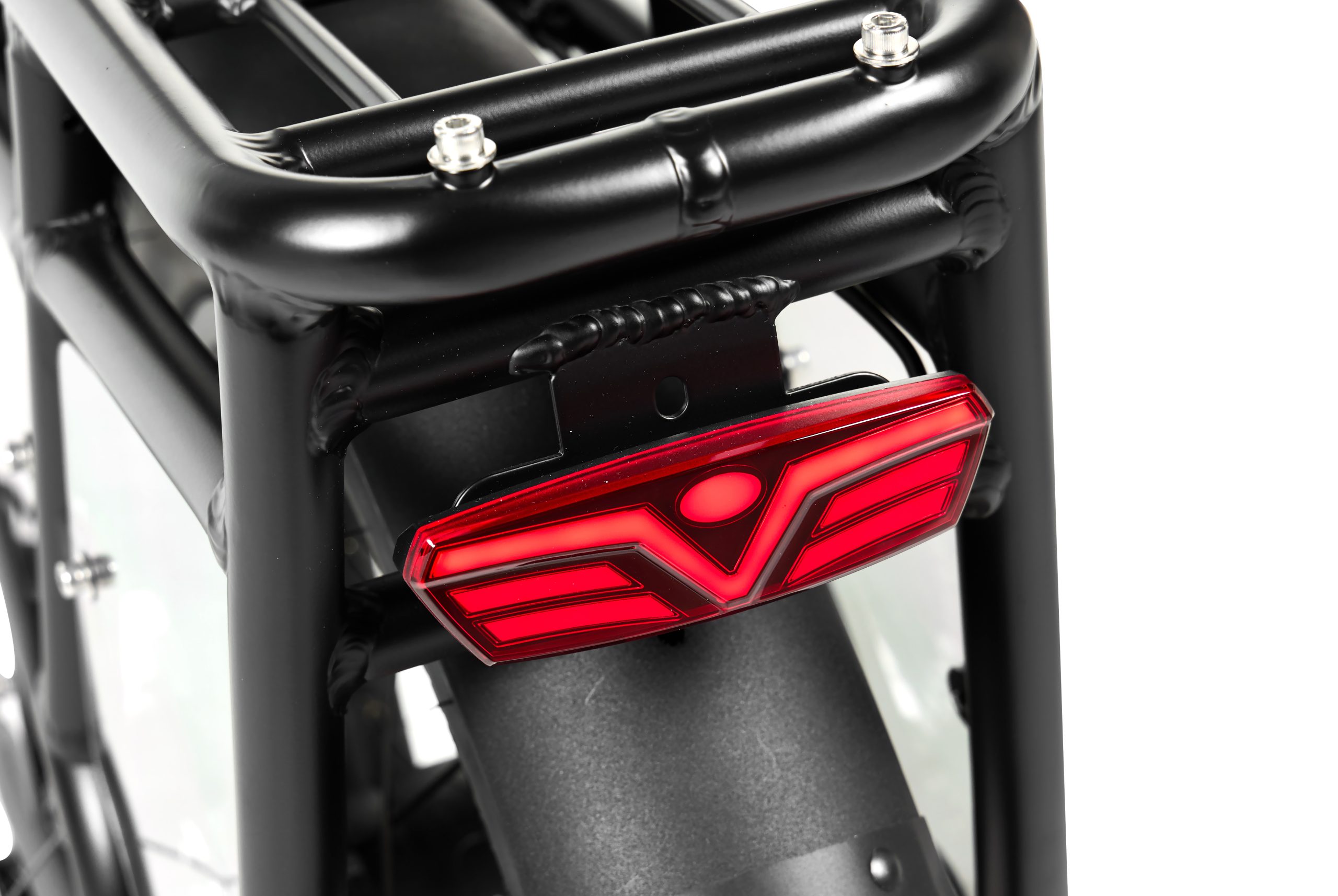

    Taillight Integrated taillight with waterproof disconnect

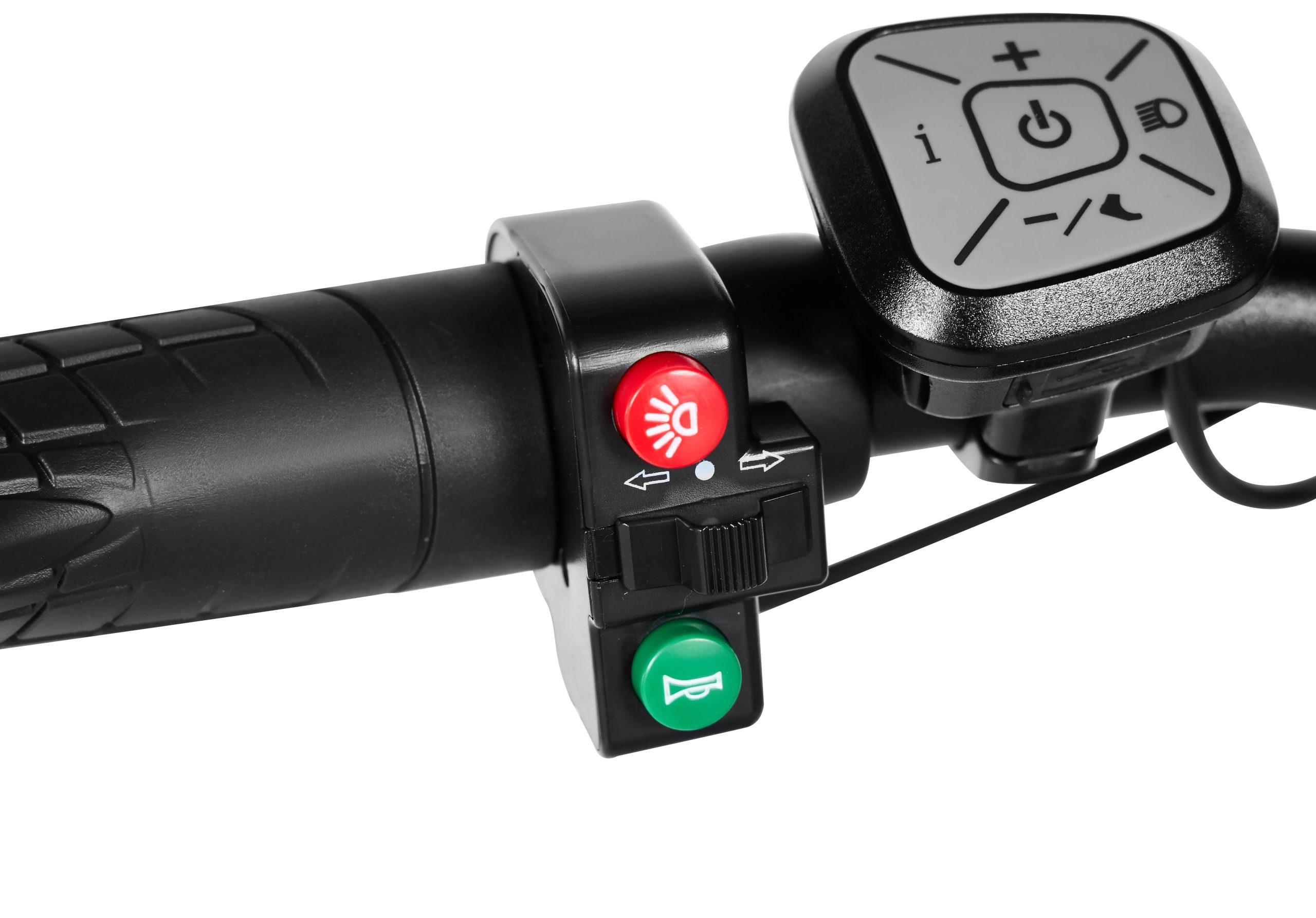

    Bell/Horn Electronic Horn

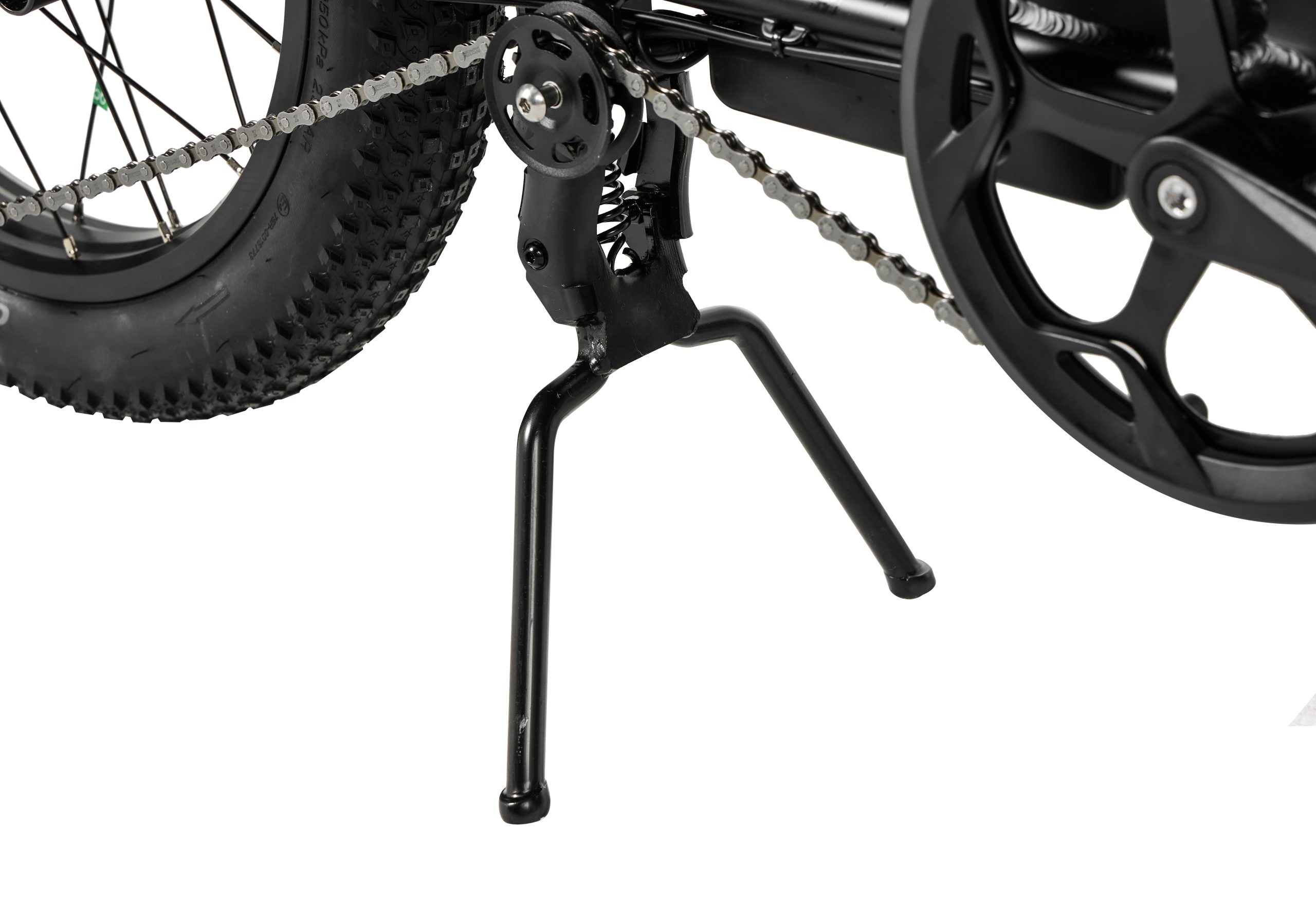

    Additional Equipment Kickstand Heavy-duty aluminium kickstand
    Mudguards/Fenders Front & rear fenders included
    Rear Rack Yes

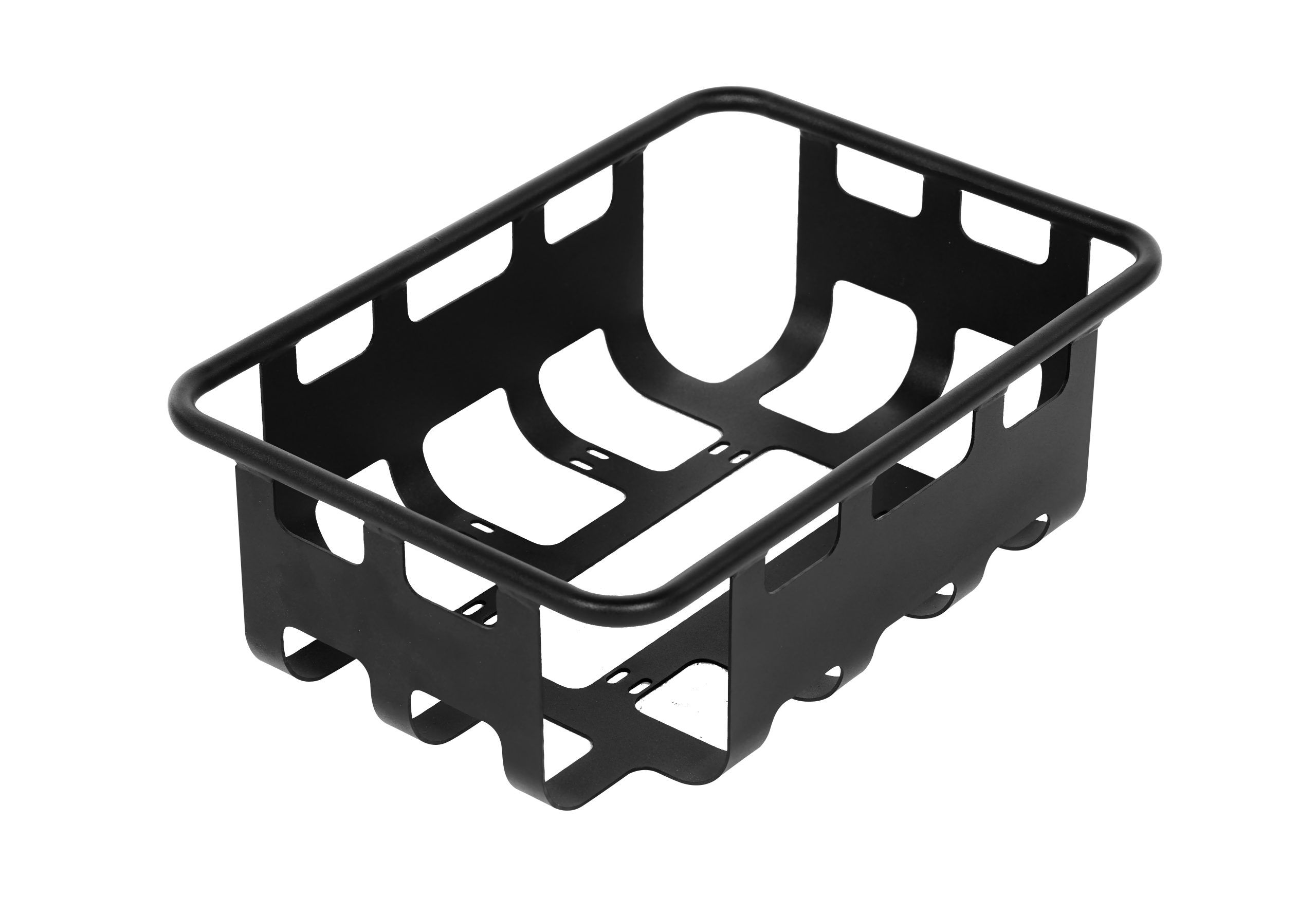

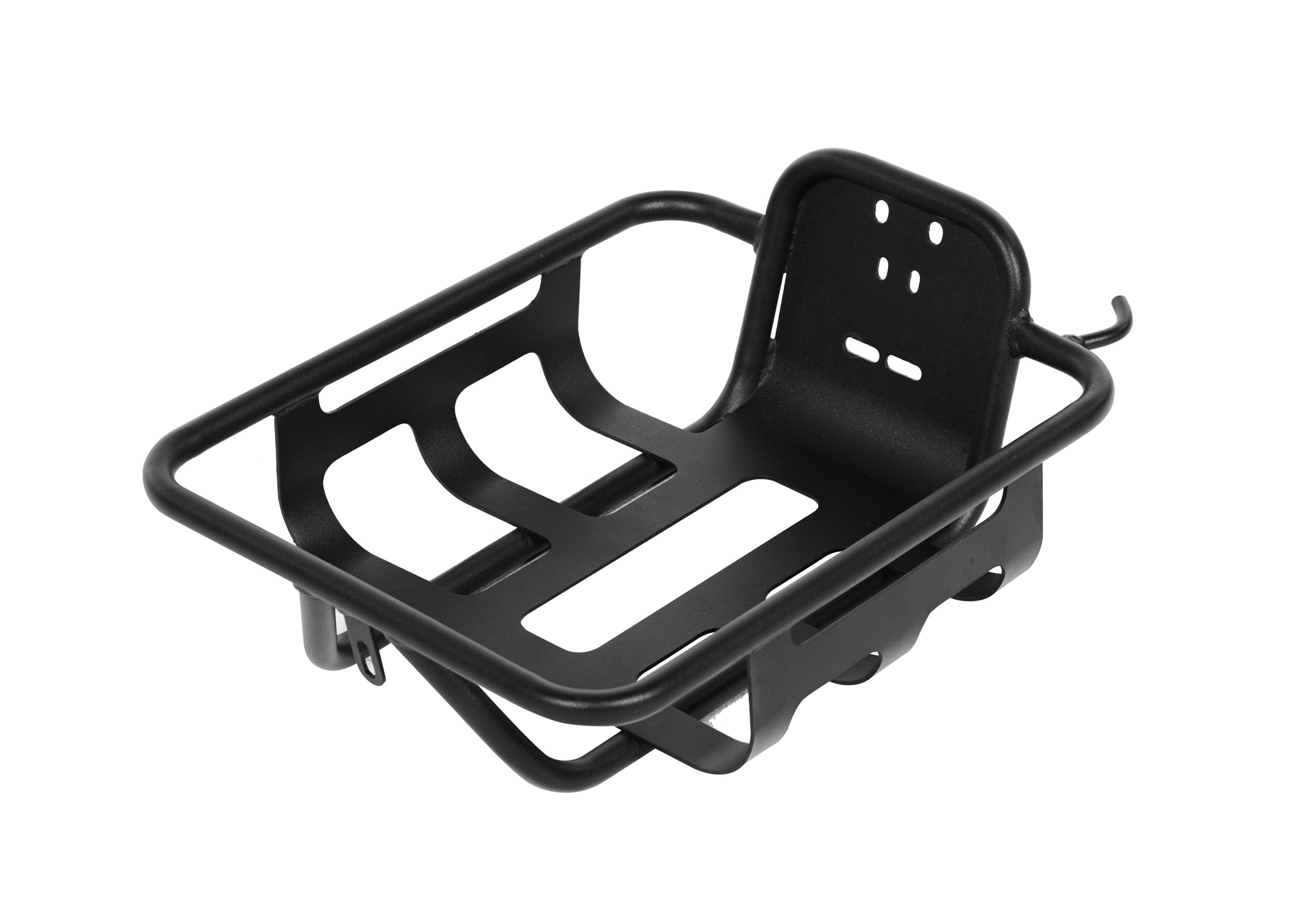

    Front Rack Optional
    Toolkit Included Yes (3× wrench, 1× screwdriver, 5× hex key)
    Certification & Compliance EN 15194 Certified Yes
    Certification CE, EN 15194, UL2271
    Warranty & Support Overall Warranty Period 1 year limited warranty
    Battery Warranty 1 year from original purchase date
    Frame Warranty 2 years
    Assembly & Delivery Assembly Required 90% pre-assembled (front wheel, pedals, handlebar adjustment)
    Assembly Instructions Multilingual manual included
    Packing Dimensions 163 × 28 × 70 cm
