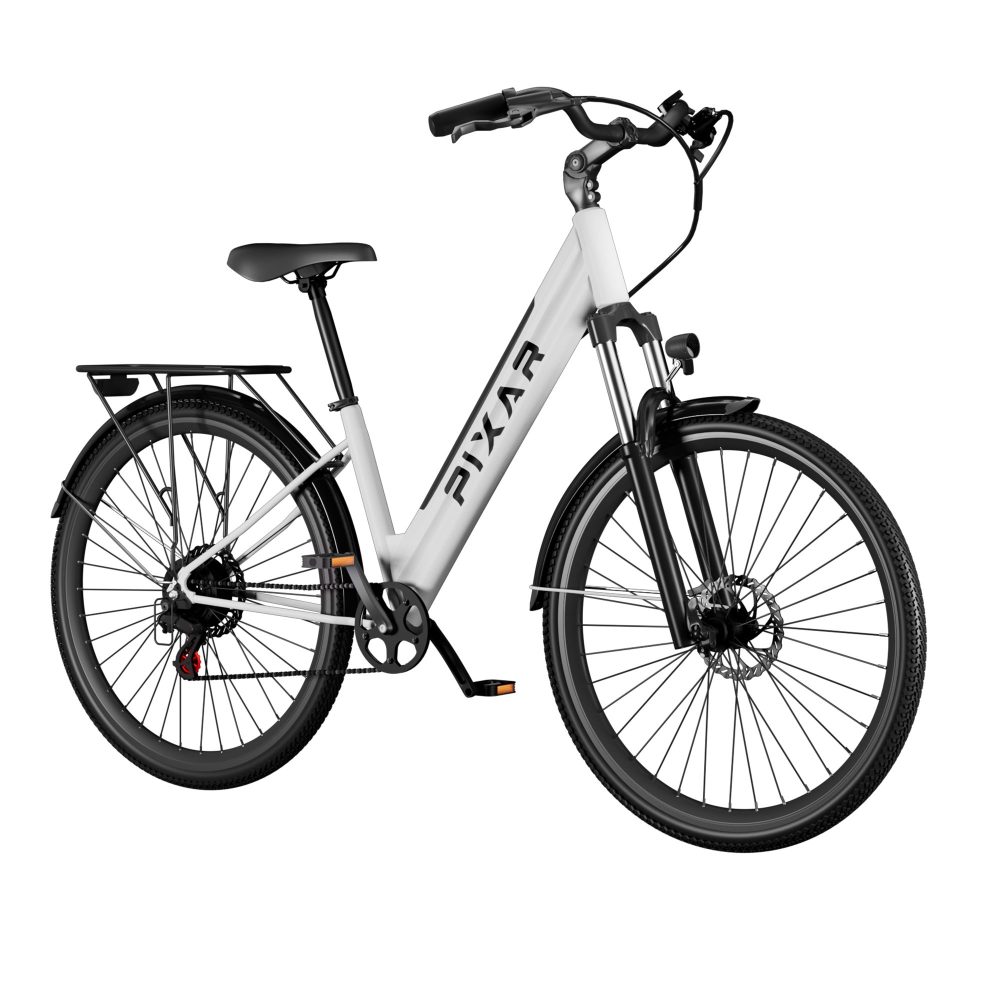

Pixar Cruiser Electric Bike is designed for city explorers who want comfort, elegance, and power in one package. Its sleek low-step frame makes it easy to hop on—even in dresses or casual wear. Whether you’re commuting, shopping, or just riding for fun, this e-bike brings joy to every trip.
Key Features
- Powerful 250 W motor: The BAFANG outer rotor BLDC motor offers a smooth and efficient ride, with 5 levels of pedal assist (PAS) to suit your mood and terrain.
- 460Wh Samsung battery: A 36 V, 12.8 Ah Samsung 21700 battery gives you excellent range and energy density. Its quick-release design makes it easy to remove and charge. It is IP65 water resistant for reliable performance in varied weather.
- Long range performance: Under ideal conditions, you can reach up to 120 km using low PAS levels. Even at higher assist settings, you still get decent distance for your trip. (Note: actual range depends on rider weight, terrain, temperature, etc.)
- Mechanical disc brakes: Reliable stopping power from front and rear mechanical disc brakes keeps you safe in all conditions.
- 7-speed Shimano gears: Tackle hills and flats with ease using the 7-speed gearing system.
- Comfort and design: With a sturdy alloy frame (1000 MPa die-casting), rustproofing via electrophoretic treatment, low frame design, and front suspension, the Cruiser is stable, durable, and easy to ride.
- Rider information at a glance: The built-in LCD display (IPX6 waterproof) shows speed, battery, power, mileage, and more.
- Safety features: Reflectors, sturdy tires, rear taillight, and puncture-resistant construction help keep you safe and confident on the road.
Range by PAS Level
Here’s a guide to approximate range and average speed at each PAS level (based on an 80 kg rider on flat roads at 33 °C):
- PAS-1: ~10 km/h, range up to 120 km
- PAS-2: ~14 km/h, range ~98 km
- PAS-3: ~18 km/h, range ~74 km
- PAS-4: ~22 km/h, range ~62 km
- PAS-5: ~25 km/h, range ~56 km
Specifications
| Specification | Details |
|---|---|
| Pedal-Assist Range | Up to 120+ km |
| Electric-Only Range | ~58 km |
| Top Speed | 25 km/h |
| Dimensions (L × W × H) | 183 × 66 × 122 cm |
| Maximum Load | 250 kg |
| Net Weight (Bike) | 29 kg |
| Torque | 45 N·m |
| Battery | Samsung 36 V 12.8 Ah, IP65, CE certified |
| Battery Charging Time | 4–5 hours |
| Battery Weight | 3.5 kg |
| Frame | High-strength alloy, low-step, electrophoretic rustproofing |
| Front Suspension | Adjustable shock absorbers, 100 mm travel |
| Handlebar | Riser handlebar, grip length 104 mm, total 66 cm |
| Pedals | 9/16″ with reflectors |
| Chain & Crankset | 1/2″ × 3/32″ × 118L chain, 170 mm crank arms, 48T chainring |
| Motor Output | 250 W peak rear hub brushless motor |
| Pas Levels | 0 to 5 |
| Throttle | Half-twist (optional thumb throttle) |
| Freewheel & Gears | Shimano 7-speed, 14-28T |
| Charger | 2A smart charger, UL certified |
| Rims & Tires | 27.5″ alloy rims, 36H, CST 27.5″ × 2″ tires |
| Brakes & Rotors | Front & rear mechanical disc brakes, 180 mm rotors |
| Kickstand | Heavy-duty aluminum kickstand |
| Geometry (various) | Seat height range: 73 cm max, 51 cm min Top tube: 61 cm Handlebar height: 122 cm overall Wheelbase: 110 cm Chain stay: 46 cm Rear rack: 36″ length |
Why Choose the Pixar Cruiser?
The Pixar Cruiser is your perfect city companion. It balances strength, comfort, style, and performance. Its low-step frame suits riders of all heights and mobility levels. The BAFANG motor and Samsung battery give you confidence to ride far. Safety features like disc brakes and reflectors add peace of mind. Plus, the sleek design means you don’t have to choose between fashion and function.
Tips for Best Use
- Start with lower PAS levels on flat terrain to maximize range.
- Use higher PAS or throttle assist on hills or when carrying heavier loads.
- Keep your battery charged and avoid full depletion to prolong lifespan.
- Check tire pressure regularly (e.g. 45 psi) and keep disc brakes aligned for safe stops.
- If riding in light rain, the IP65 rating protects your battery but avoid heavy downpours.
Ready to ride the city in style? The Pixar Cruiser Electric Bike brings you power, elegance, and fun—ride the wind every day!
